Serial Connectivity

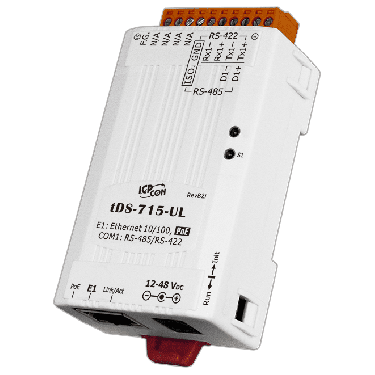

● Incorporates any RS-422/485 serial device in Ethernet
● Application Modes: Virtual COM, TCP Server, TCP Client
● VxComm Utility supports 32/64-bit Windows 7/8/10/11/
● Supports pair-connection serial-bridge, serial-tunnel
● Supports UDP responder for device discovery (UDP Search)
● UL certification
● Allows automatic RS-485 direction control

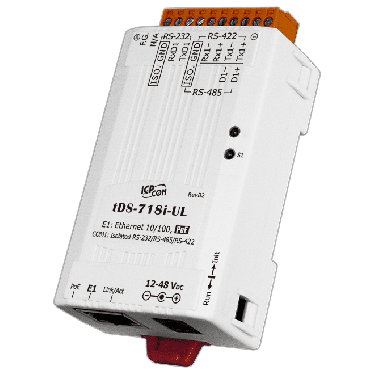

● Incorporates any RS-232/422/485 serial device in Ethernet
● Application Modes: Virtual COM, TCP Server, TCP Client
● VxComm Utility supports 32/64-bit Windows 7/8/10/11
● Supports pair-connection serial-bridge, serial-tunnel
● Supports UDP responder for device discovery (UDP Search)
● UL certification
● Allows automatic RS-485 direction control

● Incorporates any RS-232/485 serial device in Ethernet
● Application Modes: Virtual COM, TCP Server, TCP Client
● VxComm Utility supports 32/64-bit Windows 7/8/10/11/2012/2016
● Max. connections : 1 socket per serial port is suggested
● Supports pair-connection (serial-bridge, serial-tunnel) applications
● Supports UDP responder for device discovery (UDP Search)
● Tiny Web server for configuration (HTTP)
● Allows automatic RS-485 direction control

● Incorporates any RS-232/485 serial device in Ethernet
● Application Modes: Virtual COM, TCP Server, TCP Client
● VxComm Utility supports 32/64-bit Windows 7/8/10/11/2012/2016
● Max. connections : 1 socket per serial port is suggested
● Supports pair-connection (serial-bridge, serial-tunnel) applications
● Supports UDP responder for device discovery (UDP Search)
● Tiny Web server for configuration (HTTP)
● Allows automatic RS-485 direction control

Tiny Modbus/TCP to RTU/ASCII gateway with PoE and 2 RS-232 and 1 485 Ports

● Cost-effective Modbus/TCP to RTU/ASCII Gateway
● Supports Modbus/TCP master and slave
● Supports Modbus RTU/ASCII master and slave
● Contains a 32-bit MCU that efficiently handles network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
● Allows automatic RS-485 direction control
● Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
● Supports UDP responder for device discovery
● Allows easy firmware update via the Ethernet
● Contains a tiny Built-in Web server for configuration
● Terminal block connector for easy wiring
● Tiny form-factor and low power consumption
● RoHS compliant with no Halogen
● Made from fire retardant materials (UL94-V0 Level)

Tiny Modbus/TCP to RTU/ASCII gateway with PoE and 1 RS-232 and 1 485 Ports

● Cost-effective Modbus/TCP to RTU/ASCII Gateway
● Supports Modbus/TCP master and slave
● Supports Modbus RTU/ASCII master and slave
● Contains a 32-bit MCU that efficiently handles network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
● Allows automatic RS-485 direction control
● Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
● Supports UDP responder for device discovery
● Allows easy firmware update via the Ethernet
● Contains a tiny Built-in Web server for configuration
● Terminal block connector for easy wiring
● Tiny form-factor and low power consumption
● RoHS compliant with no Halogen
● Made from fire retardant materials (UL94-V0 Level)

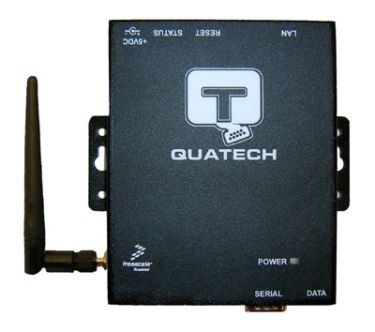

2 Port RS-232/422/485 Wireless Device Server with DB-9M ports

● Network-enable RS-232 and RS-232/422/485 serial devices for wireless access and control
● Supports 64-bit and 128-bit WEP and WPA (TKIP/MIC) privacy protocols
● Embedded 802.11b/g wireless radio featuring Conexant® Prism™ 3 Chipset
● High-gain, 2.2 dBi omni-directional antenna included; third-party antennas can be used for even higher gain
● Excellent sensitivity and dynamically shifting 11, 5.5, 2, 1 and 54 Mbps speeds
● Remote Web browser-based configuration, administration and troubleshooting
● Serial Tunneling mode for connecting two serial devices over a wireless network without a PC
● Surge suppression package available for serial port
● "5V" models provide standard surge suppression and 5V power at pin 9 of the serial port
● Virtual COM drivers for Windows® NT4/2000/XP/7 & Linux®, socket modes support other O/S
● Raw TCP, Raw UDP, UDP Multicast and IntelliSock™ TCP socket services for custom applications
● Configure as TCP Server, TCP Client, or as both using the Quatech-exclusive AutoTCP feature

2 port RS-232 Industrial Wireless Device Server with DB-9M ports

● Network-enable RS-232 and RS-232/422/485 serial devices for wireless access and control
● Supports 64-bit and 128-bit WEP and WPA (TKIP/MIC) privacy protocols
● Embedded 802.11b/g wireless radio featuring Conexant® Prism™ 3 Chipset
● High-gain, 2.2 dBi omni-directional antenna included; third-party antennas can be used for even higher gain
● Excellent sensitivity and dynamically shifting 11, 5.5, 2, 1 and 54 Mbps speeds
● Remote Web browser-based configuration, administration and troubleshooting
● Serial Tunneling mode for connecting two serial devices over a wireless network without a PC
● Surge suppression package available for serial port
● "5V" models provide standard surge suppression and 5V power at pin 9 of the serial port
● Virtual COM drivers for Windows® NT4/2000/XP/7 & Linux®, socket modes support other O/S
● Raw TCP, Raw UDP, UDP Multicast and IntelliSock™ TCP socket services for custom applications
● Configure as TCP Server, TCP Client, or as both using the Quatech-exclusive AutoTCP feature

1 port RS-232 Industrial Wireless Device Server

● Network-enable RS-232 and RS-232/422/485 serial devices for wireless access and control
● Supports 64-bit and 128-bit WEP and WPA (TKIP/MIC) privacy protocols
● Embedded 802.11b/g wireless radio featuring Conexant® Prism™ 3 Chipset
● High-gain, 2.2 dBi omni-directional antenna included; third-party antennas can be used for even higher gain
● Excellent sensitivity and dynamically shifting 11, 5.5, 2, 1 and 54 Mbps speeds
● Remote Web browser-based configuration, administration and troubleshooting
● Serial Tunneling mode for connecting two serial devices over a wireless network without a PC
● Surge suppression package available for serial port
● "5V" models provide standard surge suppression and 5V power at pin 9 of the serial port
● Virtual COM drivers for Windows® NT4/2000/XP/7 & Linux®, socket modes support other O/S
● Raw TCP, Raw UDP, UDP Multicast and IntelliSock™ TCP socket services for custom applications
● Configure as TCP Server, TCP Client, or as both using the Quatech-exclusive AutoTCP feature

4 port RS232 PCI serial board with enhanced surge suppression (requires quadcable)

● 4 x RS-232 ports with DB-9M quad cable
● Speeds up to 921.6 kbps
● Universal PCI connector compatible with 3.3 V and 5 V
● OS support Windows 95/98/Me/ NT/2000/XP/Vista/7 & Linux

4 port RS232 Embedded USB 2.0 serial adapter with DB9M ports

● RoHS Compliant and USB 2.0 Compatible
● 4 independent ports
● USB to RS232
● Device enumerates itself as standard port(s)
● Full modem control and hardware and software flow control (RS232)
● Full-duplex or half-duplex modes (RS232)
● Bus powered, no external power required
● Windows 2000/XP/7 and Linux support available
● Surge suppression standard

1 port RS-232/422/485, Bluetooth serial adapter

● Selectable as Slave or Master mode
● Up to 300 ft. range
● 15 KV ESD surge protection and built-in terminal resistor
● Bluetooth v2.0 EDR compliant
● Bluetooth Class 1

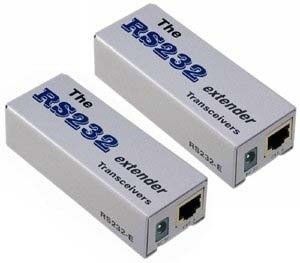

Serial RS-232 Extender over CAT 5

● Compatible with all RS-232 serial products
● Full-duplex data communication
● Sends RS-232 data at 230 kbps up to 1000m
● Real time data transfer with zero software conflicts
● 9 VDC Power Adapter included
● Transfer data or files between PCs and equipment
● One CAT-5 cable extension

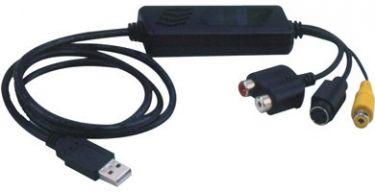

USB2.0 Video and Audio grabber

● Audio and video through USB 2.0 bus for audio/video
● Synchronous and superior performance
● High speed USB 2.0 data transfer rate for superior A/V recording
● Encoding AVI/MPEG1/MPEG2/MPEG 4 format directly, ideal formats for video application
● Up to 25 fps motion capture capability at 720x576 (PAL)
● 30 fps at 720x480 (NTSC)
● Snapshot function
● Composite, S-Video analog input, NTSC, PAL and SECAM multi system support
● Recording period setup and schedule recording
● Support brightness, contrast, hue, saturation, sharpness control
● Powerful video editing functions include: - motion video special effects - title effects - picture-in-picture effects - slow & fast motion video effects - background music - color background - transitional effects
● Simple & easy direct burning function for video to DVD making
● Plug & play
● Low power consumption

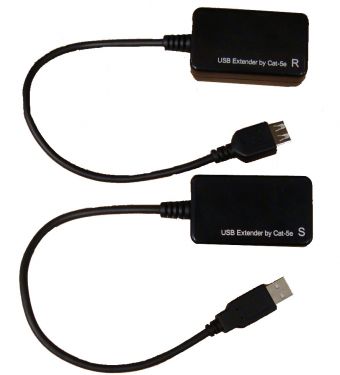

USB Extender over CAT 5

● USB 1.0 based, compatible with USB 2.0

1 port RS-232/422/485 Serial Device Server (DB9)

● Board-only, OEM solution
● Easy integration and configuration. PowerPC® microprocessor drives high throughput and industry's lowest latency
● Network enable RS-232 serial devices for remote access and control
● Remote Web browser-based configuration, administration and troubleshooting
● Auto-detecting 10/100 Mbps Ethernet with built-in TCP/IP
● Raw TCP and IntelliSock™ TCP socket services for custom applications
● Configure as TCP Server, TCP Client, or as both using the exclusive AutoTCP feature
● Serial Tunneling mode for connecting two serial devices over a network without a PC
● 1 or 2 independent RS-232 serial ports
● DB-9 models available
● Surge suppression package standard
● Virtual COM drivers for Windows Windows NT4/2000/XP/Vista/7 & Linux, other OS support via socket modes
● External device servers (wired and wireless) also available

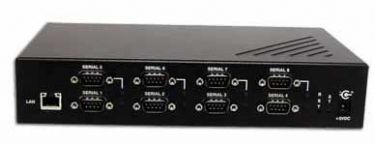

8 port RS-232 Serial Device Server (DB9)

● Board-only, OEM solution
● Easy integration and configuration. PowerPC® microprocessor drives high throughput and industry's lowest latency
● Network enable RS-232 serial devices for remote access and control
● Remote Web browser-based configuration, administration and troubleshooting
● Auto-detecting 10/100 Mbps Ethernet with built-in TCP/IP
● Raw TCP and IntelliSock™ TCP socket services for custom applications
● Configure as TCP Server, TCP Client, or as both using the exclusive AutoTCP feature
● Serial Tunneling mode for connecting two serial devices over a network without a PC
● 1 or 2 independent RS-232 serial ports
● DB-9 models available
● Surge suppression package standard
● Virtual COM drivers for Windows Windows NT4/2000/XP/Vista/7 & Linux, other OS support via socket modes
● External device servers (wired and wireless) also available

1 port RS-232 Serial Device Server (DB9)

● Board-only, OEM solution
● Easy integration and configuration. PowerPC® microprocessor drives high throughput and industry's lowest latency
● Network enable RS-232 serial devices for remote access and control
● Remote Web browser-based configuration, administration and troubleshooting
● Auto-detecting 10/100 Mbps Ethernet with built-in TCP/IP
● Raw TCP and IntelliSock™ TCP socket services for custom applications
● Configure as TCP Server, TCP Client, or as both using the exclusive AutoTCP feature
● Serial Tunneling mode for connecting two serial devices over a network without a PC
● 1 or 2 independent RS-232 serial ports
● DB-9 models available
● Surge suppression package standard
● Virtual COM drivers for Windows Windows NT4/2000/XP/Vista/7 & Linux, other OS support via socket modes
● External device servers (wired and wireless) also available

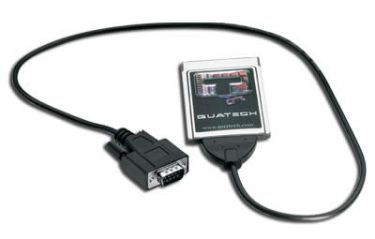

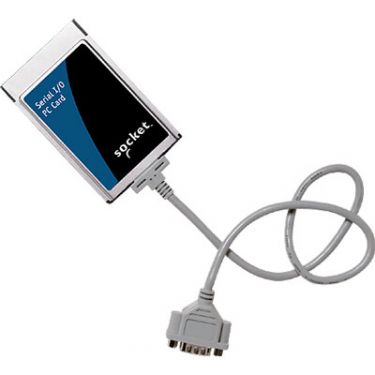

High speed PC Card (PCMCIA) with one RS-232 port (Standard)

● Easily add one, two or four RS-232 ports to a wide variety of mobile computers
● Connect to a wide range of serial devices, such as GPS receivers, bar code scanners, satellite phones, monitoring and control systems, lab equipment, diagnostic tools, printers, writers for court reporting, and much more
● Works with handheld, tablet and notebook running: Windows Mobile 2003, 2003SE, 5.0, Windows CE 2.11 or greater, Windows 95**, 98SE, 2000, XP, XP Tablet, Vista, 7
● Available in CompactFlash (CF) and PC Card (PCMCIA) form factors
● Industry standard DB-9 connectors
● “Ruggedized” cables are permanently attached to the card with a molded strain relief to protect against vibration, survive lateral stress and seal out dust and moisture
● Removable cable option for single and dualport cards
● 16550 compatible UARTs for internal data buffering 16550 compatible UARTs for internal data buffering
● Hardware flow control, Plug & Play and hot swapping support
● Works in both 3.3V and 5V systems
● Supports systems using multiple processors, including Intel® Core™ Duo
● Socket HIS-3 chip enables low power operation so you can use it longer on battery power
● Simultaneous use and separate configuration of each RS-232 port for multiple port cards
● One-year warranty for plug-in card and ruggedized cables. 90-day warranty for removable cables

Tiny Modbus/TCP to RTU/ASCII gateway with PoE and 1 RS-232/422/485 Port

● Cost-effective Modbus/TCP to RTU/ASCII Gateway
● Supports Modbus/TCP master and slave
● Supports Modbus RTU/ASCII master and slave
● Contains a 32-bit MCU that efficiently handles network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
● Allows automatic RS-485 direction control
● Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocols
● Supports UDP responder for device discovery
● Allows easy firmware update via the Ethernet
● Contains a tiny Built-in Web server for configuration
● Terminal block connector for easy wiring
● Tiny form-factor and low power consumption
● RoHS compliant with no Halogen
● Made from fire retardant materials (UL94-V0 Level)
