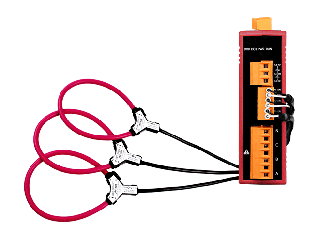

ICPDAS - Three-phase Smart Power Meter
Levertijd:
2~7 dagen
SKU
PM-3133 series
3 Phases Smart Power Meter
● Support multiple communication interface
RS-485 (Modbus RTU)
Ethernet (Modbus TCP)
CAN bus (CANopen)
● Bi-directional kWh metering function for accurate measurement of power consumption and generation data
● Compact in size and easy to install, suitable for various industrial sites
● Available with CT for accurate metering, accuracy better than 0.5% (PF=1)
● Clip-on CT for easy installation
ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3133 series that gives you access to real-time electric usage for three-phase power measurement. With its high accuracy (<0.5%, PF=1 ), the PM-3133 series can be applied to both low voltage primary side and/ or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 400 A). It operates over a wide input voltages range 10 ~ 500 VAC which allows worldwide compatibility. And with 2 channels relay outputs, it can be linked with sirens or lightings for alarm messages. It also supports Modbus RTU, Modbus TCP or CANopen protocols for easy integration.
ICPDAS introduces the PM-3133 series, a cutting-edge solution for real-time three-phase power measurement. With exceptional accuracy (<0.5%, PF=1), these Smart Power Meters cater to both low voltage primary and medium/high voltage secondary applications, providing reliable energy consumption data in real time.
Compact and cost-effective, the PM-3133 series features revolutionary wired clip-on CT technology, supporting input currents up to 400 A. Operating over a wide input voltage range of 10 ~ 500 VAC, these meters ensure compatibility worldwide. With 2-channel relay outputs, they seamlessly integrate with sirens or lighting systems for alarm notifications.
Furthermore, the PM-3133 series supports Modbus RTU, Modbus TCP, or CANopen protocols, enabling easy integration into existing systems. Experience the power of precision and versatility with the PM-3133 series Smart Power Meters from ICPDAS.
PM-3133-100 - Modbus RTU, 3-phase power meter; includes 60A CT (Inside diameter 10 mm; wire lead 1.8 m) x 3
PM-3133-160 - Modbus RTU, 3-phase power meter; includes 100A CT (Inside diameter 16 mm; wire lead 1.8 m) x 3
PM-3133-240 - Modbus RTU, 3-phase power meter; includes 200A CT (Inside diameter 24 mm; wire lead 1.8 m) x 3
PM-3133-400-L080 - Modbus RTU, 3-phase power meter; includes 400A CT (Inside diameter 36 mm; wire lead 8 m) x 3
PM-3133-100P - Modbus RTU, 3-phase power meter; includes 60A CT (Inside diameter 10 mm; wire lead 4 m) x 3
PM-3133-160P - Modbus RTU, 3-phase power meter; includes 100A CT (Inside diameter 16 mm; wire lead 4 m) x 3
PM-3133-240P - Modbus RTU, 3-phase power meter; includes 200A CT (Inside diameter 24 mm; wire lead 4 m) x 3
PM-3133-360P - Modbus RTU, 3-phase power meter; includes 300A CT (Inside diameter 36 mm; wire lead 4 m) x 3
PM-3133-400P - Modbus RTU, 3-phase power meter; includes 400A CT (Inside diameter 36 mm; wire lead 4 m) x 3
PM-3133-100-MTCP - Modbus TCP, 3-phase power meter; includes 60A CT (Inside diameter 10 mm; wire lead 1.8 m) x 3
PM-3133-160-MTCP - Modbus TCP, 3-phase power meter; includes 100A CT (Inside diameter 16 mm; wire lead 1.8 m) x 3
PM-3133-240-MTCP - Modbus TCP, 3-phase power meter; includes 200A CT (Inside diameter 24 mm; wire lead 1.8 m) x 3
PM-3133-100P-MTCP - Modbus TCP, 3-phase power meter; includes 60A CT (Inside diameter 10 mm; wire lead 4 m) x 3
PM-3133-160P-MTCP - Modbus TCP, 3-phase power meter; includes 100A CT (Inside diameter 16 mm; wire lead 4 m) x 3
PM-3133-240P-MTCP - Modbus TCP, 3-phase power meter; includes 200A CT (Inside diameter 24 mm; wire lead 4 m) x 3
PM-3133-360P-MTCP - Modbus TCP, 3-phase power meter; includes 300A CT (Inside diameter 36 mm; wire lead 4 m) x 3
PM-3133-400P-MTCP - Modbus TCP, 3-phase power meter; includes 400A CT (Inside diameter 36 mm; wire lead 4 m) x 3
PM-3133-100-CPS - CANopen, 3-phase power meter; includes 60A CT (Inside diameter 10 mm; wire lead 1.8 m) x 3
PM-3133-160-CPS - CANopen, 3-phase power meter; includes 100A CT (Inside diameter 16 mm; wire lead 1.8 m) x 3
PM-3133-240-CPS - CANopen, 3-phase power meter; includes 200A CT (Inside diameter 24 mm; wire lead 1.8 m) x 3
PM-3133-360P-CPS - CANopen, 3-phase power meter; includes 300A CT (Inside diameter 36 mm; wire lead 4 m) x 3
PM-3133-400P-CPS- CANopen, 3-phase power meter; includes 400A CT (Inside diameter 36 mm; wire lead 4 m) x 3
Meer informatie
Art.nr.
PM-3133 series
Fabrikant
ICPDAS
Land van herkomst
Taiwan
