Single-phase Smart Power Meter
● Support multiple communication interface
RS-485 (Modbus RTU)
Ethernet (Modbus TCP)
CAN bus (CANopen)
● Bi-directional kWh metering function for accurate measurement of power consumption and generation data
● Compact in size and easy to install, suitable for various industrial sites
● Available with CT for accurate metering, accuracy better than 0.5% (PF=1)
● Clip-on CT for easy installation
ICPDAS introduces the PM-3000 series, the ultimate solution for real-time single-phase power measurement. With exceptional accuracy (<1%, PF=1), these Smart Power Meters cater to both low voltage primary and medium/high voltage secondary applications, providing users with reliable energy consumption data in real time.
Compact and cost-effective, the PM-3000 series features revolutionary wired clip-on CT technology, supporting input currents up to 200 A. Operating over a wide input voltage range of 10 ~ 300 VAC, these meters ensure compatibility worldwide. With 2-channel relay outputs, they can be seamlessly integrated with sirens or lighting systems for alarm notifications.
Furthermore, the PM-3000 series supports Modbus RTU, Modbus TCP, or CAN bus protocols, enabling easy integration into existing systems. Experience the power of precision and versatility with the PM-3000 series Smart Power Meters from ICPDAS.
RS-485 Interface
PM-3112-100P CR Modbus RTU, 2 loops single-phase Power Meter; includes 60A CT (Inside diameter 10 mm; wire lead 4 m) x 2
PM-3112-160P CR Modbus RTU, 2 loops single-phase Power Meter; includes 100A CT (Inside diameter 16 mm; wire lead 4 m) x 2
PM-3112-240P CR Modbus RTU, 2 loops single-phase Power Meter; includes 200A CT (Inside diameter 24 mm; wire lead 4 m) x 2

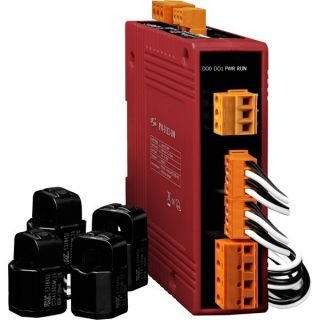

PM-3114-100P CR Modbus RTU, 4 loops single-phase Power Meter; includes 60A CT (Inside diameter 10 mm; wire lead 4 m) x 4
PM-3114-160P CR Modbus RTU, 4 loops single-phase Power Meter; includes 100A CT (Inside diameter 16 mm; wire lead 4 m) x 4
PM-3114-240P CR Modbus RTU, 4 loops single-phase Power Meter; includes 200A CT (Inside diameter 24 mm; wire lead 4 m) x 4
Ethernet Interface
PM-3112-100P-MTCP CR Modbus TCP, 2 loops single-phase Power Meter; includes 60A CT (Inside diameter 10 mm; wire lead 4 m) x 2
PM-3112-160P-MTCP CR Modbus TCP, 2 loops single-phase Power Meter; includes 100A CT (Inside diameter 16 mm; wire lead 4 m) x 2
PM-3112-240P-MTCP CR Modbus TCP, 2 loops single-phase Power Meter; includes 200A CT (Inside diameter 24 mm; wire lead 4 m) x 2
PM-3114-100P-MTCP CR Modbus TCP, 4 loops single-phase Power Meter; includes 60A CT (Inside diameter 10 mm; wire lead 4 m) x 4
PM-3114-160P-MTCP CR Modbus TCP, 4 loops single-phase Power Meter; includes 100A CT (Inside diameter 16 mm; wire lead 4 m) x 4
PM-3114-240P-MTCP CR Modbus TCP, 4 loops single-phase Power Meter; includes 200A CT (Inside diameter 24 mm; wire lead 4 m) x 4
CANopen Interface
PM-3112-100P-CPS CR CANopen, 2 loops single-phase Power Meter; includes 60A CT (Inside diameter 10 mm; wire lead 4 m) x 2
PM-3112-160P-CPS CR CANopen, 2 loops single-phase Power Meter; includes 100A CT (Inside diameter 16 mm; wire lead 4 m) x 2
PM-3112-240P-CPS CR CANopen, 2 loops single-phase Power Meter; includes 200A CT (Inside diameter 24 mm; wire lead 4 m) x 2
PM-3114-100P-CPS CR CANopen, 4 loops single-phase Power Meter; includes 60A CT (Inside diameter 10 mm; wire lead 4 m) x 4
PM-3114-160P-CPS CR CANopen, 4 loops single-phase Power Meter; includes 100A CT (Inside diameter 16 mm; wire lead 4 m) x 4
PM-3114-240P-CPS CR CANopen, 4 loops single-phase Power Meter; includes 200A CT (Inside diameter 24 mm; wire lead 4 m) x 4
