Industrial USB Hubs

Industrial USB Hubs
Hubport offers a simple solution for adding switched Universal Serial Bus (USB) ports to a PC, server or thin client. This external, user installable solution plugs into an existing USB port to provide four or seven additional USB 2.0 ports in a compact chassis for instant peripheral device connectivity. The switched USB architecture guarantees maximum performance on all ports simultaneously. Hubport is available in AC powered and DC powered models.
Desc
per pagina

3 producten

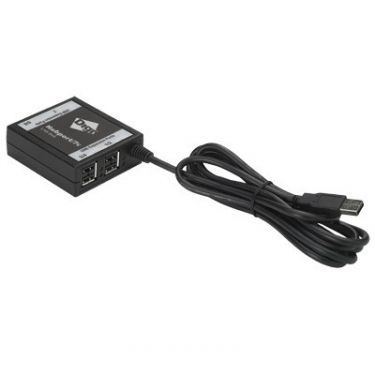

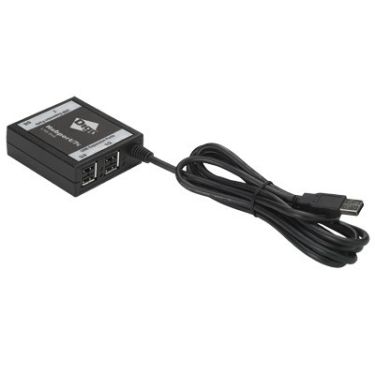

  1. Hubport/7c - 7-port switched USB 2.0 hub

    7-port switched USB 2.0 hub

    ● 7-port USB 2.0 hub
    ● Compact form factor
    ● Ships with plug-mounted 120/230VAC 60/50 Hz at 5VDC @ 3Amps max
    ● 500 mA downstream power available per port
    ● No additional IRQ or memory address requirements
    ● Individual port power management
    ● Multi-TT architecture guarantees 12 Mbps simultaneously on each downstream port



  2. USB Audio Device

    USB Audio Device



    ● USB 1.1, 12MHz full speed, fully compliant with USB 2.0 specification
    ● 16-Bit Delta-Sigma ADC and DAC
    ● Driving Headphone and Passive Speaker Directly
    ● Built-in Condenser Microphone Bias
    ● Volume and Mute Control
    ● Auto switching USB/external power
    ● DIN-Rail Mountable

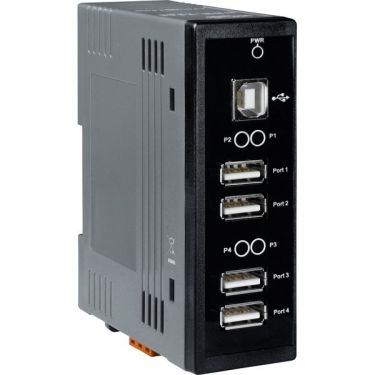

  3. 4-Port Industrial USB 2.0 Hub

    4-Port Industrial USB 2.0 Hub

    ● Compliant with USB Specification Revision 2.0
    ● Built-in NEC uPD720114 USB 2.0 Hub Controller
    ● Provides 4 Downstream Ports
    ● Supports High-speed (480 Mbps) and Full-speed (12 Mbps)
    ● Only Supports Self-powered Mode
    +12 ~ 48 VDC Power Input (power adapter included for USB-2560/S)
    ● Supports Downstream Port Status with LED
    ● DIN-Rail Mountable
