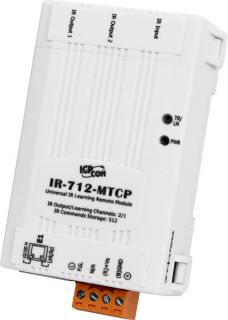

ICPDAS IR-712-MTCP
Universal IR Learning Remote Module (MBTCP, 2 IR outputs, 512 IR Cmds) with 2 CA-IR-SH2251 (RoHS)
● 2 IR output channels for controlling multiple devices
● 1 IR learning input
● IR command storage: 512
● Supports IR carrier frequencies: 33、36、37、38、40 and 56 kHz
● Supports Ethernet interface
● Supports Modbus TCP/UDP protocol
● Provides IR transmitting/learning and power indication LEDs
● Built-in Watchdog
● RoHS Compliance
IR-712-MTCP is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. IR-712-MTCP supplies 2 IR output channels for individual or simultaneous control on multiple devices.
The accompanied Ethernet interface with Modbus TCP/UDP protocol provides flexible expansion and control on the modules.
Besides, the IR utility provides easy configuration, learning, test and storage of IR commands.
As a replacement of IR remote controls and a module that can be easily integrated with Modbus client devices (e.g. PAC, PLC, PC… etc.), IR-712-MTCP is well-suited for smart home and building automation.
| IR output channels | 2 channels with 3.5 mm audio jack |
| IR learning input | 1 channel. Supports 6 IR carrier frequencies: 32.768, 36, 37.037, 38, 40, 56 kHz. |
2 LEDs: TR/LN (IR Transmitting/Learning) and PWR (Power)
|
Connector
|
4-pin (F.G., N/A, +Vs, and GND) screw terminal connecter
|
|
|
Power Supply
|
+10 ~ +30 VDC
|
|
|
Power Consumption
|
Stand By | 1.7 W |
| Using 1 IR output | 3.4 W | |
|
Using 2 IR Outputs
|
5.8 W (Max.) | |
| Dimensions (w x h x d) | 52 mm x 93 mm x 27 mm |
| Installation | DIN-Rail mounting |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10~ 95%, non-condensing |
