ICS VXI Blank Board 115250
Levertijd:
3~4 weken
SKU
115250
VXI C-size Bare Board
● C-size Board for mounting devices, modules or circuits. Builds a C-size VXIbus module.
● Connection Pads for all VXI voltages and signals. All signals for any use.
● Includes pad patterns for front panel connectors, LEDs and a Reset Switch. Easy front panel access when needed.
● CAD Design aids for Schematic Capture, PC board layout and front panel machining. Speeds up your design.
● Optional VXI Hardware Shield Kits to fabricate a complete module. Builds 1, 2 and 3-slot wide kits.

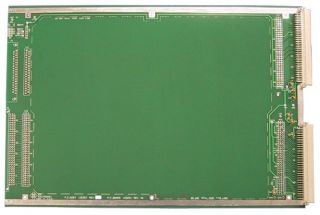

ICS VXI Blank Board 115250 is a blank C-size Board for mounting various devices in a VXI module format. It includes the P1 and P2 connectors, filtering capacitors and power pads for all of the VXIbus voltages. Pads are als provided for all of the VXIbus signals. This makes it easy to mount, connect and power all types of devices in a C-size module.
Meer informatie
Art.nr.
115250
Fabrikant
ICS Electronics
Grootte
233.3 x 342.5 x 1.59mm (H x W x T)
Power
| Power Consumption | None |
Included Accessories
| Each 115250 Bare Board Assembly includes the P1 and P2 connectors and power filtering capacators. |
| Documentation includes PCB schematic, PCB layout and a suggested front panel machining drawing if the front edge cnnectors and/or LEDs are installed. |
| An optional 3.5 inch disk with an ORCAD schematic template and CAD design files for the 115250 Bare Board. The files are in ORCAD and Autocad .dxf file formats. |
