Modbus RTU Controllers

LAN to Modbus Interface Module

● VXI-11.3 Compatible. Works with virtually any computer or test language.
● Converts simple ASCII commands into Modbus RTU packets. Relieves user from having to generate and check RTU packets.
● Expanded Modbus RTU Command Set includes Floating Point commands. Controls a wider range of Modbus devices.
● Provides both single-ended RS-232 and balanced RS-422/RS-485 serial signals. Connects to single devices and Modbus networks.
● Internal webserver for changing network and serial settings. Easy setup from any computer.
● Includes ICS's VXI-11 keyboard program. The easy way to test Modbus commands and devices without writing a program.
● Includes prototype HMTL control pages for Watlow F4 and EZ Zone Controllers. Starter web pages for OEM product control.

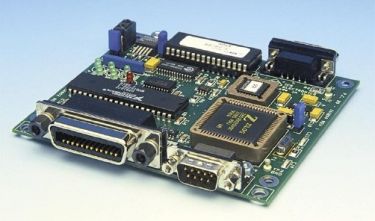

GPIB <-> RS-422/RS-485 Modbus Interface Board

● Converts simple ASCII commands into Modbus RTU messages. Relieve user from having to generate and check RTU packets.
● Expanded Modbus RTU Command Set includes Floating Point commands. Controls a wider range of Modbus devices.
● Provides GPIB and RS-232 to RS-422/RS-485 data paths for Modbus RTU devices. Use GPIB or RS-232 to control RS-485 Modbus devices.
● IEEE-488.2 Compliant. Meets latest GPIB Standards.
● Saves GPIB address, serial settings and user IDN message in non-volatile memory. Personalize the 4829A as part of your system.
● Runs on 5 to 15 VDC. Uses available DC power.
● Mounts directly to host chassis' rear panel. Easy installation eliminates extra cables and reduces cost.

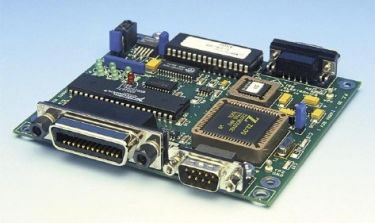

OEM GPIB <-> RS-232 Modbus Interface Board

● Converts simple ASCII commands into Modbus RTU messages. Relieves user from having to generate and check RTU packets.
● Expanded Modbus RTU Command Set now includes Floating Point commands. Controls a wider range of Modbus devices.
● Provides GPIB-to-RS-232 and RS-232-to-RS-232 data paths to Modbus device. Use GPIB or RS-232 to control the Modbus device.
● IEEE-488.2 Compliant. Meets latest GPIB Standards.
● Saves GPIB address, serial settings and user IDN message in non-volatile memory. Personalize the 4819 as part of your system.
● Mounts directly to host chassis' rear panel. Easy installation eliminates extra cables and reduces cost.
● Operates on 5 to 15 Volts. Runs on any power supply.

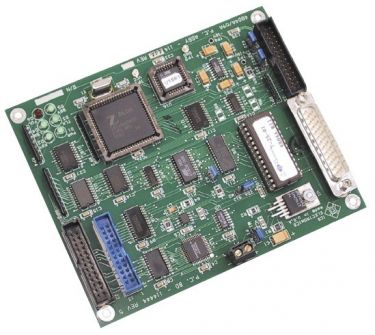

GPIB to Modbus RTU Interface Board

● Converts simple ASCII commands into Modbus RTU messages. Relieves user from having to generate and check RTU packets.
● Expanded Modbus RTU Command Set now includes Floating Point commands. Controls a wider range of Modbus devices.
● Provides both single ended RS-232 and balanced RS-422/RS-485 serial signals. Connects to single and multiple Modbus devices.
● GPIB Interface is IEEE-488.2 Compliant. Meets latest GPIB Standards.
● Saves GPIB address, serial settings and user IDN message in non-volatile memory. Personalize the 4809 as part of your system.
● Diagnostic LEDs show address and status. Visual indication of operation and test status.
● Operates on +5 to 15 Volt power. Uses existing power supplies in most cases.

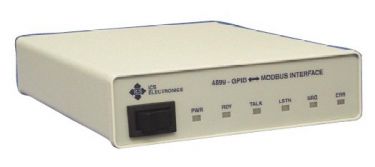

GPIB to Modbus RTU Interface

● Converts simple ASCII commands into Modbus RTU messages. Relieves user from having to generate and check RTU packets.
● Expanded Modbus RTU Command Set now includes Floating Point commands. Controls a wider range of Modbus devices.
● Provides both singe ended RS-232 and balanced RS-422/RS-485 serial signals. Connects to single and multiple Modbus devices.
● GPIB Interface is IEEE-488.2 Compliant. Meets latest GPIB Standards.
● Saves GPIB address and serial interface settings in nonvolatile memory. Configures unit without having to remove the cover.
● Front panel LEDs show address and status. Visual indication of operation and test status.
● Small 1 U high, metal box design has CE approval. Rugged case with full EMI/RFI protection.
