● VXI-11.3 Compatible. Works with virtually any computer or test language. ● User-definable, 48-bit parallel interface with bit, byte or multi-byte data transfers. Fully configurable to the user's needs. ● High-current drivers and input pullup resistors. Drives more devices over longer lines and inputs CMOS signals or switch contacts. ● Device configuration, user's IDN message and network settings stored in Flash memory. Easily setup and change the configuration. ● Lock feature prevents loss of configuration settings. Protects your digital IO configuration. ● Configurable with a web browser, with a windows configuration program or RPC. Easy network configuration from any computer. ● Includes ICS's VXI-11 keyboard program. The easy way to test IO configurations before writing a test program.

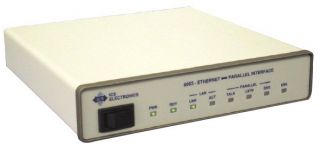

ICS Ethernet-to-Digital Interface Box 8063 provides a user configurable, 48 line parallel interface. Connects to any TCP/IP 10/100 MHz network as an VXI-11.3 device and is easily controlled from any computer or operating system. An internal Web Server lets the user change the network settings from any web browser. Use ICS's VXI-11 Keyboard Controller program for instant control from a PC without writing a program. The ICS Ethernet-to-Digital Interface Box 8063 is command and interface compatible with ICS's 4863 GPIB and 2363 Serial-to-Digital Miniboxes™.
All VXI-11.3 functions including device read, write, local, remote, clear, trigger, readstb, lock and unlock.
RPC Protocol
Conforms to ONC RPC v2, VXI-11
Ethernet Interface
Type
IEEE 802.3 compliant
Speeds
10BaseT (10 Mb/s)
100BaseT (100 Mb/s)
IP Address
Static or DHCP
Factory setting
192.168.0.254 static
Interface name
any [inst0], [inst1]
Internal Webserver
Capabilities
Provides the following HTML 4.01 compatible web pages:
Welcome
Configuration
Confirmation
Reboot
404, 500 and 501 Error pages
SCPI Capabilities
Incorporates the SCPI Command Tree. Complies with SCPI v1994.0
LXI Compatability
The 8063 generally conforts to the LXI 1.1 Specification for Class C instruments and operates in systems with LXI Instruments. It does not self generate IP addresses. The 8063's VXI-11.3 and IEEE-488.2 conformance exceeds LXI requirements.
Controls and Indicators
INDICATORS
PWR
Indicates power on
LAN
Unit connected to an active LAN
ACT
Transferring message to/from the network
RDY
Unit has passed self test
TALK
Unit asked to send data
LSTN
Unit sent a command or data
SRQ
Device Service Request asserted
ERR
Blinks for a soft V|XI-11 error and On for command errors
CONTROLS
Power
Front panel switch
LAN Rst
Rear panel push-button that resets the network settings.
Digital Lines
Signal Characteristics
The 8063's paralle I/O signals have the following electrical characteristics. All time delays listed here are maximums, all pulse widths are minimums.
Lines
48 Digital I/O, 2 Status Lines
Input Logic Levels
High = > +2.0 V @ ±10 μA
Low = <0.8 V @ 250 μA
with 33 KΩ pullup to +5 Vdc for sensing contacts.
Max High = 5.5 V
Input Timing
External Data Inhibit line SETS within 1 μs of the active edge of the EDR Input signal and resets after data is loaded. Data loading time for 6 BCD/HEX characters is 0.15 ms (typ.) after the 8063 has been sent a read request.
Output Logic Levels
High = >3 V with 3 mA source
High =>2 V with 24 mA source
Low = 0.0 to +0.55 Vdc, 48 mA sink
Output Timing
Data is transferred to the output 2 to 3 ms after receipt of a message depending upon data transfer mode and command.
Pulse
10-30000 ms., 50 ms default.
Data Stb
Output pulse width, 5 μs
Trigger
Output pulse width, 5 μs
Remote
Output level asserted when in the remote state
Clear
Output pulse width, 30 μs when 8063 reset.
Reset
Output pulse widt, 2 ms when 8063 power turned on.
Stable
Output level asserted after I/O lines are configured, approximately 3.7 sec after power turn-on.
Grootte
1185.2 x 38.6 x 189.2mm
Mechanical
Construction
Lead Free
Connectors and Headers
Digital I/O
62-pin female, metal DC shell connector with lock studs
LEDs
8-pin male header
Ethernet
RJ-45
Omgeving
Operation Temperature
-10 °C to +70 °C
Storage Temperature
-20 °C to +85 °C
Humidity
0-90% RH without condensation
Power
9 to 32 Vdc @ 3 VA
Approvals
EEC Standards EN 61000-6-4:2001,
EN 61000-6-2:2001, EN 55024:2003,
and EN 55022:2003.
Included Accessories
Instruction Manual
Mating Connector and Hood
LAN Crossover Cable
CD-ROM with VCI-11 Keyboard Controller program and Configuration Utility
