LAN & LXI Interfaces

LAN & LXI InterfacesLees meer

ICS's LAN (Ethernet) Interfaces are all VXI-11.3 compliant and are ideal for the following operating systems:

LINUX, UNIX, SunOS, Apple OS X, HP-UX, IBM-AIX and Windows 2K or later Windows systems.

ICS's Ethernet Interfaces use the RPC and the VXI-11 protocols for secure communication with virtually any computer. Other features include IEEE-488.2 compliance, SCPI command sets, internal WebServers and compatibility with LXI instruments.

6 artikel(en)

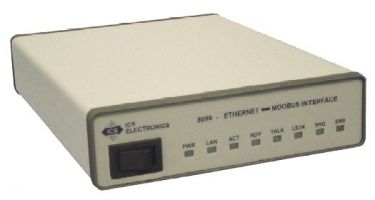

LAN to Modbus Interface Module

● VXI-11.3 Compatible. Works with virtually any computer or test language.
● Converts simple ASCII commands into Modbus RTU packets. Relieves user from having to generate and check RTU packets.
● Expanded Modbus RTU Command Set includes Floating Point commands. Controls a wider range of Modbus devices.
● Provides both single-ended RS-232 and balanced RS-422/RS-485 serial signals. Connects to single devices and Modbus networks.
● Internal webserver for changing network and serial settings. Easy setup from any computer.
Includes ICS's VXI-11 keyboard program. The easy way to test Modbus commands and devices without writing a program.
Includes prototype HMTL control pages for Watlow F4 and EZ Zone Controllers. Starter web pages for OEM product control.

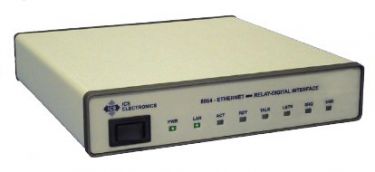

Ethernet to Relay Interface

● VXI-11.3 Compatible. Works with virtually any computer or test language.
● Multiple configurations: 16 low-level SPST relays, 16 hi-power SPST relays, 16 relay drivers. Choose the correct contact or driver for your application.
● Multiple relay programming modes: individual relays or single or multi-pole scanning. Flexible relay programming.
● Isolated digital inputs accept contact closures, CMOS/TTL, and up to 32 V inputs. Eliminates ground loops.
● IEEE-488.2 compatible unit uses SCPI commands. Meets the latest test system specifications.
● Configurable with a web browser, with a windows configuration program or RPC. Easy network configuration from any computer.
● Includes ICS's VXI-11 keyboard program. The easy way to test relay connections before writing a test program.

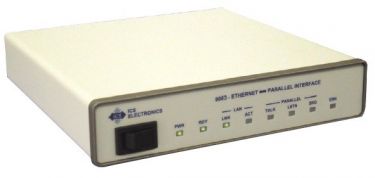

Ethernet-to-Digital Interface Box

● VXI-11.3 Compatible. Works with virtually any computer or test language.
● User-definable, 48-bit parallel interface with bit, byte or multi-byte data transfers. Fully configurable to the user's needs.
● High-current drivers and input pullup resistors. Drives more devices over longer lines and inputs CMOS signals or switch contacts.
● Device configuration, user's IDN message and network settings stored in Flash memory. Easily setup and change the configuration.
● Lock feature prevents loss of configuration settings. Protects your digital IO configuration.
● Configurable with a web browser, with a windows configuration program or RPC. Easy network configuration from any computer.
● Includes ICS's VXI-11 keyboard program. The easy way to test IO configurations before writing a test program.

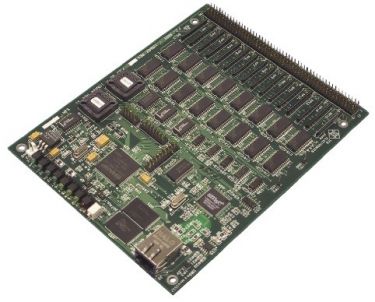

Ethernet-to-Digital Interface Board

● VXI-11.3 Compatible. Works with the newest test systems and any computer.
● Provides a user-definable, 128-line parallel interface with bit, byte, pulse, string and binary data transfer capabilities. Fully configurable to the user's needs.
● Device configuration, user's IDN message and IP address stored in non-volatile Flash memory. User can easily set the power-on configuration.
● Two companion Relay Driver Boards for 5-48 volt relays. Boosts drive signals to control larger relays and solenoids.
● Configurable with a web browser, with a windows configuration program or with RPC calls. Easy network configuration from any computer.
● Includes ICS's interactive VXI-11 keyboard program. Easy control without having to write a program.
● Interchangeable with ICS's 4813 GPIB and 2313 Serial boards. Easy conversion path.

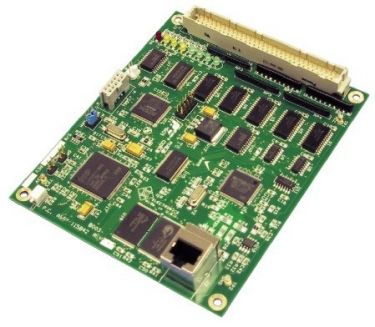

Ethernet-to-Digital Interface Board

● Provides a user-definable, 40-line parallel interface with bit, byte, string and binary data transfer capabilities. Fully configurable to the user's needs.
● Signal monitor feature allows the 8003 to detect signal changes on 15 inputs. Reverse channel capability relieves controller of time consuming polling task.
● High-current drivers and input pullup resistors. Drives more devices, longer lines and inputs CMOS signals or switch contacts.
● VXI-11.3 Compatible. Works with the newest test applications and any computer.
● Device configuration, user's IDN message and IP address stored in nonvolatile Flash memory. User can easily set the power-on configuration.
● Includes ICS's interactive VXI-11 keyboard program. Includes ICS's interactive VXI-11 keyboard program.
● Interchangeable with ICS's 4803 GPIB and 2303 Serial boards. Easy interface conversion.

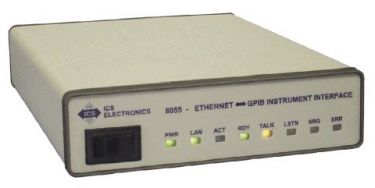

Ethernet-to-GPIB Instrument Interface

● Adds a versatile LAN interface to a GPIB Instrument. Adapts GPIB instruments for VXI-11 or LXI Test Systems.
● Runs from any VXI-11 compliant VISA or SICL library. Supports VEE, LabVIEW, C, and Visual Basic programs on Windows or HP-UX OS.
● Uses RPC calls over a TCP/IP network. Controllable by UNXI,LINUX, SunOS, Apple OS X and similar operating systems.
● Does not require special drivers for each operating system. Eliminates driver problems.
● Reuse existing instruments in Ethernet test systems. Saves instrument replacement costs.
● Configurable with a web browser, with a Windows configuration program or RPC commands. Easy network configuration from any computer.
● Includes ICS's VXI-11 keyboard program. The easy way to test IO configurations before writing a test program.

6 artikel(en)
