GPIB to Digital

GPIB to Parallel Digital Interface Board

● Provides a user-definable, 56-line parallel interface with bit, byte, pulse, string and binary data transfer capabilities. Fully configurable to the user's needs by bus commands.
● High-current drivers and input pullup resistors. Drives more devices, longer lines and inputs CMOS signals or switch contacts.
● Signal monitor feature detects and reports signal changes on 15 inputs. Relieves controller of time consuming polling.
● Device configuration, user's IDN message and bus address stored in Flash. Stored setup eliminates program initialization statements.
● Lock feature prevents accidental loss or change of user configuration. Protects your configuration and IDN message.
● Packaged on 3U VME size card with 4823A pinouts. Can be used to replace 4823A cards in 56 line applications.

GPIB to Parallel Digital Interface Board

● Provides a user-definable, 128-line parallel interface with bit, byte, pulse, string and binary data transfer capabilities. Fully configurable to the user's needs by bus commands.
● High-current drivers and input pullup resistors. Drives more devices, longer lines and inputs CMOS signals or switch contacts.
● Two companion Relay Driver Boards drive 5-48 volt relays. Boosts drive signals to control larger relays and solenoids.
● Companion expansion board adds another 128 I/O lines. Expanded configuration provides 256 I/O lines.
● Device configuration, user's IDN message and bus address stored in Flash. User can easily customize the 4813 configuration as part of his system.
● New Pulse Commands. Extends the 4813 to control latching relays and other pulse applications.

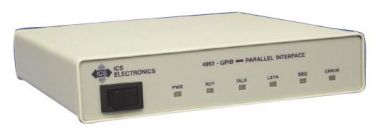

GPIB to Parallel Digital Interface

● Provides a user-definable, 48-line parallel interface with bit, byte, pulse, string and binary
data transfer capabilities. Fully configurable to the user's needs by bus commands.
● Signal monitor feature allows the 4863 to detect signal changes on 15 inputs. Relieves controller of time consuming polling function.
● High-current drivers and input pullup resistors. Drives more devices, longer lines and inputs CMOS signals or switch contacts.
● Device configuration and bus address stored in Flash. Saves your setup values.
● IEEE-488.2 compatible unit uses SCPI commands and Short Form commands. Includes latest GPIB program advances.
● Packaged in small 1U high metal case. Smaller size with EMI/RFI protection.
● Includes a menu-driven configuration program. Steps user through configuration
choices.
