● Controls a LAN instrument from the GPIB bus. Adapts LAN instruments for GPIB Test Systems. ● Runs from any GPIB system. Transparently passes all commands to the companion LAN instrument. ● AutoFind feature simplifies instrument linkage. Eliminates changing IP addresses. ● Internal VXI-11 client talks to any VXI-11.3 instrument. Works with most LAN instruments. ● Aids in replacing failed GPIB instruments. Saves instrument replacement costs and helps reuse existing test software. ● Add newer LAN instruments to GPIB systems. Extends the number of instruments that will work in a GPIB test system. ● Internal HTML server handles 4865 configuration. Easy configuration from any computer or web browser.

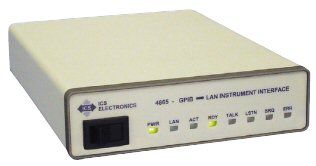

ICS's 4865 is a GPIB-to-LAN Instrument Interface that enables a VXI-11.3 compatible LAN instrument to be controlled from a GPIB Bus. Using the 4865, GPIB applications running on a computer can transparently interface to a LAN-based instrument just as if it were a GPIB Instrument. The 4865 converts 488.1 GPIB commands into the equivalent VXI-11 RPC and sends them to the instrument. Device messages are transparently sent to the instrument and instrument replies are returned to the GPIB Controller, just like a GPIB instrument.
The 4865 solves the problem of how to interface an instrument with an Ethernet interface to the GPIB bus. The 4865 adds a GPIB interface to VXI-11.3 compatible LAN or LXI instruments that do not have a GPIB interface. Applications include replacing obsolete or failed GPIB instruments with a newer instrument that may not have a GPIB interface or just adding a new LAN instrument to a GPIB bus system.
The 488-USB meets IEEE-STD-488.1 with the following capabilities
AH1, SH1, C1, C2, C3, C4, and C9
E2 Drivers incorporate power up/down
protection.
4865 Address
0 to 30 [0]
488 Bus Performance
Long term GPIB transfer rates are limited by the LAN data transfer rate, the Client-computer performance, the GPIB controller and the LAN instrument or device. Internal delays vary with the amount of data transferred and 4865's activity when the message was received.
Short term transfer rates
GPIB to 4865
>20 kbyte/s.
4865 to GPIB
>18 kbytes/s
Internal delays
*IDN? query
46 ms typical
*CLS command
18 ms typical
Supported GPIB (IEEE-488.1) Commands
- Device Clear
- Device Trigger
- Local
- Remote
- Serial Poll
VXI-11 Capabilities
Fully VXI-11.3 compliant
VXI-11.3
Client side
Channel types
Data, Abort and Interrupt
Instrument links
64 max.
Locking
By instrument link
RPC Protocol
Conforms to ONC RPC Version 2
Interface Specifications
Ethernet Interface
Type
IEEE 802.3 compliant
Speeds
10BaseT (10 Mb/s)
100BaseT(100 Mb/s)
IP Address
Static or DHCP (AutoIP)
Factory setting
DHCP with default to
169.254.48.65 if no DHCP server found.
Net Mask
255.255.0.0
Interface name
inst0
Companion Instrument
The 4865 supports single instrument that is VXI-11.3 and IEEE-488.2 compatible.
System Requirements
Computer with an IEEE-488.2 GPIB Controller. Device messages must be terminated with the IEEE-488.2 new line terminator (linefeed with EOI asserted) or with just EOI asserted if the LAN instrument does not require a terminator.
Computer with an IEEE 802.3 LAN interface and a web browser for configuring the 4865.
Internal WebServer
The internal WebServer provides HTML web pages for viewing and setting the 4865's network settings.
Controls and Indicators
Controls
Power
Front-panel switch
LAN Reset
Rear-panel push-button
LEDs
PWR
Power on
LAN
Unit connected to an active network or network device.
ACT
Transferring messages to/from the network.
RDY
Blinks when looking for an instrument. Steady on when linked to an instrument
TALK
4865 is addressed to talk
LSTN
4865 is addressed to listen
SRQ
4865 asserting SRQ on the GPIB bus.
ERR
Unit has detected an error
Grootte
189.2 x 141.5 x 38.6mm (l x w x h)
Connectors and Headers
GPIB
GPIB 24 pin ribbon with metric studs.
Ethernet
RJ-45
Omgeving
Operating Temperature
-10 °C ~ +65 °C
Storage Temperature
-40 °C ~ +70 °C
Humidity
0-90% RH non-condensing
Construction
RoHS Compliant
Shock/Vibration
Normal handling
Power
9 to 32 Vdc @ 4 VA
Included Accessories
Instruction Manual
CD-ROM with support information.
LAN Crossover Cable.
UL/CSA/VDE approved AC power Adapters for Europe - 230±10% Vac, 50/60 Hz
