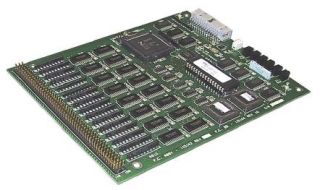

ICS Digital Interface Board 4813

Levertijd:
3~4 weken
SKU
4813

GPIB to Parallel Digital Interface Board

● Provides a user-definable, 128-line parallel interface with bit, byte, pulse, string and binary data transfer capabilities. Fully configurable to the user's needs by bus commands.
● High-current drivers and input pullup resistors. Drives more devices, longer lines and inputs CMOS signals or switch contacts.
● Two companion Relay Driver Boards drive 5-48 volt relays. Boosts drive signals to control larger relays and solenoids.
● Companion expansion board adds another 128 I/O lines. Expanded configuration provides 256 I/O lines.
● Device configuration, user's IDN message and bus address stored in Flash. User can easily customize the 4813 configuration as part of his system.
● New Pulse Commands. Extends the 4813 to control latching relays and other pulse applications.

The Model 4813 GPIB <-> Digital Interface Board is an IEEE-488.2/GPIB to digital interface with 128 I/O lines that can be used to easily adapt devices with a large number of digital signals to the IEEE-488/GPIB/HP-IP bus. In a typical application, the ICS Digital Interface Board 4813 is located inside a device or test chassis and is powered by the device's +5 volt power. All digital signal connections are on a 150-pin connector at one end of the card. A 26-pin header on the other end of the ICS Digital Interface Board 4813 contains the GPIB and address switch input signals. It connects to a companion GPIB Connector/Address Switch Board that mounts on the rear panel of the chassis.



The ICS Digital Interface Board 4813's high-power TTL type signals can easily drive small relays or other logic elements. Applications include controlling switching matrices, displays or large signal arrays. Use with a ICS Digital Interface Board 4813 Relay Driver Board to drive high current or high-voltage relays. An Expansion Board adds an additional 128 lines letting the user control up to 256 I/O lines from the GPIB bus.

Meer informatie
Art.nr.
4813
Fabrikant
ICS Electronics
Land van herkomst
Verenigde Staten
GPIB Capabilities
IEEE 488 Bus Interface
The 4813's 488 Bus interface meets IEEE STD 488.1-1987 and has the following capabilities:
SH1, AH1, T6, L4, SR1, PP0, DC1, RL0, DT1, C0 and E2 drivers.
Address Capability
Primary address range: 0-30.
Dual primary addresses or single primary with secondary addresses 0 and 1 for transparent data transfer.
SRQ Generation SRQs are generated if the unit is not a talker, if SRQs are enabled and if an Enabled Event Status Register bit or if a monitored digital input change occurs. Digital inputs monitored by the Questionable registers.
488.2 Common Commands *CLS, *ESE, *ESE?, *ESR?, *IDN?, *OPC, *OPC?, *RCL, *RST, *SAV, *SRE, *SRE?, *STB, TST? and *WAI
SCPI Commands Used to set and query all programmable functions. The 4813 conforms to SCPI 1994.0 Specification.
Interface Specifications
Signal Characteristics The 4813's parallel I/O signals have the following electrical characteristics. All time delays listed here are maximums, all pulse widths are minimums.
Inputs 128 Digital I/O lines (256 lines with expansion Bd), 2 Status and Reset Inputs
Input Logic Levels
High = > +2.0 V @ ±10 μA
Low = <0.8 V @ 250 μA
with 33 KΩ pullup to +5 VDC for sensing contacts.
Max high input = 5.5 V
Input Timing External Data Inhibit line SETS within 1 μs of the active edge of the EDR Input signal and resets after data is loaded. Data loading time for 6 BCD/HEX characters is 0.15 ms (typ.) after the 4813 has been addressed as a Talker
Output Logic Levels
High = >3 V with 3 mA source
High =>2 V with 24 mA source
Low = 0.0 to +0.55 Vdc, 48 mA sink
Output Timing Data is transferred to the output 0.6 to 8 ms after receipt of a terminator depending upon transfer method and command.
Pulse Widt
10 to 30000 ms in 10 ms steps
50 ms default
Data Stb Output pulse width, 2-5 μs
Trigger Output pulse width, 5 μs
Remote Output level asserted when in the remote state
Reset Output pulse width, 270 μs for when 4813 reset.
Reset Inputs The 4813 is reset by a low going pulse on the External Reset input line or by pressing a miniature push-button on front edge of the 4813's PCB.
Controls and Indicators
Diagnostic Indicators Six on board LEDs
PWR On when power applied
RDY On when self test passed
TALK On when addressed to talk
LSTN On when addressed to listen
SRQ On when asserting SRQ line
ERR On when ESR error bits set
Grootte
178 x 140 x 9mm (l x w x h)
Connectors and Headers
GPIB/Addr 26-pin 3M 2526 male connector
Digital I/O 150-pin, 3 row male connector
Omgeving
Operation Temperature -10 °C ~ +70 °C
Storage Temperature -20 °C ~ +85 °C
Humidity 0-90% RH without condensation
Power

+5 Vdc @ 440 mA (typical)

880 mA for Expansion Board Kit
Included Accessories

Instruction Manual

Support CD with sample programs
J3 Mating Power Plug
