GPIB Controllers

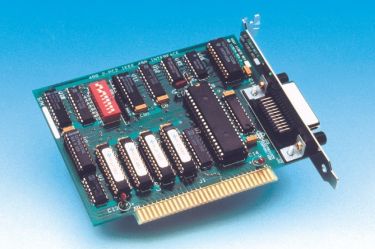

ISA Bus-to-GPIB Controller Card for PC

● Converts any ISA bus PC into a GPIB Controller. Works in virtually all PCs.
● Fast data transfer rate >300 kbytes/second. Fast throughput.
● DLLs for Windows 3.1, 95, and 98 programs support 16 and 32 bit applications. 488.2 support for all MS Windows programming languages.
● IEEE 488.2 linkable libraries for Quick Basic, MS Visual Basic for DOS, Borland C/C++ and Microsoft C/C++. 488.2 support for the most popular DOS languages.
● Includes Interactive Keyboard programs fr driving GPIB devices. Let's you try out commands and control instruments without writing a program.
● Functions as System Controller, Controller-in-charge or as a GPIB device. Use the GPIB bus to transfer data to other PCs.
● Replaces most generic ISA 7210 cards and PC2a cards. Use with existing programs.

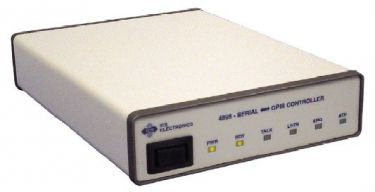

Serial to GPIB Bus Controller

● Adds full GPIB Bus controller capability to any computer with a serial port. Easiest way to add GPIB bus control capability to a serial port.
● Automatic DMA provides high speed GPIB data transfer >600 K bytes/sec. Fast GPIB-to-Serial buffer.
● Uses HP BASIC style commands to control instruments. The worlds most familiar GPIB/HP-IB control language.
● Includes IEEE 488.2 Command Protocols. Simplifies GPIB programs.
● Includes National Instruments CT command set. Can be used to replace or upgrade CT controllers.
● Reverse G mode converts the 4895 into a GPIB-to-Serial interface. Two functions in one unit.
● Includes ICS's interactive M95_kybd Control Program. Control instruments without having to write a program.

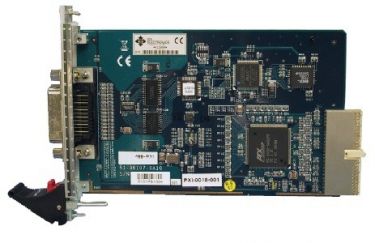

Hi-speed GPIB Controller Card for PXI Chassis

● Adds GPIB Controller capability to any PXI chassis. Control GPIB devices from your PXI or cPCI chassis.
● High 1 MHz data transfer rate. Reduces test time.
● 32-bit WIN 2K/XP/Vista/7 Compatible Drivers with NI 488.2 style commands. Runs LabVIEW, VEE, LabWindows/CVI and all major test programs.
● Multi-controller capable driver. Run any mix of PCI, PXI or USB GPIB Controllers.
● Includes ICS's new Explorer program. Find, confi gure and control instruments without writing a program.
● Includes GPIB AnyWhere. Lets you control your GPIB devices from a remote computer or over the Internet.

Ethernet-to-GPIB Gateway

● Remote control of GPIB instruments via the Internet or in-house network. Control GPIB and HP-IB Devices anywhere there is a network connection.
● Runs from any VXI-11 compliant VISA library. Use VEE, LabVIEW, C, and Visual Basic programs with VISA or SICL calls.
● Easily controlled by RPC calls over TCP/IP. Adds GPIB Controller capability to Unix, Linux, SunOS and similar operating systems.
● Does not require special drivers for each operating system. Eliminates driver problems.
● Includes ICS's VXI-11. Keyboard Controller program for interactive control of GPIB devices. Lets you control instruments without writing a program.
● Handles multiple clients. Shares equipment among multiple users.
● Internal WebServer with network setup pages. Change network settings with any web browser.

USB-to-GPIB Controller Module for PCs

● Converts any PC with a USB port into a GPIB Controller. USB1.1 and USB2.0 compatible.
● Fast >1 Mbytes/second data transfer rate. Reduces test time.
● 32-bit WIN 2K/XP/Vista/7 Compatible Drivers with NI 488.2 style commands. Vista and .NET ready now.
● Multi-controller driver. Mix up to 16 PCI, PXI or USB GPIB Controllers.
● Includes ICS's new Explorer program. Find, configure and control instruments in one program.
● Includes GPIB AnyWhere. Lets you control your GPIB devices from a remote computer or over the Internet.
● Works with NI and Agilent VISA libraries. Supports all major test programs.

Hi-speed GPIB Controller Card for PCI Bus Computers

● Converts any PC with a PCI bus into a GPIB Controller
● Fast > 1 MHz data transfer rate. Reduces test time.
● 488.2V4 Driver supports 32 and 64-bit Windows XP, Vista and Windows 7with a true 64-bit DLL.
● Compatible with industry standard 'ib' and '488.2' command sets
● Includes short bracket for lo-profile chassis
● Works with Agilent, NI and Kikisui VISA libraries.
● ICS's Explorer auto configures your controller as it finds your instruments.
● Program with Visual Basic, C, LabVIEW, Matlab or Agilent VEE
● Most affordable PCI-GPIB controller with a GPIB-32.dll.

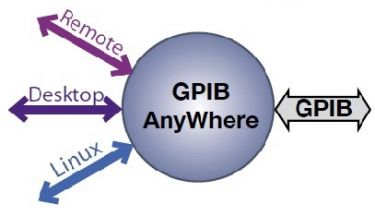

Remote Control Software for GPIB Instruments

● Remote control of GPIB instruments via the Internet or over in-house network. Control GPIB and HP-IB devices from anywhere.
● Gives Unix/Linux users control of a WIN32 PC and GPIB Controller. Inexpensive GPIB bus Access for Unix/Linux users.
● Debug test programs on production hardware. Work from your desk rather than in production.
● Compatible with most VISAs. Supports VEE, LabVIEW and all programs that can make VISA calls.
● RPC over TCP/IP capable communication. Unit/Linux tools can easily communication through RPC.
● Includes ICS's VXI-11 Keyboard program for interactive control of GPIB devices. Lets you try out commands and verify instrument control using the VXI-11 Service.
