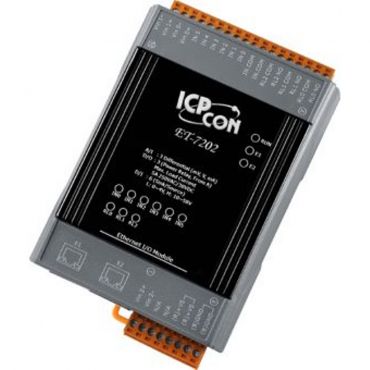

ICPDAS POE Ethernet I/O Module PET-7202

Levertijd:
2~7 dagen
SKU
PET-7202

PoE Ethernet I/O Module with 2-port Ethernet Switch and 3 Analog In, 6 channel Digital In and 3 Relays

● Built-in Web Server
● Web HMI
● Support for both Modbus TCP and Modbus UDP Protocols
● Communication Security
● 2-port Ethernet Switch for Daisy-Chain Topology
● Power over Ethernet
● Dual Watchdog
● Wide Operating Temperature Range: -25 ~ +75°C
● I/O Pair Connection
● Built-in I/O
● Analog In: 3 Channels with 240 Vrms Overvoltage Protection
● Digital In / Counter: 6 Channels
● Power Relay: 3 Channels



Brochure EN

The PET-7202 is a multi-function PoE Ethernet module with 3-channel analog input, 6-channel digital input and 3-channel relay output. It provides various programmable analog inputs (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input can be programmed to accept current or voltage as input/output depending upon the position of corresponding jumper.

The PET-7202 is fully RoHScompliant and has qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation..

Meer informatie
Art.nr.
PET-7202
Fabrikant
ICPDAS
Software
Built-In Web Server Yes
Web HMI Yes
I/O Pair Connection Yes
Communication
Ethernet Port 10/100 Base-TX with Auto MDI/MDI-X
Protocol Modbus/TCP, Modbus/UDP
Security ID, Password and IP Filter
Dual Watchdog Yes, Module (0.8 seconds), Communication (Programmable)
Analog Input
Input Channels 3 (Differential)
Input Type ±150 mV,±500 mV, ±1V, ±5 V, ±10 V + 0 mA ~ + 20 mA, ±20 mA, 4 ~ 20 mA (jumper selectable)
Resolution
Normal Mode 16-bit
Fast Mode 12-bit
Sampling Rate
Normal Mode 10 Samples/Sec. (Total)
Fast Mode 60 Samples/Sec. (Total)
Accuracy
Normal Mode ±0.1%
Fast Mode ±0.5% or better
Zero Drift ±20 μV/°C
Span Drift ±25 ppm/°C
Individual Channel Configuration Yes
Overvoltage Protection 240 Vrms
Over Current Protection Yes
Input Impedance
Voltage 2 MΩ
Current 124 Ω
Common Mode Rejection 86 dB Min.
Normal Mode Rejection 100 dB
Digital Input/Counter
Input Channels 6
Type Wet Contact (Sink, Source)
On Voltage Level +10 VDC ~ +50 VDC
Off Voltage Level +4 VDC max.
Input Impedance 10 KΩ, 0.5 W
Counters
Max. Count 4,294,967,285 (32 bits)
Max. Input Frequency 100 Hz
Min. Pulse Width 5 ms
Overvoltage Protection +50 VDC
Power Relay
Input Channels 3
Type Power Relay, Form A (SPST N.O.)
Operating Voltage Range 250 VAC/30 VDC
Max. Load Current 5.0 A/channel at 25 °C
Operate Time 6 ms (Typical)
Release Time 3 ms (Typical)
Electrical Life (Resistive load)
VDE: 5 A@250 VAC 30,000 ops (10 ops/minute) at 75°C
5 A@30VDC 70,000 ops (10 ops/minute) at 75°C
UL: 5 A@ 250 VAC/30 VDC 6,000 ops
3 A@250 VAC/30 VDC 100,000 ops
Mechanical Life 20,000,000 ops. at no load (300 ops./minute)
Intra-module Isolation, Field to Logic 3750 VDC
Power-on Value Yes, Programmable
Safe Value Yes, Programmable
2-Way Isolation
Ethernet 1500 VDC
I/O 2500 VDC
EMS Protection
ESD (IEC 61000-4-2) 4 kV Contact for each terminal and 8 kV Air for random point
EFT (IEC 61000-4-4) ±4 kV for Power
Surge (IEC 61000-4-5) ±4 kV for Power
LED Indicators
L1 System Running
L2 Ethernet Link/Act
L3 Ethernet 10/100 M Speed
Power
Reverse Polarity Protection Yes
Powered from Terminal Block Yes, 12 ~ 48 VDC
Powered from PoE Yes, IEEE 802.3af, Class 1
Consumption 4.1 W
Mechanical
Dimensions (w x l x h) 72 x 123 x 35mm
Installation DIN-Rail or Wall Mounting
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, non-condensing
