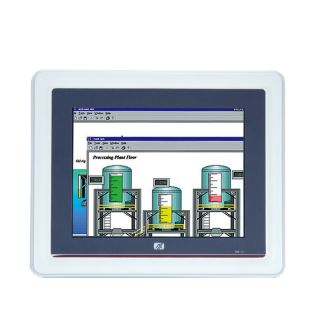

Fanless Touch Panel Computer - GOT5840T-845
8.4" SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060
● 8.4" SVGA TFT LCD display with LED backlight
● Fanless cooling system with Intel® Celeron® processor N3060 (up to 2.48 GHz)
● Ultra slim and super light design
● WLAN module and internal antenna
● 2 PCI Express Mini Cards
● 2 Gigabit LAN, 2 USB and 2 COM ports
● Supports optional panel mount/wall mount/VESA arm/desktop stand
● Plastic and IP65-rated front bezel
The GOT5840T-845 is an 8.4" Intel® Celeron®-based fanless touch panel computer. In response to market demand, this panel computer is a cost effective solution. It adopts a modern, super sleek and fanless design and is equipped with a 8.4" TFT LCD as well as Intel® Celeron® processor N3060 (Braswell). For wireless network connection, the GOT5840T-845 offers 2 PCI Express Mini Card slots. By just plugging in the mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments.
Besides, it provides two types of power input. One is DC power input with terminal block connector, and anotheris AC power adapter with screw type connector.
Super Slim & Ultra Lightweight Design
The GOT5840T-845 is a super slim touch panel computer for space-limited environment with its thickness of 45 mm and weight of 1.3 kg only, which make it installed everywhere.
Built-in Internal WLAN Antenna
The GOT5840T-845 provides 2 PCI Express Mini Card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5840T-845 in a wireless LAN/GPRS/GSM/4G environments.
Aluminum Back Chassis with Excellent Thermal Solution
With Axiomtek's patent for plastic plus aluminum mechanism design, the GOT5840T-845 can dissipate the heat easily and keep the system operation stable.
| Display Type | 8.4" SVGA TFT LCD with LED backlight |
| Brightness (cd/m2 ) | 350 nits |
| Resolution | 800 x 600 |
| Viewing Angel (H/V) | 160°/140° |
| CPU | Intel® Celeron® processor N3060 dual core up to 2.48 GHz |
| System Memory | 1 x 204-pin DDR3L-1600 MHz SO-DIMM max. up to 8 GB |
| Storage | 1 x mSATA |
1 x RS-232/422/485 (default RS-232, COM 1)
1 x HDMI
1 x Switch for power on/off
1 x AT/ATX mode selection switch
2 x USB 3.0
1 x Audio (Line-out)
2 x 10/100/1000 Mbps Ethernet (Intel® i211AT)
1 x Full-Size Mini PCI Express Mini Card with SIM Slot
AC version: 100-240V AC-DC 60W power adapter
Storage temperature: 0°C ~ +50°C
Relative humidity: 20% ~ 90% @ 40°C; non-condensing
Operation vibration: 2.0G, 5 ~ 500Hz, random for SSD
Windows 10 Professional
Windows Embedded 7 Standard
Windows 10 IoT Enterprise
