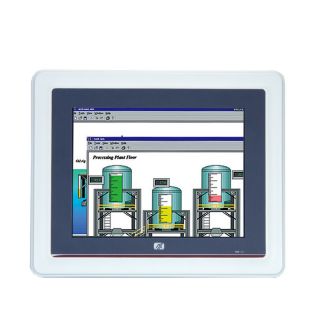

Fanless Touch Panel Computer - GOT5840T-834
8.4" SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor J1900 (up to 2.42 GHz)
● 8.4" SVGA TFT LCD display with LED backlight
● Fanless cooling system with Intel® Celeron® processor J1900 (up to 2.42 GHz)
● Ultra slim and super light design
● Supports WLAN module & internal antenna
● Supports 2 Gigabit LAN, 2 USB & 2 COM ports
● Easy for expansion: PCIe Mini Cards
● Supports panel mount, wall mount, VESA arm and desktop stand
● Plastic and IP65-rated front bezel
The GOT5840T-834 is a 8.4" Intel® Celeron® based fanless touch panel computer. Inresponse to market demand, this panel computer is a cost effective solution. It adopts
a modern, super sleek and fanless design and is equipped with a 8.4" TFT LCD as well as Intel® Celeron® processor J1900 (Bay Trail). For wireless network connection, the GOT5840T-834 offers 2 mini card slots. By just plugging in the mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments.
Besides, it provides two types of power input. One is DC power input (9-36VDC) with terminal block connector. The other is AC power adapter with screw type connector.
Super slim & ultra light design
The GOT5840T-834 is a super slim touch panel computer for space-limited environment with its thickness of 45mm and weight of 1.3 kg only, which make it installed everywhere.
Built-in internal WLAN antenna
The GOT5840T-834 provides 2 mini card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5840T-834 in a wireless LAN/GPRS/GSM/4G environments.
Excellent thermo solution: aluminum back chassis
With Axiomtek's patent for plastic plus aluminum mechanism design, the GOT5840T-834 can dissipate the heat easily and keep the system operation stable.
| Display Type | 8.4" SVGA TFT LCD with LED backlight |
| Brightness (cd/m2 ) | 350 nits (SVGA) |
| Resolution | 800 x 600 (SVGA) |
| Viewing Angel (H/V) | 160°/140° |
| CPU | Intel® Celeron® Processor J1900 4 cores (up to 2.42 GHz) |
| System Memory | 1 x 204-pin DDR3L-1333 MHz SO-DIMM max. up to 8 GB |
| Storage | 1 x CFast™ 1 x mSATA |
| COM | 2 x RS-232/422/485 |
| USB | 2 x USB 3.0 |
| Ethernet | 2 x 10/100/1000Mbps Ethernet (Intel® i210IT) |
| Audio | Line out |
1 x Full-Size Mini PCI Express Mini Card with SIM Slot
AC version: 100-240V AC-DC 60W power adapter
Operating temperature: 0°C ~ +50°C
Storage temperature: 0°C ~ +50°C
Relative humidity: 20% ~ 90% @ 40°C; non-condensing
Operation vibration: 2.0G, 5 ~ 500Hz, random for CFast™ card
Windows 7 Professional
Windows 8.1 Professional
Windows Embedded 7 Standard
Windows Embedded 8 Standard
