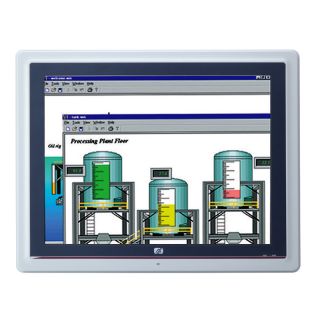

Fanless Touch Panel Computer - GOT5152T-845
15" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060
● 15" XGA TFT LCD display with LED backlight
● Fanless cooling system with Intel® Celeron® processor N3060
● WLAN module and internal antenna
● 2 Gigabit LANs, 4 USB and 2 COM ports
● PCI Express Mini Card for easy expansion
● Supports optional panel mount/wall mount/desktop stand
● Supports RFID (optional)
● Plastic and IP65-rated front bezel
Axiomtek GOT5152T-845 utilizes the fanless technology with Intel® N3060 dual cores CPU. Running Windows or Linux, this panel system provides great performance for many commercial and industrial applications. This slim design incorporates a 15" 450 nits LCD display providing a bright XGA (1024 x 768) touch screen. Wireless communications is supported with a built-in antenna within the bezel, ready for your choice of optional PCI Express Mini Card. Besides, it provides two types of power input. One is DC power with terminal block connector, and another is AC power adapter with screw type connector.
Using an all industrial-grade IP65 rated design, weighted 7 to 11 lbs (depending on configuration), this 15" fanless touch panel computer provides an attractive cost, low
power, high performance, reliable quality, slim size and low weight, all new for more demanding applications.
Super Slim & Ultra Light Weight Design
The GOT5152T-845 is a super slim touch panel computer for space-limited environment with its thickness of 54.6 mm and weight of 3.2 kg only, which make it installed everywhere.
Built-in Internal WLAN Antenna
The GOT5152T-845 provides 2 PCI Express Mini Card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN cards, customers can use the GOT5152T-845 in a wireless LAN/GPRS/GSM/4G environments.
Aluminum Back Chassis with Excellent Thermal Solution
With Axiomtek's patent for plastic plus aluminum mechanism design, the GOT5152T-845 can dissipate the heat easily and keep the system operation stable.
Display Type | 15" XGA TFT LCD with LED backlight |
Brightness (cd/m2 ) | 450 nits |
Resolution | 1024 x 768 |
Viewing Angel (H/V) | 160°/140° |
CPU | Intel® Celeron® processor N3060 dual core up to 2.48 GHz |
System Memory | 1 x 204-pin DDR3L-1600 MHz SO-DIMM max. up to 8 GB |
Storage | 1 x mSATA 1 x 2.5" SATA HDD |
1 x RS-232/422/485 (default RS-232, COM 1)
1 x HDMI
1 x Switch for power on/off
1 x AT/ATX mode selection switch
1 x 8-bit DIO port (programmable, DB9)
2 x USB 2.0
2 x USB 3.0
1 x Audio (Line-out)
2 x 10/100/1000 Mbps Ethernet (Intel® i211AT)
1 x Full-Size Mini PCI Express Mini Card with SIM Slot
AC version: 100-240V AC-DC 60W power adapter
Storage temperature: 0°C ~ +50°C
Relative humidity: 20% ~ 90% @ 40°C; non-condensing
Operation vibration: 2.0G, 5 ~ 500Hz, random for SSD
Windows 10 Professional
Windows Embedded 7 Standard
Windows 10 IoT Enterprise
