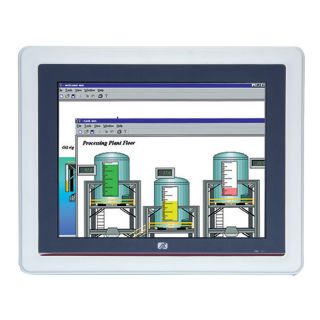

Fanless Touch Panel Computer - GOT5120T-845
12.1" XGA/SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060
● 12.1" XGA/SVGA TFT LCD display with LED backlight
● Fanless design with Intel® Celeron® processor N3060 (up to 2.48 GHz)
● 2.5" SATA SSD and mSATA with easy acess design
● 2 Gigabit LANs, 4 USB, 2 COM ports and optional speakers
● IP65 front bezel design
● Supports optional panel mount/wall mount/VESA arm/desktop stand
● External AT/ATX mode selectable switch
● Supports RFID (optional)
● Adjust RS-232/422/485 setting via BIOS
The GOT5120T-845 is a 12.1" Intel® Celeron®-based fanless touch panel computer. In response to market demand, this panel computer is a cost effective solution. It adopts a modern, sleek and fanless design and is equipped with a 12.1" TFT LCD as well as Intel® Celeron® processor N3060 2 cores up to 2.48 GHz. For wireless network connection, the GOT5120T-845 offers 2 PCI Express Mini Card slots. By just plugging in a mini card WLAN card, customers can have instant access to wireless LAN/GPRS/GSM/4G environments.
Besides, it provides two types of power input. One is DC power with terminal block connector, and another is AC power adapter with screw type connector.
Slim & Lightweight Design
The GOT5120T-845 is slim and lightweight which make it fit for limited space installation.
Built-in Internal WLAN Antenna
The GOT5120T-845 provides 2 PCI Express Mini Card slots and a built-in WLAN antenna for wireless network connections. By simply plugging in the wireless LAN card, customers can use the GOT5120T-845 in wireless LAN/GPRS/GPS/4G environment.
Aluminum Back Chassis with Excellent Thermal Solution
With Axiomtek's patent for plastic plus aluminum mechanism design, the GOT5120T-845 can dissipate the heat easily and keep stable operation of the system.
| Display Type | 12.1" XGA/SVGA TFT LCD with LED backlight |
| Brightness (cd/m2 ) | 500 nits (XGA) 450 nits (SVGA) |
| Resolution | 1024 x 768 (XGA) 800 x 600 (SVGA) |
| CPU | Intel® Celeron® processor N3060 2 cores (up to 2.48 GHz) |
| System Memory | 1 x 204-pin DDR3L-1600 MHz SO-DIMM max. up to 8 GB |
| Storage | 1 x 2.5" SATA HDD 1 x mSATA |
1 x RS-232-422-485 (default RS-232, COM 1)
1 x HDMI
1 x 8-bit DIO port (programmable, DB9)
1 x switch for power on/off
1 x AT/ATX mode selection switch
2 x USB 2.0
2 x USB 3.0
1 x Audio (Line-out)
2 x 10/100/1000 Mbps Ethernet (Intel® i211AT)
1 x Full-Size Mini PCI Express Mini Card with SIM Slot
AC version: 100-240V AC-DC 60W power adapter
Storage temperature: 0°C ~ +50°C
Relative humidity: 20% ~ 90% @ 40°C; non-condensing
Operation vibration: 2.0G, 5 ~ 500Hz, random for SSD
Windows 10 Professional
Windows Embedded 7 Standard
Windows 10 IoT Enterprise
