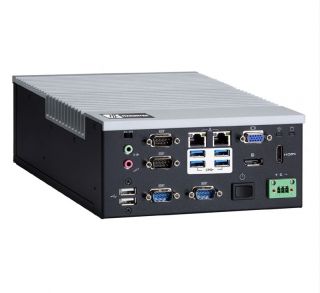

Axiomtek Fanless Embedded System eBOX640-500-FL
Fanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ & Celeron® Processor, Intel® H110, 1 HDMI/DP/VGA, 4 USB 3.0, 4 COM, 1 PCIe Mini Card and 10 - 30 V DC
● LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (Skylake/Kaby Lake)
● Fanless operation with compact size design
● 4 COM, 6 USB and 2 GbE LANs
● Two 2.5" SATA drive bay, 1 PCIe Mini Card and 1 SIM slot
● Front panel I/O connectivity design
● 10~30 V DC wide range power input
The eBOX640-500-FL is powered by the 7th generation Intel® Core™ i7/i5/i3 and Celeron® processor families. It features dual DDR4-2133 DIMM sockets with up to 32GB of system memory, and provides a wide choice of front-accessible I/O interfaces for easy cabling and maintenance. It supports an extended operating temperature ranging from -10°C to +55°C, a wide voltage range DC power input from 10 to 30 VDC with power protection, and up to 2G vibration endurance, enabling a reliable and stable operation in harsh environment. The superior Intel® Kaby Lake-based fanless embedded box PC can support three independent high resolution displays and 4K resolution, offering high quality imaging.
3 x RS-232
2 x 10/100/1000Mbps Ethernet (Intel® i219LM & i211AT)
2 x USB 2.0
4 x USB 3.0
1 x Audio (Mic-in/Line-out)
1 x DisplayPort
1 x HDMI
1 x VGA
1 x 10~30 V DC power input connector
1 x AT/ATX quick switch
2 x SMA type connector opening for antenna
1 x ATX power switch
1 x SIM slot
1 x mSATA
1 x orange LED for HDD active
