Managed Hardened 16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch
● Certified by NEMA TS2 Environmental requirements for Traffic control equipment ● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy ● IP Multicast Filtering through IGMP Snooping V1, V2 & V3 ● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP ● IEEE802.1p QoS with four priority queues ● MAC-based trunking and LACP ● IEEE802.1x Security ● Bandwidth Rate Control ● Per-port programmable MAC address locking ● Up to 24 Static Secure MAC addresses per port ● Port mirroring ● NTP synchronization ● DHCP Client/Server ● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management ● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX ● Full wire-speed forwarding rate ● -40°C to 75°C (-40°F to 167°F) operating temperature range,tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

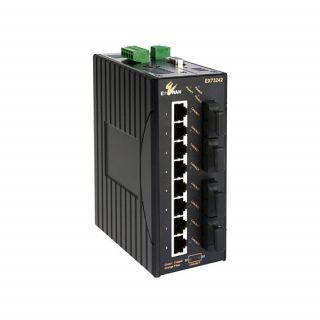

EtherWAN’s EX73000 Series provides a Hardened Fully Managed 18-port switching platform combining high performance switching backbone with robust and secure management features required for mission critical and harsh environments where sustained connectivity is crucial.
The EX73000 Series is equipped with sixteen 10/100BASE Fast Ethernet ports, in combination with up to two Gigabit combo ports with fixed Fiber options. Mountable on a DIN-rail, the EX73000 Series is equipped with EtherWAN’s Alpha-Ring self-healing technology, providing less than 15ms fault recovery time making it ideal for applications intolerant to interruption.
Users are able to access management features such as port security, IGMP snooping, VLANs, GARP protocols, LACP to name a few, and via web browser, Telnet, SNMP, RMON, TFTP, and RS-232 console interfaces.
