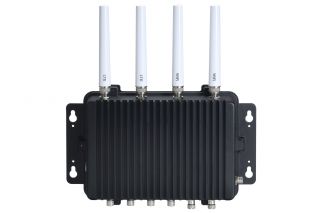

Axiomtek eBOX800-841-FL

Levertijd:
2~4 Weken
SKU
eBOX800-841-FL-DC

Rugged IP67-rated fanless embedded system with Intel® Atom™ processor E3845 1.91 GHz, VGA, 2 GbE LANs, 2 USB, 2 COM and 9~36VDC power input

● Intel® Atom® 3845U
● 2 USB and 2 COM ports
● 2GbE LANs
● Supports wide range 9-36VDC power input
● Flexible I/O for customized and mission-critical project
● Fanless operation design with IP67 protection
● 4 N-jack type antenna openings for WLAN & WWAN usage
● Wide range operating temperature of -30°C ~ +60°C







The eBOX800-841-FL is a fanless embedded system with IP67 protection for mission-critical market. The rugged embedded system is designed for fanless operation at temperatures from -30°C to 60°C. Its 9-36V wide range DC input with various power protection, M12 lockable connectors and N-jack waterproof antenna connectors meet the performance needs for industrial Internet of Things (IIoT) applications. The eBOX800-841-FL is powered by the onboard quad-core Intel® Atom™ E3845 processor (formally codename: Bay Trail). This hardened embedded box PC comes with one DDR3L SO-DIMM slot with system memory up to 8 GB. Additionally, one 2.5” SATA HDD, one mSATA and one CFast™ are available to maintain sufficient storage.

Meer informatie
Art.nr.
eBOX800-841-FL-DC
Fabrikant
Axiomtek
Country of Manufacture
Taiwan
Standard Color
Black
Construction
Aluminum die-casting and heavy-duty steel, IP67
CPU
Intel® Atom™ processor E3845 1.91 GHz
System Memory
1 x 204-pin SO-DIMM DDR3L-1066/1333 up to 8 GB
Chipset
SoC Integrated
BIOS
AMI
System I/O Outlet
2 x RS-232/422/485 (M12-type)
2 x USB 2.0 (M12-type)
2 x 10/100/1000 Mbps (M12-type)
1 x VGA (M12-type)
1 x DC-in
4 x N-jack type antenna opening
Watchdog Timer
255 levels, 1 ~ 255 sec.
Expansion Interface
1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
1 x Half-size PCI Express Mini Card slot (USB + PCI Express signal)
1 x SIM slot
Storage
1 x 2.5” SATA SSD)
1 x mSATA
1 x CFast™
System Indicator
1 x ATX power switch w/indicator
Power Supply
Input 9~36VDC
Operating Temperature
-30°C ~ +60°C (w/ W.T. SSD)
Humidity
10% ~ 95%, non-condensing
Vibration Endurance
3 Grms with SSD™ (5-500Hz, X, Y, Z directions)
Grootte
210 (w) x 366.83 (d) x 83 (h) mm
Weight (net/gross)
4.15 kg
Certification
CE
EOS Support
WES7
WES10 IoT
Windows 7 Professional
Windows 10 Professional
Warranty
2 Years
Configureren
Rugged IP67-rated fanless embedded system with Intel® Atom™ processor E3845 1.91 GHz, VGA, 2 GbE LANs, 2 USB, 2 COM and 9~36VDC power input
Aantal
Aantal
Aantal
Aantal

* Verplichte velden

Uw configuratie
eBOX800-841-FL Rugged IP67-rated Fanless Embedded System with Intel® Atom™ Processor E3845 1.91 GHz, VGA, 2 GbE LANs, 2 USB, 2 COM and 9~36VDC Power Input
