DURABOOK Z14i G2 Volledig Robuuste Laptop

Levertijd:
4~6 Weken
SKU
Z14i-G2

DURABOOK Z14i G2 Volledig robuuste notebook

● Intel® Core™ i5-1135G7 2.4 GHz
● 8GB DDR4 RAM uitbreidbaar tot 64 GB
● 14.0" Full HD Optical Bonded Display
● 1000 Nits Sunlight Readable DynaVue® Display
  (supports Night Vision Mode - NVIS Type I Class A Compliant)
● Fanless laptop
● Aanraakscherm (Rain / Glove / Stylus support)
● Intel® Wi-Fi 6 AX201 en Bluetooth 5.2
● Optioneel 4G LTE WWAN / GPS Module
● Express card 54 slot
● 2 x RS232 slot
● 2 x RJ-45 (10/100/1000) LAN Port
Optioneel 2 x PCIe Slot Expansion unit
● MIL-STD810H and IP65 Certified

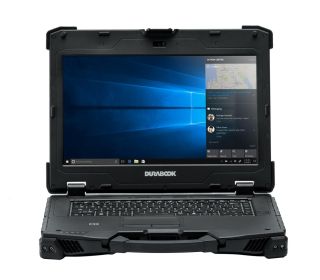

DURABOOK Z14i G2 - FULLY RUGGED LAPTOP

As Strong As It Gets
Boundles
Customization.

Combined with the latest 11th Generation Intel® Core™ processor and Intel® Iris® Xe Graphics capabilities, the Z14I G2 can handle data intensive tasks at speed. It has been built to withstand even the harshest of environments. Its IP65 rating, protecting against dust and water ingress, MIL-STD 810H certification and resistance up to six feet drop make the Z14I G2 more rugged than other comparable devices on the market. The device has also been tested for explosive atmosphere, solar radiation, salt fog, and fungus resistance, which goes beyond testing standards compared to other rugged devices in its class.

The Z14I G2 includes Durabook’s proprietary DynaVue® technology and high-definition multi-touch screen, offering the highest contrast ratio, which helps to eliminate internal reflections that enhance viewing clarity even from different angles, and in bright sunshine or low light conditions.





Z14i Mil-STD810H

Z14i Mil-STD461G

Z14i IP65 Certifiec

Z14i 6-foot drop survival

Z14i ANSI C1D2

Z14i Fanless laptop

3 years warranty

Z14i DynaVue, the best outdoor readable display

BUILT FOR ALL ENVIRONMENTS

With invincible mechanical design and rigorous component selection, the Z14I can adapt to any environments flawlessly. It is MIL-STD-810H certified with additional items such as explosive atmosphere, solar radiation, salt fog, and fungus resistance; it is also certified for IP65 and a 1.8 meter drop guarantee. What’s more is that it has MIL-STD-461G and ANSI-C1D2 certifications which makes it more rugged than ever.

Z14i Mil-STD810G

ENHANCED PERFORMANCE

Z14I is equipped with Intel® 11th generation CPU featuring Intel® Iris® Xe Graphics  processor, and performance is enhanced to cater for congested data processing. With an ultra high-speed data transmitting capability of Intel® Wi-Fi 6 and Bluetooth® V5.2, all data can be instantly synchronized and fed back to the data center without any interruptions.

Z14i G2 performance

Z14i Mil-STD810G

BUILT FOR ALL ENVIRONMENTS

With invincible mechanical design and rigorous component selection, the Z14I can adapt to any environments flawlessly. It is MIL-STD-810H certified with additional items such as explosive atmosphere, solar radiation, salt fog, and fungus resistance; it is also certified for IP 65 and a 6 feet drop guarantee. What’s more is that it has MIL-STD-461G and ANSI-C1D2 certifications which makes it more rugged than ever.

COMPREHENSIVELY CUSTOMIZED

A smart device that offers you different types of interfaces with various selections of add-ons, which includes Thunderbolt™ 4, two RJ-45 ports, two RS-232 serial ports, ExpressCard 54 and PCMCIA Type II slots. In addition, USB options offer all capabilities of Type-C to Type-A, or USB 3.2 Gen2 to USB 2.0.
For some customers, specific needs can be catered by our flexible customization package upon purchase.

Durabook Z14i G2

Z14i Mil-STD810G

VIEWING AT ITS BEST

The FullHD 1080p widescreen display alone with DynaVue® technology reveals every detail of visual image at a glance. Not only it has the brightness of up to 1000 nits but also the light-filtering technology makes the Z14I the best rugged laptop with highest contrast ratio (CR), which helps to eliminate internal reflections that enhances viewing clarity when viewed at different angles.

OPTIMIZED TOUCH TECHNOLOGY

The 10-point capacitive multi-touch panel has four touch modes (Glove, Stylus, Water, Finger), this device is optimized for applications of both indoor and outdoor usage; enhancing the device’s usability regardless of work conditions.

Z14i Mil-STD810G

Z14i G2 storage revolution

STORAGE REVOLUTION

Z14I is equipped with the latest NVMe PCIe SSD technology, providing up to 1TB of storage, while its PCIe offers speeds 4x faster than SATA III. It can accommodate two more internal SATA III SSD drives to maximize the onboard storage.
In addition, the Z14I device provides a media bay for several setup options; such as, an optical disk drive, a second battery or a third SATA III SSD storage to select from.

ENDLESS CUSTOMIZATION POSSIBILITIES


The expansion box is one of the most powerful enhancement capability of the Z14I. From a workstation to a portable server, the expansion box provides either two slots of PCIe interface for various solution builds, a dedicated graphics card, military-grade connectors or storage security extension with RAID 0/1/5/10 configurations. It could also be field installed with simple and easy guideline to become a powerful portable server or an ultimate solution for specific tasks.
The unit’s endless configuration possibilities assure users of the power, flexibility, functionality, and data security that they need for their specific applications.

Z14i Expansion

PCIe Expansion Box

Z14i Expansion

Discrete VGA Expansion Chassis

Z14i Discrete VGA

Customized Military-grade Connectors

Z14i Military Connectors

Storage Extension with RAID 0/1/5/10

Z14i Expansion

Z14I LAPTOP ANATOMY



DURABOOK Z14i Front View

Durabook Z14i Front

DURABOOK Z14i Rear View

Durabook Z14i Rear

DURABOOK Z14i Left View

Durabook Z14i Left

DURABOOK Z14i Right View

Durabook Z14i Right




Download PDF
Meer informatie
Art.nr.
Z14i-G2
Fabrikant
Durabook
Land van herkomst
Taiwan
Operating System
Genuine Windows 10™ Professional
Rugged Features

MIL-STD-810H Certified
6′ drop 26 faces, Shock, Vibration,Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation, Salt Fog, Fungus Resistance
Electromagnetic
MIL-STD 461G
Water and Dust Resistant
IP 65 certified
Hazardous Environment
ANSI C1D2 12.12.01

CPU

Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache

Intel® Core™ i5-1145G7 vPro™ (11th Gen) 2.6GHz processor with Turbo Boost Technology up to 4.4GHz, 8MB cachee

Intel® Core™ i7-1165G7 (11th Gen) 2.8GHz processor with Turbo Boost Technology up to 4.7GHz, 12MB cache

Intel® Core™ i7-1185G7 vPro™ (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.8GHz, 12MB cach

Memory
8 GB DDR4 (max 64GB DDR4)
Storage

256GB / 512GB / 1TB NVME PCIE SSD
Optional OPAL 2.0 SSD
Optional 2nd/3rd storage (SATA SSD)

VGA Controller

Intel® Iris® Xe Graphics
Optional NVIDIA® GEFORCE GTX 1050

Scherm

14.0” FHD (1920 x1080) with 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
NightVision

X Bay
Integrated 2.0 MP web-cam with shutter design
Media Bay

Optional DVD super multi
Optional 2nd battery
Optional 3rd storage (SSD)

Pointing Device

Capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Includes Hardtip Stylus

Expansion Slots

ExpressCard 54 x 1
Optional PCMCIA Slot x 1 (instead of ExpressCard 54 x 1)

Memory Card Reader

Micro SD (Micro SDXC) Card reader x 1

Smart Card Reader
Smart card reader x1
I/O Ports

Thunderbolt 4 (type C) x 1
USB 3.2 Gen2 (type C) x 1 (support DP)
USB 3.2 Gen2 (type A) x 1
USB 3.2 Gen1 (type A) x 1
USB 2.0 (type A) x 1
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
10/100/1000 Ethernet (RJ45) x 2
VGA port (D-sub,15-pin) x 1
HDMI port (type A) x 1
Serial port (RS232 : D-sub,9-pin) x 25
Docking connector (41-pin Pogo) x 1
SIM card x 1
Smart card reader x 1
DC-In jack x 1
ExpressCard 54 x 1 (default) or PCMCIA Type II x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN

5. One serial port supports RS422/RS485.

Communication Interface
Integrated 10/100/1000 Ethernet x 2
Intel® Wi-Fi 6 AX201 (802.11 ax)
Bluetooth® V5.2
Optional dedicated GPS module (UBLOX-NEO-M8N)
Optional 4G LTE multi-carrier mobile broadband
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Beveiliging

Intel® vPro™ Technology (per CPU options)
TPM 2.0
NIST BIOS compliant
Easy removable SSD
Smart card reader
Stealth mode
Night vision mode
Kensington lock
Optional Windows Hello
Optional fingerprint scanner
Optional HF/LF RFID reader

Power

AC adapter : 100-240V, 50Hz-60Hz, 90W
Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA
Main battery Li-Ion, 10.8V, 7800mAh, 16 hours2
Optional 2nd battery Li-Ion 10.8V, 4700mAh, 9 hours2
Optional bridge battery : 5 minutes swap time3

2. Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
3. The system will stay operating within 300 seconds when user swaps the battery.

Dimensions & Weight

356 mm (L) x 280 mm (W) x 50 mm (H)
3.6 kg4

4. Weight and dimension vary with options.

Environmental Spec
MIL-STD 810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation, Salt Fog, Fungus Resistance) MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility) ANSI/ISA 12.12.01-2000, Class I, Division 2 6′ drop 26 faces IP 65 certified Aluminum-magnesium alloy chassis Port covers Removable quick-release battery and storage drive Sunlight readable display Optional swappable battery technology
