DASYLab Data Acquisition and Analysis Software
DASYLab Software
● Maak complexe applicaties in een mum van tijd zonder te programmeren
● Hiermee kunt u met behulp van grafische functies werkbladen bouwen
● Gereedschappen voor real-time bewerkingen, inclusief PID-regeling
● Biedt standaard real-time displays (grafieken, meters)
● Biedt een volledige bibliotheek van rekenkundige functies, waaronder FFT-analyse
● Inclusief generator functies om ingangen te simuleren
● Gebruik Seriële, OPC, ODBC, MODBUS, IVI, en TCP / IP gebaseerde apparaten
● Ondersteunt data-acquisitie hardware van ICPDAS, MCC, en andere leveranciers
● Inclusief een tutorial, functionele voorbeelden, en on-line help

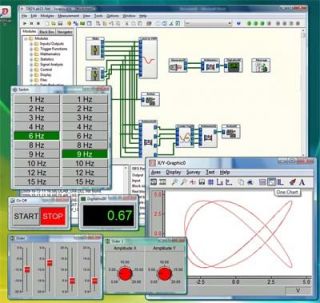

DASYLab is a PC program that allows a data acquisition and control application to be represented as a data flow diagram directly on the screen.

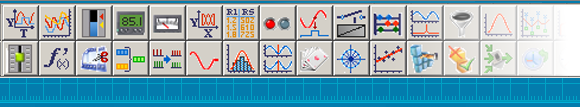

Icons selected from a module bar are positioned and connected with the mouse to form a schematic flowchart of the different stages in the flow of data -- input, processing, and output -- with a module represented by an icon at each stage. This schematic flowchart is called a worksheet.
A physical worksheet can be up to 2000 by 2000 pixels. When it is larger than the monitor screen, it can be scrolled horizontally and vertically. Editing the worksheet is easy, and modules can be added, moved, and deleted with a click of the mouse.
A worksheet contains up to 256 modules, but conceptually a worksheet can be any size. A worksheet can be represented as a custom icon and placed in another worksheet. These custom icons can be stored by name as a library to be used in many applications.
