RUGGON VULCAN X
RUGGED VEHICLE MOUNT COMPUTER
● Outdoor display optimizes visibility for day or night
● The screen defroster option for cold storage applications
● IP66, MIL-STD 810H and IEC-60721-3-5 5M3 certified
● Supports CAN bus 2.0B, SAE J1939
● Complete communication supports fast roaming
● Rich I/O design for maximum utilization
● Smart power management with wide power input to fulfill diversified applications
● Multi format video input option
● Navis Ready
● Industries : container port, warehousing and agriculture
| RUGGON VULCANX |       |

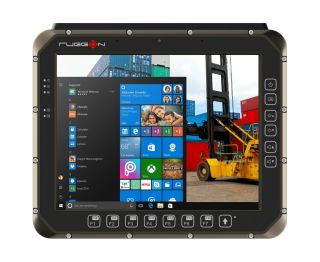

10.4” Rugged Vehicle Mount Computer
Operable in any ambient environment, the vehicle mount VULCAN X fulfills the cutting-edge demands of diverse industries with extreme durability and compatibility for future challenges.
Looking into the FutureAs digitization and automation get in the evolution of industrial applications, 5G ready is no longer a buzzword for RuggON VULCAN X. Further supporting Wi-Fi fast-roaming, the vehicle mount can connect all the nodes of an extremely fast and smooth autonomous guided vehicles (AGV) network. |
 |
|
|
Making Onsite Maneuver ReliablePrecise location positioning without any operation downtime on various cranes and forklifts is possible. Capable of 9-60 VDC, Bluetooth V5.0, Wi-Fi, and optional GPS, VULCAN X is designed for material handling with auxiliary RFID or barcode scanners that can be easily plugged into RS-232 ports for power recharge. |
Testing to the LimitsMorphed to endure outdoor applications prone with shock and vibration, VULCAN X can sustain operations from day to night and with the threat of salt erosion and fog/frost interference. Certified to MIL-STD-810H, the vehicle mount is further manufactured with robust metal connectors to withstand oil and grease. |
|
|
|
Moving towards SmartnessEasily defining up to 14 function keys through DashON, VULCAN X is also developed with robust and reliable M12 connectors to avoid user confusion and wrong cabling. Not thoroughly attached to the display, the 5-wire resistive touch makes it much easier for user maintenance. Securing FOTA update/upgrade through intuitive DashON interface sheds light on effortlessly centralized management in the future. |
The new RUGGON VULCANX Vehile Computer
IEC 60529 IP66, IEC 60721-3-5 class 5M3
MIL-STD-810H (Vibration, shock)
Optional Salt fog : MIL-STD-810H, Method 509.7
Operating temperature : -30° C to +55° C
10.4-inch 1024 x 768 XGA
1200 nits brightness supports auto-dimming
5-wire resistive touch supports defrost / defog function
PCT touchscreen supports glove and rain mode (by request)
5-wire resistive touch supports defrost / defog function
PCT touchscreen supports glove and rain mode (by request)
RS-232 with power supported x 1
RS-232/422/485 x 1, RS-232 x 2, RS-485 x 2
Gigabit Ethernet x 2
USB 3.1 x 1, USB 2.0 x2, USB 3.1 type C x 1 (DP Alt Mode supported)
Micro SD slot x 1, Micro SIM slot x 2
Optional CAN bus 2.0B x 2 or SAE J1939 x 1
DI x 2, DO x 2
Mic in x 2, Line out (L/R) x 1
Optional video input x 1
DC-in x 1
Bluetooth V5.0
Optional 4G LTE / HSPA+ / GPRS or 5G
Optional GNSS (GPS/Galileo/GLONASS/BeiDou/QZSS)
Ignition sense with delay on/off setting
Wake on RTC
UPS backup battery
3.2kg
Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4, IEC 60721-3-5 class 5M3
Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
Salt fog : MIL-STD-810G, Change 1, Method 509.6
Operating temperature : -30°C to +55°C
