RuggVMC MT7000
MOBILE DATA TERMINAL
● Bright 7-inch PCT touch display with intuitive interface
● 500 nits support auto-dimming
● Health readiness via SAE J1939
● GNSS with dead reckoning function
● Smart power management with ignition sense and backup battery
| RUGGON MT-7000 |      |

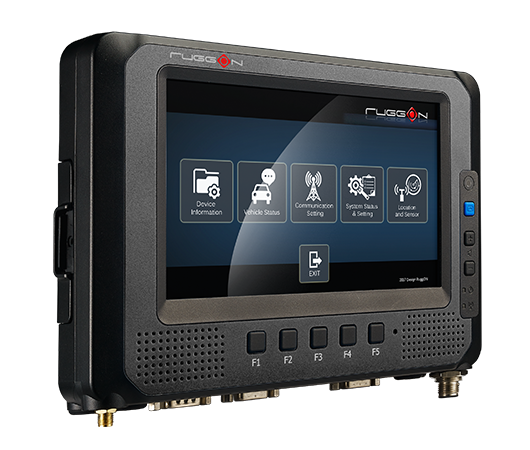

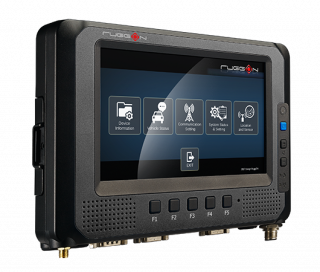

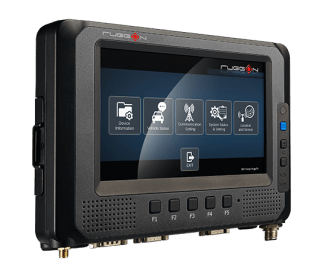

7” Mobile Data TerminalCombining friendly and intuitive interface with vehicle connectivity and power, MT7000 is a purpose-built device for in-vehicle application. |
 |
| |

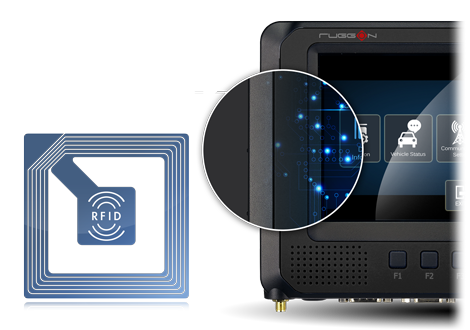

Vehicle-grade power protectionEasy identify, tracking and IoT enabled MT7000 is reserved with integrated NFC/RFID design which enables easy to identify ability and able to connect with various IoT devices. The Multi-protocol HF RFID Tag support: ISO15693 and ISO14443A/B speed up fleets in border crossing and driver ID verification processes. |

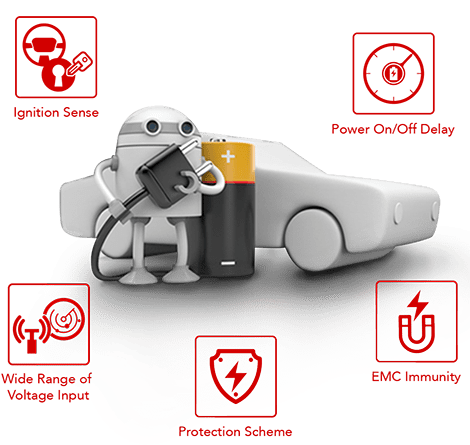

Smart power managementOutfitted with the upmost efficient power management, MT7000 is protected from sudden surges, noise filtering, overvoltage/ lower voltage, overcurrent, and other car power hazards that may damage the in-vehicle hardware system. MT7000’s UPS (uninterruptable power supply) battery supports additional time to save tracking data, or shut down properly during power loss. |
 |
 |
Seamless connectivity for smoother operationsMT7000 offers the best in-class connectivity with Wi-Fi 802.11 a/b/g/n/ac, GPRS/HSPA+/LTE, and Bluetooth V4.0 class2. The concurrent multi-GNSS reception of GPS/QZSS, GLONASS and BeiDou offers precise positioning. The supported dead-reckoning function also ensures continuous tracking even in tunnels, canyons, and overpasses. |
User friendly interfaceUtilizing DashON management software, the device information is easily accessible and configurable including, communication setting, power management and IO setting. For your added benefit, a complete SDK is also offered to make it easy for you to customize and extend the device with software apps |
 |
Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4
Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
Operating temperature : -30°C to +60°C
Optional Intel® Atom™ E3826 1.46 GHz
Optional:
- 64GB
- 128GB
- 256GB
500 nits support auto-dimming
Capacitive multi-touch (PCT)
- Capacitive multi-touch (PCT)
USB 3.0 x 1
USB 2.0 x 1
Dual Micro SIM slot x 1
Gigabit Ethernet (RJ45) x 1
Digital I/O x 4
CAN bus (SAE J1939 supported) x 1
Headset jack x 1
DC-in x 1
Optional Wi-Fi 802.11 a/b/g/n/ac
Optional Bluetooth V4.0 Class2
Optional 4G LTE / GPRS / HSPA+
NFC / RFID by request
9~36 VDC input
Vehicle power protection (ISO 7637-2)
Ignition sense with time delay shut down
Remote power on, wake on SMS/ RTC
Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4
Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
Operating temperature : -30°C to +60°C
Storage temp: -30°C to 70°C
Humidity: 5% to 95% RH, non-condensing
