Ruggon PX501 G5 - 10.1" Full Rugged Tablet
● 1000 nits Sunlight Readable Display with hyper dimming technology
● 10.1" Full HD (1920x1200) Display
● 13th generation Intel® Core™ i5 processor
● IP65, MIL-STD-810H and MIL-STD-461G certified
● WiFi 6E & 5G supported
● A wealth of I/O ports and expansion options fulfill field use
● Capacitive touch supports glove touch, water rejection, palm rejection, 2mm hard tip stylus
● IP54 digitizer pen optional available
● Hot-swap battery plus fast charging offers near indefinite capacity
● Wide expansion design for data capture
● Dual pass-through connector for WLAN, GNSS, WWAN

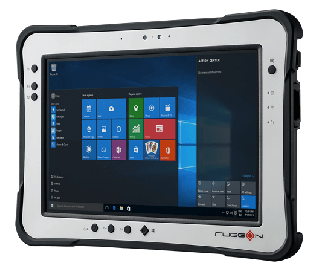

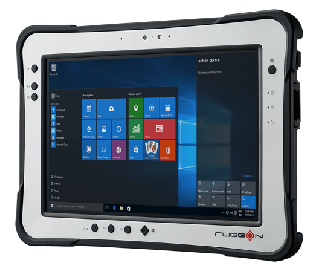

RUGGON PX501 G5
10.1" Fully Rugged Tablet
To offer you maximum performance for specific tasks, the new PX501 packs the advanced 13th Gen Intel® i5/i7 processor, ultrafast 5G connectivity and a full complement of I/O ports.

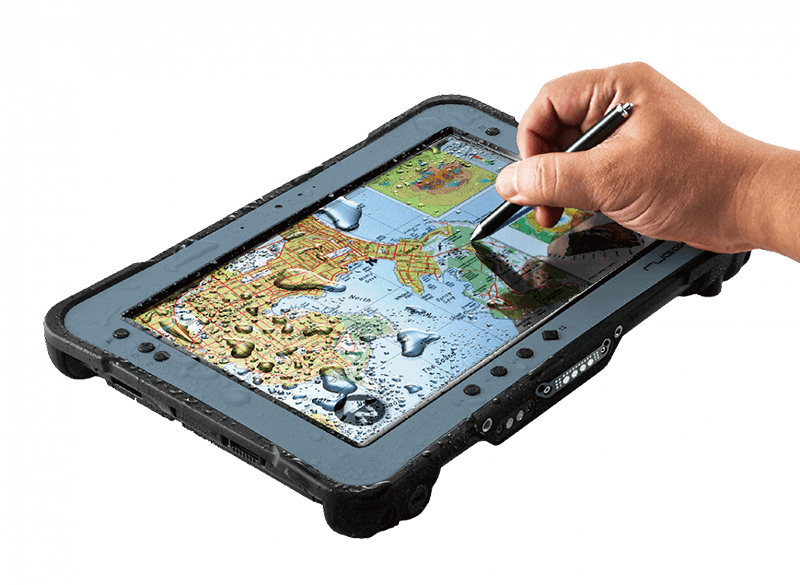

BEYOND THE TOUCH
Integrated with advanced touch technology, PX501 can avoid unintended touches including hand palm, water mist and rain drops, while ensuring correct data and command input. Paired with IP54 digitizer pen or 2mm hard tip stylus, the PX501 ensures accurate touchscreen interaction and sensible writing experience. Combined with the hard Gorilla Glass and glove touch function PX501 is truly a dedicated device for mobile workers to resist external damage and fulfill field needs.














ENHANCED VISIBILITY
RuggON PX501 is purpose-built for mobile workers to perform task from day to night. Like all its siblings, this device provides optimal visibility in all ambient light conditions, thanks to the 1000 nits high brightness display and hyper dimming technology.

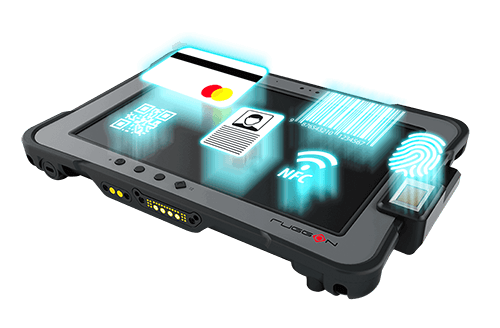

UNLIMITED CONNECTIVITY
Taking no compromise on ruggedness, PX501 comes with a wealth of I/O ports and expansion options to meet various requirements of different applications. The tablet’s fingerprint reader, smart card reader, MRZ reader, and integrated 2D barcode reader with optional OCR capabilities allow for passport scanning and identity detection, while its snap-on connector is also easy to customize.

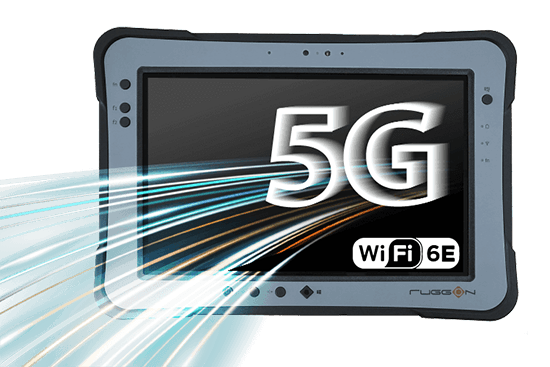

A PERFECT LINK@ ANYTIME, ANYWHERE
Equipped with the latest and complete communication technology, mobile workers can experience precise positioning, faster processing, broader coverage and more stable data transfer even around buildings or trees. The seamless connection will be enhanced through switchable dual pass-through connector.
RUGGON PERIPHERALS FOR PX501 G5

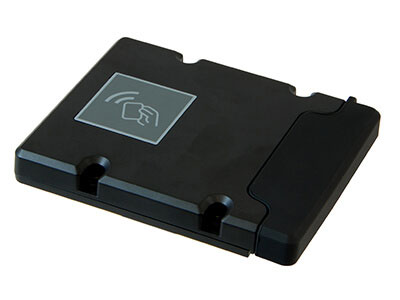

NFC + Smart Card Reader, 2 in 1

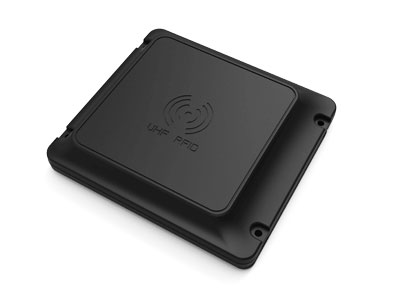

UHF RFID Reader

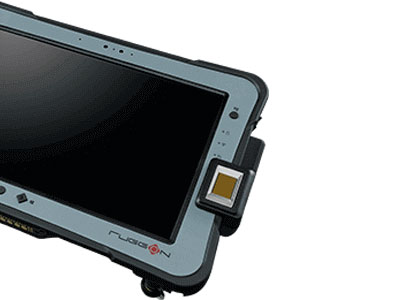

Fingerprint Reader

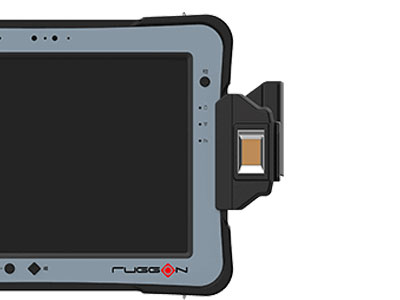

Fingerprint Reader + Machine Readable Zone Reader (MRZ), 2 in 1

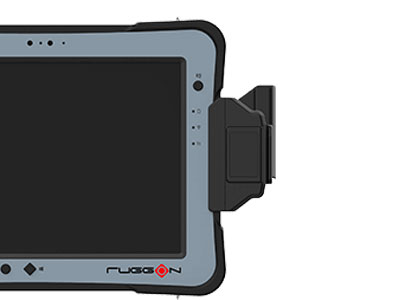

Machine Readable Zone Reader (MRZ)

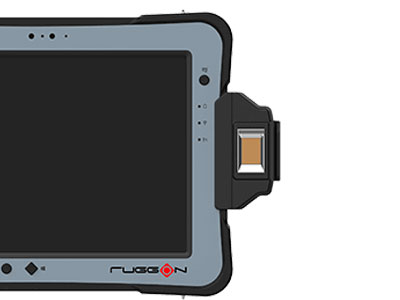

Fingerprint Reader + Magnetic Strip Reader, 2 in 1

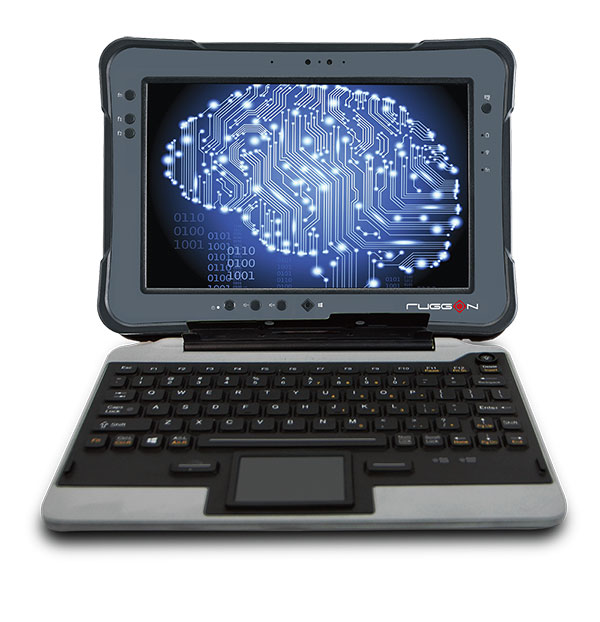

OPTIONAL PX501 KEYBOARD DOCK
Key Features :
- Foldable design likes a laptop
- Touchpad supports multi-finger gestures
- Available in multiple language layouts
- Integrated green backlighting with 4 levels of brightness
Specs :
- IP54 rating
- Operating Temperature : -10°C ~ 50°C
- Dimensions : 280 x 210 x 10mm
- Weight : 900g
IP65, MIL-STD-810H and MIL-STD-461G certified
Vibration, shock and 5 feet drop resistance
Operating temperature : -20° C to +60° C
Intel® Core™ i5-1335UE Processor (12M Cache, up to 4.50 GHz)
Intel® Core™ i7-1365UE Processor (12M Cache, up to 4.90 GHz)
Intel® Processor U300E (8M Cache, up to 4.30 GHz)
Intel® UHD Graphics (U300E)
Intel® Iris® Xe Graphics (i5 / i7)
10.1” TFT LCD WUXGA (1920 x 1200), Gorilla Glass
1000 nits sunlight readable with hyper dimming option
Capacitive multi-touch screen supports glove touch, water rejection, 2mm hard tip stylus
Optional digitizer with IP54 pen
Optional NFC + Smart Card reader ( CAC) 2-in-1 module
Capacitive multi-touch screen supports glove touch, water rejection, 2mm hard tip stylus
Optional digitizer with IP54 pen
Built-in 2D barcode reader (OCR option)
NFC + Smart Card reader 2-in-1 module
Fingerprint reader, MRZ reader
Snap-on connector easy for customization
2MP front camera
8MP auto focus rear camera with LED flash
USB 3.1 type A x 1, USB 3.2 Gen 2 Type-C w/ DP & PD x 1
RS-232 x 1, optional USB 2.0 or Micro SD slot
Gigabit Ethernet (RJ45) x 1
Audio headset jack x 1
Nano SIM slot x 2
Optional RF pass-through connector for WLAN/ GNSS/ WWAN x 2
Docking connector x 1
DC-in x 1
Bluetooth V5.3
GNSS (GPS/ GLONASS/ BeiDou)
Optional 4G LTE/ 5G (Sub-6G)
TPM 2.0
Cable lock slot
Optional Fingerprint reader
Optional NFC and/or smart card reader
AC adapter (65W, 100-240V AC, 50/60Hz)
4500mAh hot-swappable Li-ion battery, optional 9000mAh hot-swappable Li-ion battery
Support fast charging
*The default is for 65W AC adapter, 65W Type-C adapter can be optional.
Storage temp: -30°C to 70°C
Humidity: 5% to 95% RH, non-condensing
