Durabook U11i-EX - Fully Rugged ATEX Certified Tablet
● Intel® Core™ i5-1230U vPro™ Processor (i7-1250U vPro™ optional)
● 11.6" Full HD DynaVue® Display
● 1000 Nits Sunlight Readable Bonded Display
● Multi Touch or Dual Mode Touch (/w Digitizer Pen)
● Exclusive touch technology (rain/glove/pen)
● Intel® Wi-Fi 6E AX211 & Bluetooth® V5.3
● Available with integrated 4G LTE
● Available with dedicated GPS
● 8MP AF Camera with Flash
● RS232 or Barcode Scanner option
● Optional detachable membrane backlit keyboard
● Lightweight 1.39 kg
● Removable PCIe NVMe SSD module up to 2 TB
● Fanless design
● IP66 Certified for dust and water protection
● Mil-STD810H Shock, Drop and Vibration
● ATEX Zone 2/22 certified
● Ex II 3G Ex ic IIC T4 Gc
● Ex II 3D Ex ic IIIB T135°C Dc
DURABOOK U11i EX
RUGGED TABLET - BUILT FOR ALL. ALL IN ONE
The Durabook U11i is a light, handy and exceptionally configurable high-performance Windows 11 full rugged tablet






Impressive ruggedness
Powered by Intel® 12th generation processors, the Durabook U11I-EX sports a Coolfinity™ fanless design, offering the perfect blend of functionality, performance and reliability. Drop-tested from 6 feet, MIL-STD-810H and ATEX Zone 2/22 certified and with an IP66 rating, it’s the most reliable 11” tablet for the modern professional. It features an 11.6” LCD display with Durabook’s proprietary DynaVue® technology for an exceptional viewing experience even in direct sunlight.
The U11I-EX fully rugged tablet has it all. It packs an unprecedented number of productivity features within its extremely compact and rugged exterior for use in even the most hazardous environments.

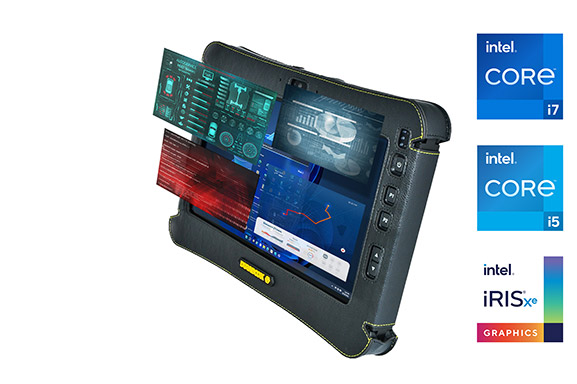

SUPERB PERFORMANCE BUILT IN
With its 12th Gen Intel® CPU processor, Intel® Iris® Xe Graphics and other architectural innovations U11I-EX is the most versatile 11-inch rugged tablet, going above and beyond standard requirements to elevate the professional user’s experience. Plus, advanced wired and wireless transmission capabilities, including Thunderbolt 4, 5G, 4G LTE, GPS, Intel® WI-FI 6E and Bluetooth® V5.3, mean smooth, congestion-free data processing at all times. A 2MP front camera, optional Windows Hello face-authentication camera, and optional 8MP rear camera are also features of this versatile tablet.

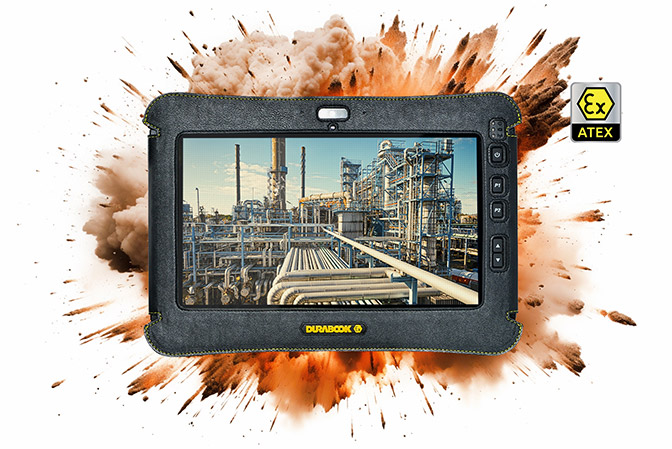

ATEX CERTIFIED
Certified for use in hazardous environments, the U11I-EX fully rugged tablet provides ATEX Zone 2/22 certification for use in potentially explosive atmospheres. This certification offers modern frontline professionals assurance they can use the device to provide remote support, capture and access critical information in the field and run diagnostics with the highest accuracy in hazardous locations.

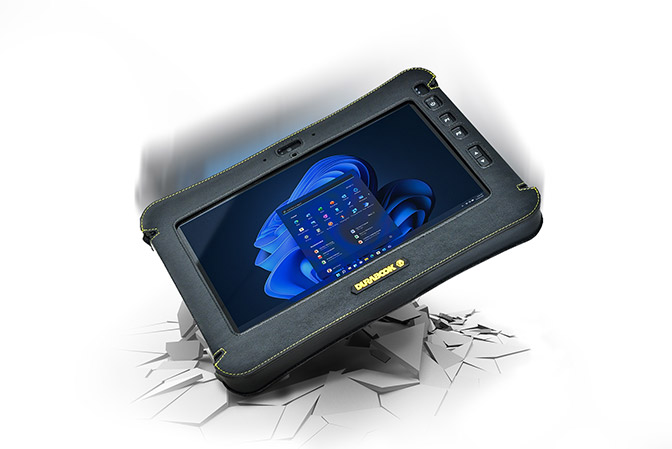

ROCK-SOLID DESIGN
Designed specifically for work in extreme environments, the U11I-EX is MIL-STD-810H certified, meaning it can withstand a 6-foot drop, and tested to an IP66 rating for maximum protection against dust, dirt, and water ingress. With its rock-solid design the U11I-EX is built for endurance and can operate in temperatures ranging from -20°C to 60°C.

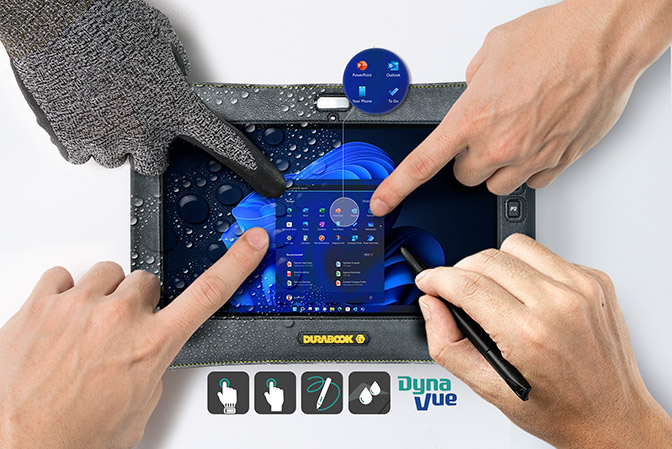

EXCEPTIONAL VIEWING EXPERIENCE
The U11I-EX sports an 11.6″ FHD (1920 x 1080) LCD display featuring Durabook’s proprietary DynaVue® sunlight readable technology for exceptional, detailed viewing even in direct sunlight. DynaVue® also features 1,000-nit brightness for enhanced viewing clarity. Equipped with a 10-point capacitive multi-touch panel with four advanced touch modes, workers can choose their preferred data input mode: a finger, with glove or a stylus for more precision. Plus, every input mode works regardless of work conditions, even if the display is wet.

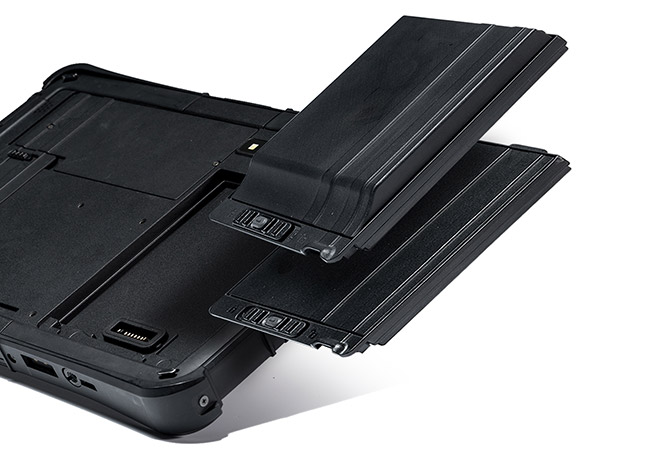

LONG-LIFE, HOT-SWAP BATTERY
The U11I-EX is compact yet delivers power and functionality without sacrifice. Its ultra-long battery life of up to 10 hours, plus the option of a high-capacity battery of up to 20 hours, enhances its versatility, giving you the advantage of non-stop operation with a single battery. This operational capability makes the U11I-EX a perfect device for those working outside a traditional office.

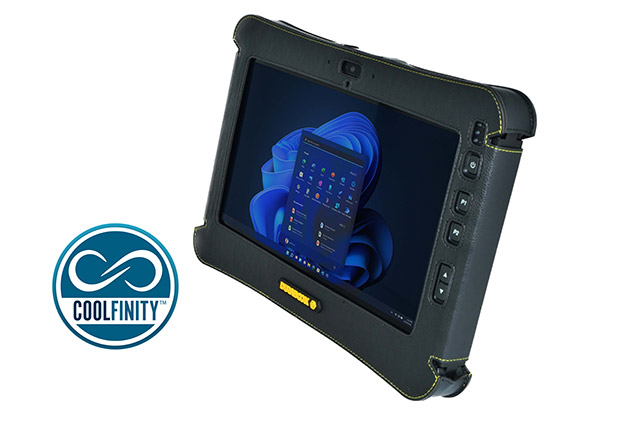

COOLFINITY™ FANLESS DESIGN
The U11I-EX’s Coolfinity™ fanless thermal solution lets the fully rugged tablet operate quietly, while offering greater reliability and decreased downtime and repairs that negatively impact productivity. Durabook’s fanless Coolfinity™ devices operate safely in industries where standard computers cannot. Designed as the only 11.6” fanless tablet in its class, U11I-EX provides an extra level of security for today’s mobile workforce.

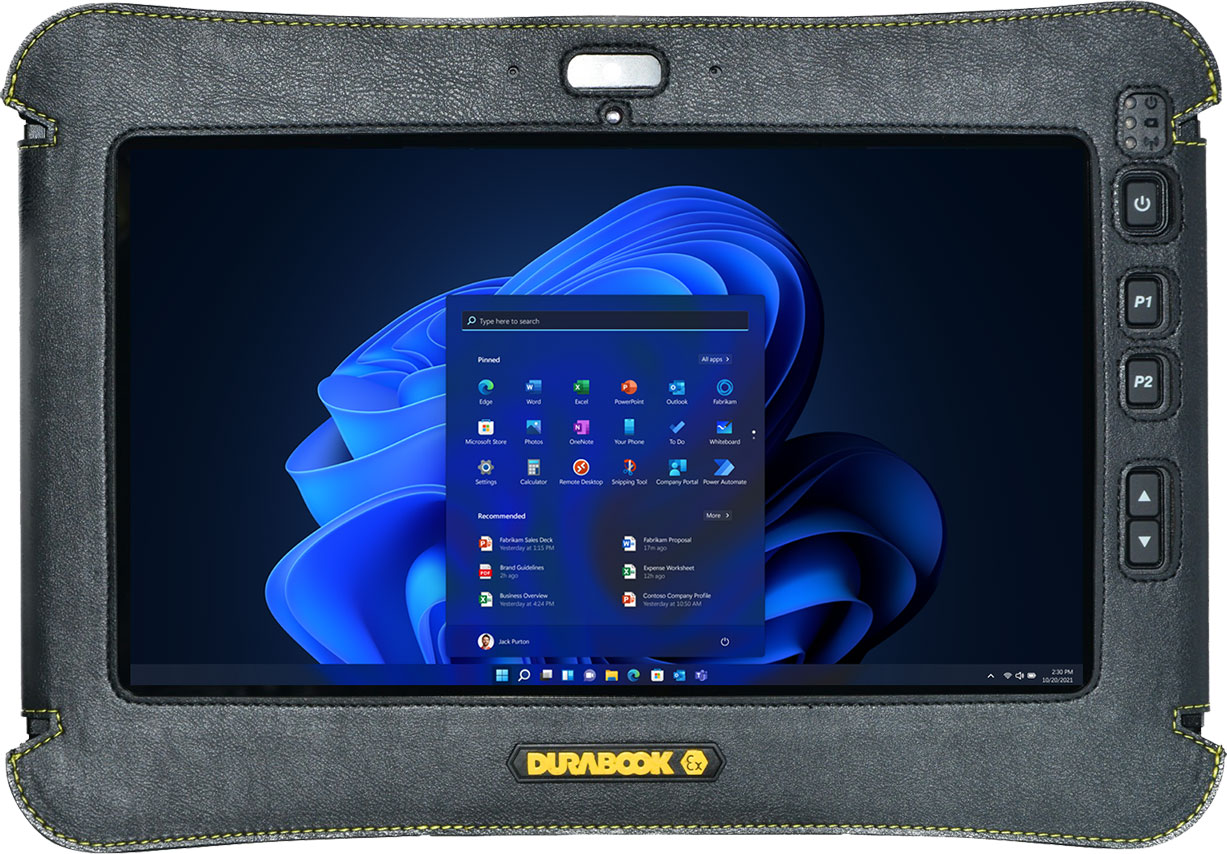

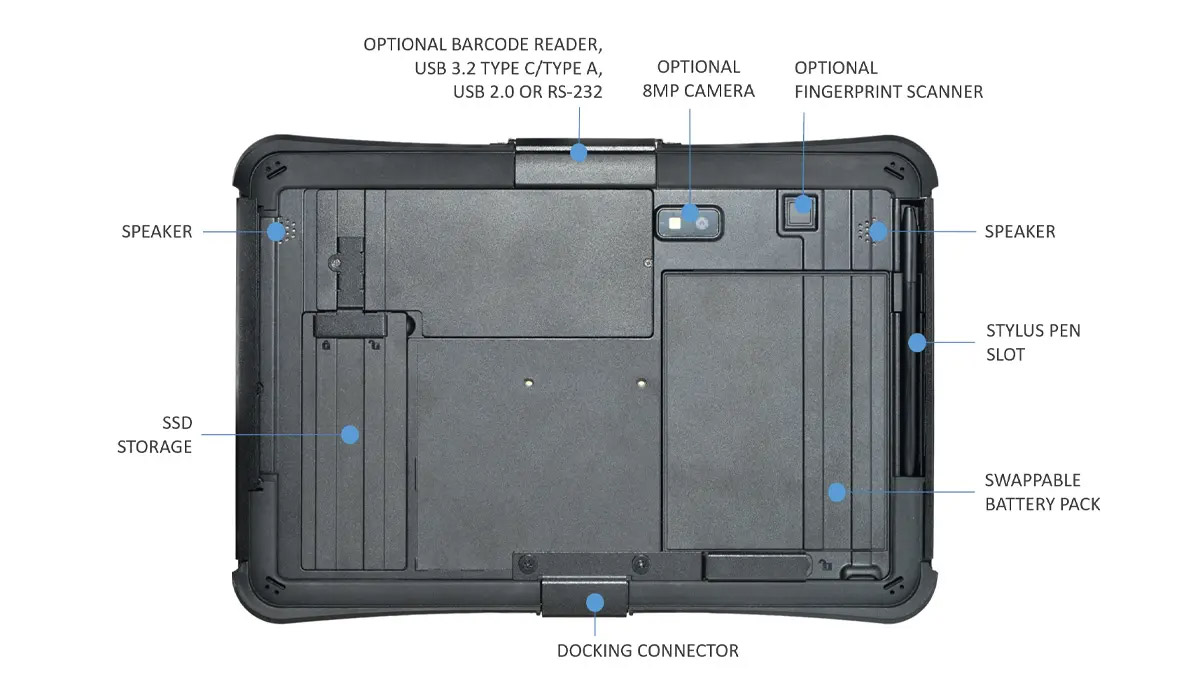

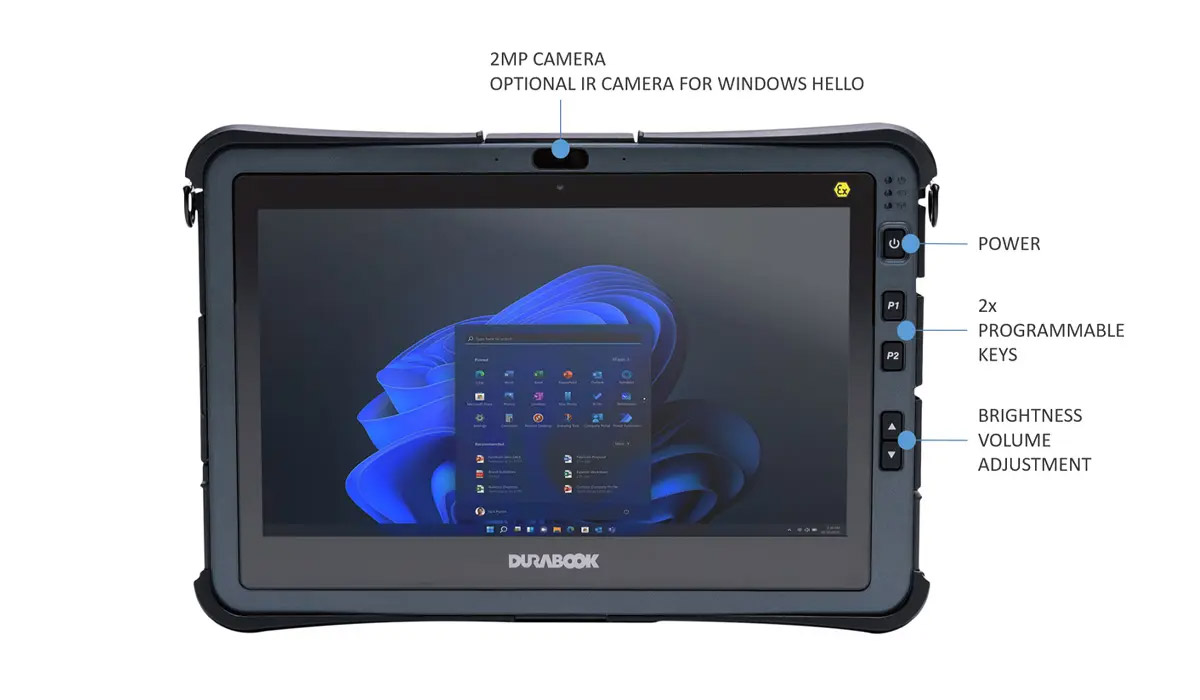

DURABOOK U11i-EX FULL RUGGED TABLET ANATOMY








■ MIL-STD 810H | Altitude-Storage |
Method 500.6, Procedure I, 40000 ft | |
Altitude-Operating | |
Method 500.6, Procedure II, 40000 ft | |
High Temperature-Storage | |
Method 501.6, Procedure I, 33°C ~ 71°C | |
High Temperature-Operating | |
Method 501.6, Procedure II, 60°C | |
Low Temperature-Storage | |
Method 502.6, Procedure I, - 46°C | |
Low Temperature-Operating | |
Method 502.6, Procedure II, - 37°C (AC mode) | |
Temperature Shock | |
Method 503.6, Procedure I, from - 40°C ~ 71°C, 3 cycles | |
Rain-Blowing Rain ; Rain Drip | |
Method 506.6, Procedure I, total 6 surfaces; | |
Method 506.6, Procedure III | |
Humidity-Operating | |
Method 507.6, Procedure I, relative humidity of 95%, | |
Cycel B1, Induced 90 days + Natural 45 days | |
Blowing Dust | |
Method 510.6, Procedure I, 60°C | |
Blowing Sand | |
Method 510.6, Procedure II, 60°C | |
Explosive Atmosphere | |
Method 511.6, Procedure I, 60°C | |
Vibration-General Vibration Operating | |
Method 514.7, Procedure I, Category 24, Fig. 514.7E-1 | |
Functional Shock | |
Method 516.7, Procedure I, 40G, 11ms | |
Method 516.7, Procedure V, 75G, 6ms | |
Transit Drop | |
Method 516.7, Procedure IV, 26 drops from 72 inch | |
height onto 2 inch plywood | |
Freeze/Thaw | |
Method 524.1, Procedure III | |
■ Water Sealing | IEC 60529 IP-X6 |
■ Dust Proof | IEC 60529 IP-6X |
■ MIL-STD 461G | Meet MIL-STD-461G: CE102, RE102, CS101, CS114, CS115, CS116, RS103 |
■ ANSI/ISA | 12.12.01(C1D2) |
ATEX Zone 2/22 certified | |
Ex II 3G Ex ic IIC T4 Gc | |
Ex II 3D Ex ic IIIB T135°C Dc |
Intel® Core™ i5-1230U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores)
optional:
Intel® Core™ i7-1250U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores)
Onboard 8GB up to 32GB (LPDDR4x)
256GB NVMe PCIe SSD
Optional 512GB/1TB/2TB PCIe SSD
Optional OPAL 2.0 SSD
Intel® Iris® Xe Graphics
11.6” FHD (1920 x1080)
Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
Optional with digitizer
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Dual Mode (Multi Touch Screen + Digitizer w/pen) optional
Thunderbolt 4 x 1
USB 3.2 Gen1 (type A) x 1
Audio in/out (combo jack) x 1
microSD card (microSDHC, microSDXC) x 1
10/100/1000 Ethernet (RJ45) x 1
Docking connector (20-pin Pogo) x 1
Nano SIM card x 1
DC-In jack x 1
Optional smart card reader x 1 or x 2
Optional USB 3.2 Gen2 (type C) x 1
Optional 2nd USB 3.2 Gen1 (type A) x 1
Optional USB 2.0 (type A) x 1
Optional serial port (RS232, 422 and 485 : D-sub,9-pin) x 1
Optional 1D/2D barcode reader x 1
Bluetooth® V5.3
Optional dedicated GPS module (UBLOX-NEO-M9N)
Optional 4G LTE multi-carrier mobile broadband
Optional 5G (project based)
Intel® vPro™ Technology
Secured-core PC
TPM 2.0
NIST BIOS compliant
Easy removable SSD
Stealth mode
Kensington lock
Optional smart card reader x 1 or x 2
Optional Windows Hello
Optional night vision mode
Optional fingerprint scanner
AC adapter: 100-240V, 50Hz-60Hz, 65W
Main battery: Li-Ion, 7.6V, 4800mAh, 10 hours
Optional hi-cap battery Li-Ion 7.6V, 9600mAh, 20 hours
Optional bridge battery: 5 minutes swap time
Weight: 1.49 kg (weight may vary depending on configuration)
■ MIL-STD 810H | Altitude-Storage |
Method 500.6, Procedure I, 40000 ft | |
Altitude-Operating | |
Method 500.6, Procedure II, 40000 ft | |
High Temperature-Storage | |
Method 501.6, Procedure I, 33°C ~ 71°C | |
High Temperature-Operating | |
Method 501.6, Procedure II, 60°C | |
Low Temperature-Storage | |
Method 502.6, Procedure I, - 46°C | |
Low Temperature-Operating | |
Method 502.6, Procedure II, - 37°C (AC mode) | |
Temperature Shock | |
Method 503.6, Procedure I, from - 40°C ~ 71°C, 3 cycles | |
Rain-Blowing Rain ; Rain Drip | |
Method 506.6, Procedure I, total 6 surfaces; | |
Method 506.6, Procedure III | |
Humidity-Operating | |
Method 507.6, Procedure I, relative humidity of 95%, | |
Cycel B1, Induced 90 days + Natural 45 days | |
Blowing Dust | |
Method 510.6, Procedure I, 60°C | |
Blowing Sand | |
Method 510.6, Procedure II, 60°C | |
Explosive Atmosphere | |
Method 511.6, Procedure I, 60°C | |
Vibration-General Vibration Operating | |
Method 514.7, Procedure I, Category 24, Fig. 514.7E-1 | |
Functional Shock | |
Method 516.7, Procedure I, 40G, 11ms | |
Method 516.7, Procedure V, 75G, 6ms | |
Transit Drop | |
Method 516.7, Procedure IV, 26 drops from 72 inch | |
height onto 2 inch plywood | |
Freeze/Thaw | |
Method 524.1, Procedure III | |
■ Water Sealing | IEC 60529 IP-X6 |
■ Dust Proof | IEC 60529 IP-6X |
■ MIL-STD 461G | Meet MIL-STD-461G: CE102, RE102, CS101, CS114, CS115, CS116, RS103 |
■ ANSI/ISA 12.12.01(C1D2) |
