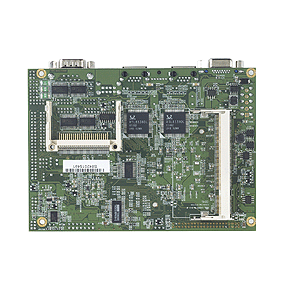

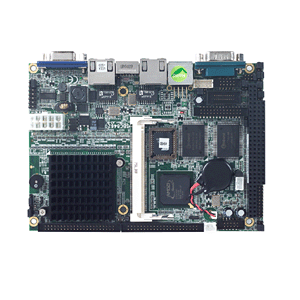

Axiomtek 3.5'' Capa Board SBC84622
AMD LX800 3.5" Embedded SBC with Dual LANs, 4 COM, 4 USB 2.0 and VGA/LVDS/TTL
● Low power fanless AMD LX800 processor
● AMD LX800 + CS5536AD
● Dual 10/100Mbps Ethernet supported
● 4 COM and 4 USB 2.0 ports
● VGA and LVDS/TTL LCD
● +5V only single voltage DC-in supported
The Axiomtek 3.5'' Capa Board SBC84622 supports an onboard low power AMD LX800 500 MHz processor with the AMD Geode CS5536 chipset. The flexible display function is supported by integrated graphics controller which allows users to configure both CRT and LVDS LCD or CRT and TTL LCD as simultaneous mode. Onboard one DDR SODIMM supports up to 1GB of system memory. Having such compact design with fanless operation, the Axiomtek 3.5'' Capa Board SBC84622 can be applied in widely embedded and automation applications such as industrial automation, automation control, telecommunication, and process control.
| CPU | AMD LX800 500 MHz processor |
| System Memory | 1 x 200-pin DDR-400 SODIMM max. up to 1GB |
| Chipset | AMD LX+CS5536 |
| BIOS | Phoenix-Award 4Mbit with RPL/PXE LAN Boot ROM, SmartView and Customer CMOS Backup |
| SSD | 1 x CompactFlash™ type-II socket |
| Watchdog Timer | 255 levels, 0~255 sec. |
| Expansion Interface | N/A |
| Battery | Lithium 3V/196mAH |
| Size | 146 x 104 mm |
| Operation Temperature |
Standard: 0°C ~ +60°C |
| Operation Humidity | 10% ~ 95% relative humidity, non-condensing |
| MIO | 1 x PATA-100 IDE 1 x PS/2 keyboard/mouse 4 x COM (4 x RS-232) 1 x LPT; with SPP/EPP/ECP supported |
| SATA | N/A |
| Hardware Monitoring | Support CPU/system temperature, CPU/system voltage, and CPU/system Fan features |
| Digital I/O | 3 channel IN and 5 channel OUT |
| Ethernet | Dual ports as 10/100Mbps support Wake-on-LAN, RPL/PXE Boot ROM with Realtek RTL8139DL |
| Audio | AC'97 Codec audio as MIC-in/Line-out/ Speaker-out with Realtek ALC203 |
| USB | 4 x USB 2.0 port; 2 port via box-header for wiring solution |
| SMBus | System Management Bus for advanced monitoring/control interface |
| Chipset | Integrated in AMD LX |
| Memory Size | Max. up to 254MB frame buffer sharing system memory |
| Resolution | VGA: up to 1920 x 1440 ; LVDS LCD: up to 1600 x 1200 |
| Output Interface | * VGA connector for DAC output * LVDS LCD with 18 bit or 24 bit channel mode, CO-lay with TTL LCD |
