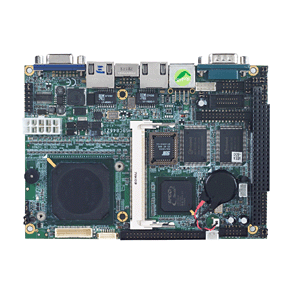

Axiomtek 3.5'' Capa Board SBC84621

Levertijd:
2~4 Weken
SKU
SBC84621

AMD LX800 3.5" Embedded SBC with Dual LANs, 4 COM, 4 USB 2.0 and LVDS LCD

● Low power fanless AMD LX800 processor
● AMD LX800 + CS5536AD
● Dual 10/100Mbps Ethernet
● 4 COM and 4 USB 2.0 ports
● PC/104 and MiniPCI slots for expansion
● VGA and LVDS LCD
● +5V only single voltage DC-in supported

The Axiomtek 3.5'' Capa Board SBC84621 supports AMD LX800 500MHz processor and full feature I/Os. It is an ideal entry level PC-based embedded platform and be able to be fanless operation for industrial applications. The new integrated graphic controller, 4 COM, 4 USB 2.0 ports and 1GB DDR memory features empower the system value without extra development cost. In the meanwhile, for the expansion interface, the Axiomtek 3.5'' Capa Board SBC84621 provides PCI with Mini PCI socket and ISA bus through PC/104 interfaces. Also, Axiomtek 3.5'' Capa Board SBC84621 gives the best TCO (Total-Cost-of-Ownership) for system design due to DDR memory supported.

Meer informatie
Art.nr.
SBC84621
Fabrikant
Axiomtek
Land van herkomst
Taiwan, Province of China
Systeem
CPU AMD LX800 processor onboard
System Memory 1 x 200-pin SO-DIMM supports DDR-333/400 max up to 1GB
Chipset AMD LX800 + CS5536AD
BIOS Phoenix-Award
SSD 1 x CompactFlash™ type-II
Board Unique ID Board unique ID (optional)
Watchdog Timer 255 levels, 1~255 sec.
Expansion Interface 1 x Mini PCI
1 x PC/104 for 16-bit ISA bus
Battery Lithium 3V/196 mAH
Size 146 x 104 mm
Operation Temperature

Standard: 0°C ~ +60°C
Optional: -40°C ~ +85°C
-25°C ~ +70°C

Operation Humidity 10% ~ 95% relative humidity, non-condensing
IO
MIO 1 x IDE; PATA-100
1 x FDD (optional)
1 x PS/2 keyboard and mouse
1 x RS-232/422/485 (COM 1); with +5V/+12V powered
3 x RS-232 (COM 2/3/4); with +5V/+12V powered
1 x LPT; with SPP/EPP/ECP supported
SATA N/A
Hardware Monitoring Detect CPU/system temperature and voltage
Ethernet 2 ports as 10/100Mbps support Wake-on-LAN, RPL/PXE
Boot ROM with Realtek RTL8139DL
Audio AC'97 Codec audio as MIC-in/Line-in/Line-out/speaker-out with Realtek ALC203
USB 4 x USB 2.0 ports
SMBus System Management Bus for advanced monitoring/control
Digital I/O Refer to Ordering information




Weergave
Chipset AMD LX intergrated
Memory Size Max. up to 254 MB
Display Interface 1 x VGA
1 x LVDS; 18/24-bit single channel
