Axiomtek Embedded SBC SBC83820

Levertijd:
Niet meer leverbaar
SKU
SBC83820

Socket 478 Intel® Pentium® M Embedded SBC with Intel® 915GME/910GMLE+ICH6M Chipset, DualView, Dual LANs, 4 COM and PCI Express

● Socket 478 for Intel® Pentium® M/Celeron® M processor with FSB 400/533 MHz
● Intel® 915GME/910GMLE+ICH6M chipset
● DualView with different content & resolution
● Dal 10/100/1000Mbps Ethernet option supported
● 4 COM ports for transaction terminal applications
● Serial ATA-150 supported
●  PCIe, MiniPCI and PCI expansion interfaces

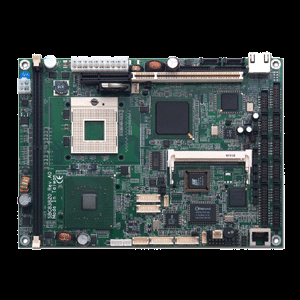

Axiomtek Embedded SBC SBC83820 is a 5.25" Petit embedded board supporting Intel® Pentium® M and Intel® Celeron® M processor both at 400/533MHz FSB respectively. Its outstanding display features with dual LVDS, DVI, and CRT for dual contents and different resolutions for advanced applications. In the meanwhile, the Axiomtek Embedded SBC SBC83820 is equipped with dual Ethernet with Fast Ethernet and full speed Gigabit Ethernet (optional) supported; it an ideal solution for HMI and control node with remote control through TCP/IP over Ethernet infrastructure. To support the future bus architecture expansion, the SBC83820 is not only with 32-bit PCI extension interfaces like PCI and Mini PCI, but also with PCI Express for three x1 high performance add-on cards.

Meer informatie
Art.nr.
SBC83820
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Systeem
CPU Socket 478 for Intel® Pentium® M/Celeron® M processor
up-to-date frequency with FSB 400/533 MHz
System Memory 1 x 240-pin DDR2-400/533 DIMM max. up to 1GB
Chipset Intel® 915GME/910GMLE+ICH6M
BIOS Phoenix-Award 4Mbit with RPL/PXE LAN Boot ROM,
SmartView and customer CMOS backup
SSD 1 x CompactFlash™ type-II with DMA mode support
Watchdog Timer 255 levels, 0~255 sec.
Expansion Interface * 1 x PCI Express for three PCIe x 1
* 1 x 32-bit/33MHz PCI for 2 Masters
* 1 x MiniPCI type-III
Battery Lithium 3V/196 mAH
Size 203 x 146 mm
Temperature 0°C ~ +60°C , operation
Operation Humidity 10% ~ 95% relative humidity, non-condensing
IO
MIO 1 x IDE; PATA-100
1 x FDD
1 x PS/2 keyboard
1 x PS/2 mouse
3 x RS-232 (COM 1/3/4); with +5V/+12V powered
1 x RS-232/422/485 (COM 2); with +5V/+12V powered
SATA 2 x SATA-150
HardwareMonitoring Support CPU/System temperature, CPU/System voltage, and CPU/System Fan features
Ethernet * 1st port as 10/100Mbps supports Wake-on-LAN,
RPL/PXE Boot ROM with Intel® 82551QM
* 2nd port as 10/100Mbps supports Wake-on-LAN,
RPL/PXE Boot ROM with Intel® 82562GZ
Audio AC'97 Codec audio as Mic-in/Line-in/Line-out/
Speaker-out with Realtek ALC202A
USB 4 x USB 2.0; via box-header
SMBus N/A
Digital I/O 4 channel IN and 4 channel OUT
Weergave
Chipset Integrated in Intel® 915GME/910GMLE
GMCH
Memory Size Max. up to 128MB frame buffer sharing
system memory
Resolution * VGA: up to 2048 x 1536 232-bit color
1st LVDS LCD: 18-bit single/dual channel
up to 1600 x 1200
2nd LVDS: 1600 x 1200
* DVI: 1600 x 1200 (optional)
Output Interface * VGA with D-sub 15-pin connector
* 1st LVDS LCD with 2 x 20-pin connectors
* 2nd LVDS LCD with 2 x 20-pin connectors (optional)
* DVI LCD with 1 x 20-pin DF20 connector (optional)
