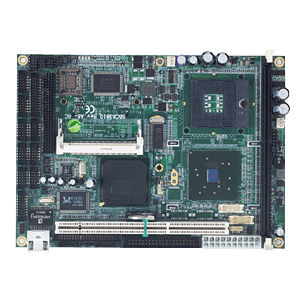

Axiomtek Embedded SBC SBC83810
Levertijd:
Niet meer leverbaar
SKU
SBC83810
Socket 478 Intel® Pentium® M Embedded SBC with Intel® 855GME/852GM+6300ESB Chipset, DualView, 4 COM and SATA-150
● Socket 478 for Intel® Pentium® M/Celeron® M processor with FSB 400 MHz
● Intel® 855GME/852GM+6300ESB chipset
● DualView with different content & resolution
● 4 COM ports for transaction terminal applications
● 2 Serial ATA-150 supported
● 1 PCI-X, PCI-104 and MiniPCI expansion Interfaces
● RAID 0 and 1 supported
The Axiomtek Embedded SBC SBC83810 is powered by Intel® Pentium® M/Celeron® M as 5.25" SBC with Intel® 855GME/852GM+6300ESB core logic controller. It is equipped with multiple I/O features including DualView, 4 COM ports and Serial ATA. Meanwhile, the PCI-X, Mini ITX and PCI104 are ideal for high performance expansion interface. The PCI-X slot provides high speed and wide bandwidth expansion interface for capture cards, Gigabit Ethernet, SCSI controller etc. The Mini PCI socket is ideal for Wireless LAN, modem and other Laptop combo features. And, industrial PCI104 expansion interface is very reliable and widely applied interface with 32-bit/33MHz PCI bus performance.
Meer informatie
Art.nr.
SBC83810
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Systeem
| CPU | Socket 478 for Intel® Pentium® M and Intel® Celeron® M processor with FSB 400 MHz |
| System Memory | 1 x 184-pin DDR-333/400 DIMM max. up to 1GB (ECC & DDR-333 supported by 855GME only) |
| Chipset | Intel® 855GME/852GM+6300ESB |
| BIOS | Phoenix-Award 4Mbit with RPL/PXE LAN Boot ROM, SmartView and customer CMOS backup |
| SSD | 1 x CompactFlash™ type-II with DMA supported |
| Watchdog Timer | 1024 levels |
| Expansion Interface | 1 x PCI-X expansion slot for 2 PCI masters 1 x MiniPCI type-III 1 x PCI-104 Interface |
| Battery | Lithium 3V/196 mAH |
| Size | 203 x 146 mm |
| Temperature | 0°C ~ +60°C, operation |
| Operation Humidity | 10% ~ 95% relative humidity, non-condensing |
IO
| MIO | 2 x IDE; PATA-100 1 x FDD 1 x PS/2 keyboard 1 x PS/2 mouse 3 x RS-232 (COM 1/3/4); with +5V/12V powered 1 x RS-232/422/485 (COM 2); with +5V/12V powered and auto flow control 1 x LPT; with SPP/EPP/ECP supported 1 x IrDA |
| SATA | 2 x SATA-150 |
| Hardware Monitoring | Support CPU/System temperature, CPU/System voltage, and CPU/System Fan features |
| Ethernet | 1 port as 10/100/1000Mbps supports Wake-on-LAN, RPL/PXE Boot ROM with Realtek RTL8100C (optional for 10/100/1000Mbps with Realtek RTL8110S) |
| Audio | AC'97 Codec audio as Mic-in/Line-in/Line-out/ Speaker-out with Realtek ALC203 |
| USB | 4 x USB 2.0, via box-header |
| SMBus | N/A |
| Digital I/O | N/A |
Weergave
| Chipset | Integrated in Intel® 855GME/852GM GMCH |
| Memory Size | Max. up to 64MB frame buffer sharing system memory |
| Resolution | * VGA: up to 1920 x 1440@ 60 Hz * LVDS LCD: 18/24-bit single/dual channel up to 1400 x 1050 |
| Output Interface | * VGA with D-sub 15-pin connector * 1st LVDS LCD with 2 x 20-pin connectors * 2nd LVDS LCD with 2 x 20-pin connectors (optional) |
