Protech Embedded PC SE-8122
Levertijd:
2~7 dagen
SKU
SE-8122

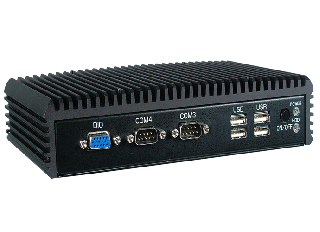

Slim and Fanless Embedded PC
● Intel® N2800/D2550 processor
● Fanless and compact size PC
● Maximum support 2 x LAN, 6 x USB2.0 and 4 x Serial port, 4 in/ 4 out Digital IO , 1 x SIM card slot
● Support wide temperature 0°C ~ 60°C (for Wide temperature CFast card)
● Support 9~36V wide range DC -in
Slim and Fanless Embedded PC
Meer informatie
Art.nr.
SE-8122
Fabrikant
Protech
Systeem
| CPU Support | Intel®N2800/D2550 CPU on board |
| Chipset | Intel® NM10 |
| Memory Support | 1 x DDR3 SO-Dimm socket up to 4GB memory |
| Power Supply | 9~36V DC-in |
| Operating System | Win7 |
| Dimension (w x h x d) | 217.5 x 45 x 148 mm (8.56" x 1.77" x 5.83") , 2kg |
| Certificate | FCC / CE |
IO
| Digital I/O |
4in / 4out |
| USB |
Front side: 4 x USB2.0 Rear side: 2 x USB2.0 |
| SIM card / CFast slot |
1 x SIM card slot |
| Serial Port |
Front side: 2 ports support (COM 5/6 for RS232 only) Rear side: 4 ports support (COM1/3/4 for RS232, COM2 for RS232/422/485, pin-9 5V/12V/RI selectable) |
| USB |
Front side: 2 x USB2.0 Rear side: 4 x USB3.0 |
| LAN | LAN1 : Intel® 82579LM 10/100/1000 LAN LAN2 : Intel® 82583V 10/100/1000 LAN Support wake-on-LAN |
| Audio | 1 x Line out |
Environmental
| Operation Temperature | 0 °C ~ +45 °C |
| Storage Temperature | -20 °C ~ +60 °C |
| Humidity | 20% ~ 90% |
