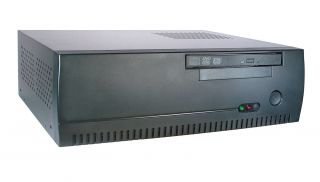

Protech Book Size PC SA-5942
Levertijd:
Uit voorraad leverbaar
SKU
SA-5942
High Performance Desktop Intel® i3 / i5 / i7 processors Book PC
● Supports Intel® 4th Gen. Core™ i3/ i5/ i7 / Intel® Pentium / Celeron® processors (LGA 1150)
● Supports DDR3 memory up to 16GB
● Supports dual display (DVI-D/DVI-I)
● Support expansion 1 x PCIe16x (2 x PCI slots (optional)
● 4 x serial ports
High Performance Desktop Intel® 4th Gen. CPU Book Size PC
Meer informatie
Art.nr.
SA-5942
Fabrikant
Protech
Systeem
| CPU Support | Intel® 4th Gen. Core™ i3/ i5/ i7 / Intel® Pentium / Celeron®processors (LGA1150) |
| Chipset | Intel® H81/ Q87 |
| Memory Support | 2 x DDR3 DIMM socket up to 16GB |
| Power Supply | ATX Flex 220W |
| System Weight | 5 kg (11lb) |
| Dimension (w x h x d) | 300 x 94 x 270 mm |
| Certificate | FCC / CE |
| Operating System | Win 7/Win 8 WES7/8 |
IO
| Drive Bays | 2 x 2.5" SATA HDD & 1 x slim DVD-RW (optional) |
| USB | 2 x USB2.0 2 x USB3.0 |
| Audio | Realtek ALC888S-VD2-GR Line-in / Line-out / MIC |
| Serial Port | Serial Port 4x COM port, COM1/3/4 for RS-232, COM2 for RS-232/422/485 (COM1/2 support +5/+12V/RI selectable) |
| Keyboard / Mouse | 2 x PS/2 port |
| LAN | LAN1: Intel I217LM/V (Clarksville) LAN2: Intel I210-AT (Springville) |
| Expansion Slots | 1 x PCIe 16x or 2 x PCI slot or (optional) |
Environmental
| Operation Temperature | 0° ~ 40° C |
| Storage Temperature | - 20° ~ 60° C |
| Humidity | 20% ~ 90% |
