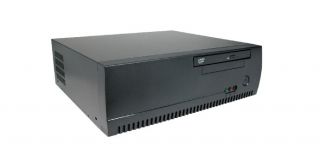

Protech Book Size PC BPC-8090
Levertijd:
Uit voorraad leverbaar
SKU
BPC-8090
High Performance Core™ 2 Duo Book Size PC
● Supports Intel® Core™ 2 Duo porcessor
● Dual/triple independent display
● RAID 0, 1 disk configuration support
● Supports Serial ATA
● Powerful PCI Express expansion module
● 4 Serial ports with +5V/+12V/ adopt 220W ATX power supply
● Flexible rackmount and wallmount installation
Art.nr.
BPC-8090
Fabrikant
Protech
Systeem
CPU Support | Intel® Core™ 2 Duo up to 2.16 GHz |
Chipset | Intel® 945GME + ICH7R |
Memory | 2 x 240-Pin DDR2 DIMM Socket (up to 4 GB) |
Power Supply | ATX 220 W (Energy Star) |
System Weight | 5 kg |
Dimension (w x h x d) | 300 x 94 x 270 mm |
Certificate | FCC / CE (Class B) / UL / cUL |
Watchdog | 1 ~ 255 secs Watchdog timer selectable w/Reset/ NMI |
Operating System | Win 7/ XP / XPE / 2000 / Vista |
IO
Drive Bays | 1 x 3.5" IDE / SATA HDD or 2 x 2.5" IDE /SATA HDD & 1 x slim CD/DVD-ROM (optional) |
USB | 6 x USB 2.0 (2 x USB2.0 with bracket (optional) |
Serial Port | 4 x COM port, COM 2 for RS232 / 422 / 485 (+5/+12V ,optional set with jumper) |
Parallel Port | 1 x Parallel port (SPP/ EPP/ ECP) |
Keyboard / Mouse | 2 x PS/2 port |
LAN | 2 x onboard RJ-45, 10/100/1000 Mbps (Intel® 82573) |
VGA | 1 x VGA |
DVI | 1 x DVI (switchable to VGA with adaptor) |
Audio | Line-out (Realtek ALC655 AC ' 97 Code) |
Expansion Slots | 1 x PCI-E (16x) + 1 x PCI or 2 x PCI |
Environmental
Operation Temperature | 0 °C ~ +40 °C |
Storage Temperature | -20 °C ~ +60 °C |
Humidity | 20% ~ 90% |
