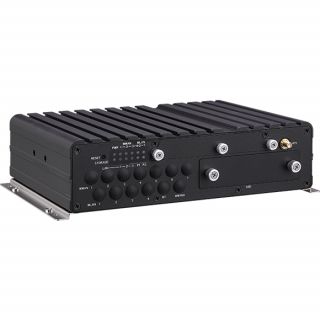

Nexcom Intel Atom® E3950 Fanless Rolling Stock Computer with EN50155

Levertijd:
4~6 Weken
SKU
nROK6221-IP

● Intel Atom® processor quad core E3950, up to 2.0GHz
● Six SIM cards + three WWAN modules support
● Built-in u-blox-M8N GPS
● Built-in CAN Bus 2.0B
● 1 x External storage (compatible with 15mm disk)
● EN 50155, class OT4 conformity
● 3 x mini-PCIe + 2 x M.2 socket expansion
● 4 x DI + 4 x DO w/ isolation
● 2 x RS232 + 1 x RS485 w/ isolation
● 2.5KVDC power isolation protection
● IP65 rating for waterproof
● Two VGA video outputs


Nexcom nROK 6221-IP, based on Intel® Core™ quad core processor E3950 (up to 2.0GHz), is specifically comply with stringent EN50155 standard in rugged, fanless and compact mechanism. nROK 6221-IP provides complete communication capability between train and computer with build-in CAN Bus 2.0B interface. nROK 6221-IP features rich WLAN and WWAN wireless connectivity. With dual SIM cards per modem support, nROK 6221-IP allows six SIM cards backup each other for a better connectivity quality by software. In addition, six SIM cards and three WWAN modules architecture can increase the bandwidth for a faster data transmission speed. Equipped with intelligent power management, nROK 6221-IP can be waked on by ignition, RTC timer or SMS message remotely.

By integrating the variety of I/O ports, 3 x mini-PCIe, 2 x M.2 sockets expansibility, up to two screens via VGA connections and waterproof IP65 rating, nROK 6221-IP keeps the flexibility to meet the demand for different rolling stock applications, such as infotainment, dispatching system, cellular/wireless network connectivity, and video surveillance. The design of mini-PCIe slots x 3 can solve the potential request from the market when needed.


Meer informatie
Art.nr.
nROK6221-IP
Fabrikant
Nexcom
Land van herkomst
Taiwan
Nexcom Intel Atom® E3950 Fanless Rolling Stock Computer with EN50155 aanpassen
nROK6221-IPAI - Intel Atom® processor E3950 CPU, DC Input 24 VDC w/ isolation, 2 x VGA, 2 x LAN, 2 x RS-232, 1 x RS-485, 4 x DI, 3 x DO, 3 x USB, IP65 (P/N: 10A00622101X0)
