iKey KYB-114-OEM
Levertijd:
2~7 dagen
SKU
KYB-114-OEM

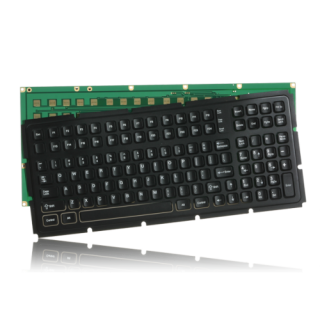

Industrieel OEM Toetsenbord
● OEM set: PCB, rubberen overlay en kabel
● USB, PS / 2 en AT configuraties beschikbaar
De KYB-114-OEM biedt een volledig 114-toets layout met 24 functietoetsen. Elk pakket bestaat uit een industrieel siliconen toetsenbord, switch matrix board, keyboard controller en kabels.
Meer informatie
Art.nr.
KYB-114-OEM
Fabrikant
iKey
Land van herkomst
Verenigde Staten
Certification
NEMA 4X UL60950, FCC Part 15 Class B
Rugged Features
| Shock | 3 x11 ms pulses of 50g on each of 3 axis |
| Power Spectral Density | 0,04 g/Hz |
| Frequency Range | 20 Hz - 2 KHz |
| Material | Industrial silicone rubber |
| Life | Greater than 10 million cycles |
| Travel | 0.055 in. (1.4mm) |
| Actuation Force | 200g (+/- 20g) |
| Feedback | Tactile with Mechanical Snap |
Power
PS2: 50mA@5V (from Keyboard port)
USB: 50mA@5V (from Keyboard port)
USB: 50mA@5V (from Keyboard port)
Operating System
PS/2: All Windows Operating Systems
USB: All Windows and Macintosh OS
USB: All Windows and Macintosh OS
Dimensions & Weight
15.00" x 6.50" x 0.42"
(w-h-d) 381.0mm x 165.1mm x 10.7mm
1.5 lbs (0.68 kg)
(w-h-d) 381.0mm x 165.1mm x 10.7mm
1.5 lbs (0.68 kg)
Environmental Spec
| Storage | -40C to +90C |
| Operating | -40C to +70C |
| Humidity | 100% |
Warranty
1 jaar fabrieksgarantie
