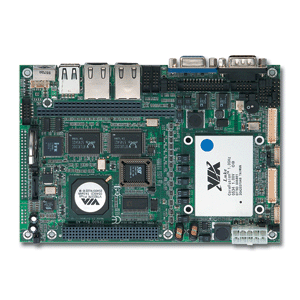

Axiomtek EPIC Board EP600
Levertijd:
Niet meer leverbaar
SKU
EP600VEEA

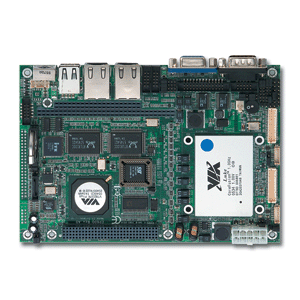

VIA Eden EPIC SBC with DualView, Dual LANs and PC/104-Plus Expansion
● LP/ULP VIA Eden processor for fanless solution
● VIA Luke+VT8237R Plus+ITE8888G chipset
● DualView with different content & resolution
● Optional dual LVDS supported
● Dual 10/100/1000Mbps Ethernet
● PC/104-Plus for PCI and ISA expansion
● +5V only supported
The Axiomtek EPIC Board EP600 features the low voltage and ultra low voltage VIA Luke compliant processors for fanless operation applications. To meet the original EPIC concept, which features PC/104 expansion capability, the Axiomtek EPIC Board EP600 comes with both PC/104 for 16-bit ISA and PCI104 for 32-bit PCI interfaces. The Axiomtek EPIC Board EP600 is an ideal solution for a single embedded board to support the reliable and anti-vibration PC/104+ expansion. This fanless embedded board also supports 200-pin DDR SODIMM sockets for up to 1GB of DDR400 memory, and supports dual segments with non-ECC memory. Additionally, the function-rich board provides dual fast Ethernet for network communication (optional Gigabit Ethernet), four USB 2.0 ports for high speed peripherals, Digital I/O for industrial control applications, and DualView for both LVDS LCD and CRT displays
Meer informatie
Art.nr.
EP600VEEA
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Systeem
| CPU | VIA Luke for ULP Eden 533 MHz/1 GHz processor |
| System Memory | 1 x 200-pin DDR-400 SODIMM max. up to 1GB |
| Chipset | VIA Luke+VT8237R Plus+ITE8888G |
| BIOS | Phoenix-Award 4Mbit with RPL/PXE LAN Boot ROM, SmartView and customer CMOS backup |
| SSD | 1 x CompactFlashTM type-II with DMA supported |
| Board Unique ID | Board unique ID (optional) |
| Watchdog Timer | 255 levels, 0~255 sec. |
| Expansion Interface | 1 x PCI-104 for 32-bit PCI 1 x PC/104 for 16-bit ISA |
| Battery | Lithium 3V/196 mAH |
| Size | 165 x 115 mm |
| Operation Temperature | Standard: 0°C ~ +60°C |
| Operation Humidity | 10% ~ 95% relative humidity, non-condensing |
IO
| MIO | 1 x IDE; PATA-133 1 x FDD (optional) 1 x PS/2 keyboard/mouse 3 x RS-232 (COM 2/3/4); with +5V/+12V powered 1 x RS-232/422/485 (COM 1); with +5V/+12V powered 1 x LPT; with SPP/EPP/ECP supported 1 x IrDA |
| SATA | 1 x SATA-150 |
| Hardware Monitoring | Support CPU/System temperature, CPU/System voltage, and CPU/System Fan features |
| Ethernet | * 1st port as 10/100Mbps supports with Realtek RTL8100C (optional for 10/100/1000Mbps with Realtek RTL8110S) * 2nd port as 10/100Mbps supports Wake-on-LAN, RPL/PXE Boot ROM with Realtek RTL8139DL (optional for 10/100/1000Mbps with Realtek RTL8110SC) |
| Audio | AC'97 Codec audio as MIC-in/Line-out/Speaker-out with VIA VT1612A |
| USB | 4 x USB 2.0; via box-header for wiring solution |
| Digital I/O | 4 channel IN and 4 channel OUT |
Weergave
| Chipset | Integrated in VIA Luke |
| Memory Size | Max. up to 64MB frame buffer sharing system memory |
| Resolution | * Single Display Mode: VGA: up to 1920 x 1440 @ 60 Hz 1st LVDS LCD: 18-bit single/dual channel up to 1600 x 1200 * Dual Display Mode: VGA: up to 1024 x 768 2nd LVDS: 1024 x 768 |
| Output Interface | * VGA with D-sub 15-pin connector * 1st LVDS LCD with 40-pin connector * Optional 2nd LVDS LCD with 40-pin connector |
