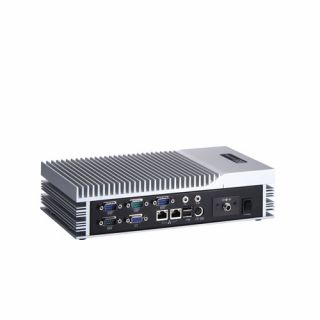

Axiomtek eBOX630-821-FL
Levertijd:
Uit voorraad leverbaar
SKU
eBOX630-821-FL
Fanless Embedded System with Intel® Pentium® M Processor up to 2.0 GHz
● Supports socket 478 for Intel Pentium M or Celeron® M processor up to 2.0 GHz
● Intel® 915GME/910GMLE+ICH6M chipset
● High performance with full feature I/O
● Supports 4 USB 2.0 ports and 4 COM ports
● Supports dual 10/100/1000Mbps Ethernet ports
● Supports 1 DVI-D port (optional)
● One 2.5" SATA HDD drive bay
The Axiomtek Embedded Computer eBOX630-821-FL features dual display ports (optional) and supports a superior socket 478 Intel® Pentium® M (up to 2.0 GHz/2MB) / Celeron® M (up to 1. 5 GHz/1MB) processor or an onboard ultra low voltage Intel® Celeron® M up to 600 MHz/512KB processor. The Axiomtek Embedded Computer eBOX630-821-FL has excellent graphics performance, multiple I/O connections, and dual Gigabit Ethernet ports. This compact size rugged embedded system is a fanless, powerful all-in-one, high performance, and rich video connection box PC especially suitable for industrial automation, digital signage (DSA), and vehicle applications.
Meer informatie
Art.nr.
eBOX630-821-FL
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Standard Color
Silver-Black
Construction
Aluminum extrusion and heavy-duty steel
CPU
Socket 478 for Intel® Pentium® M/Celeron® M/ULV
Celeron® M 600 MHz/512KB processor
Celeron® M 600 MHz/512KB processor
System Memory
1 x 200-pin DDR2 SODIMM max. up to 1GB
Chipset
Intel® 915GME/910GMLE+ICH6M
BIOS
Phoenix-Award 4Mbit with RPL / PXE LAN Boot ROM
SmartView and customer CMOS backup
SmartView and customer CMOS backup
System I/O Outlet
3 x RS-232 (COM 2/3/4)
1 x RS-232/422/485 (COM 1)
1 x VGA
1 x DVI-D for DVI output (optional)
1 x Audio (Mic-in/Line-out)
1 x PS/2 keyboard/mouse
2 x 10/100/1000Mbps Ethernet
4 x USB 2.0
1 x VDC 12V power input connector
1 x RS-232/422/485 (COM 1)
1 x VGA
1 x DVI-D for DVI output (optional)
1 x Audio (Mic-in/Line-out)
1 x PS/2 keyboard/mouse
2 x 10/100/1000Mbps Ethernet
4 x USB 2.0
1 x VDC 12V power input connector
Watchdog Timer
255 levels, 0~255 sec
Expansion Interface
N/A
Storage
Supports 1 x 2.5" SATA HDD drive bay
supports optional 1 x 2.5" IDE HDD drive bay
supports optional 1 x 2.5" IDE HDD drive bay
System Indicator
1 x green LED for system power-on
1 x orange LED for HDD active
1 x orange LED for HDD active
Power Supply
Screw type AC 60W adapter
Input: AC 90-264V
Output: DC 12V@5A
Input: AC 90-264V
Output: DC 12V@5A
Operating Temperature
0 °C ~ +50 °C (with W.T. HDD)
Storage Temperature
-20 °C ~ +80 °C
Humidity
10%-90%, non-condensing
Grootte
280 x 67 x 150mm (W x H x D)
Weight (net/gross)
2.5 kg /4.5 kg
Certification
CE
EOS Support
XPE, WinCE, Linux
Warranty
2 Years
