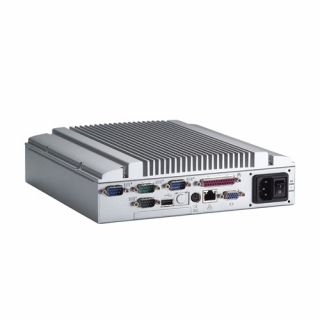

Axiomtek eBOX746A-FL

Levertijd:
Uit voorraad leverbaar
SKU
eBOX746A-FL

Fanless Embedded System with VIA Processor up to 1.5 GHz

● Fanless operation
● Onboard VIA Eden/C7 processor up to 1.5 GHz
● VIA CX700M chipset
● High performance with extremely low power
● Full feature I/O
● Supports CompactFlash™
● One 2.5" IDE HDD drive bay
● 70 watt AC-in or DC-in power supply

The Axiomtek Embedded Computer eBOX746A-FL supports VIA Eden/C7 processor up to 1.5 GHz onboard and full feature I/O such as four COM ports, printer port, dual fast Ethernet, CompactFlash™ Type II socket, VGA, and three high speed USB 2.0 ports. With a wide range operating temperature (-10 °C ~ +55 °C) support and built-in 70 watt AC-in/DC-in power supply, the Axiomtek Embedded Computer eBOX746A-FL is an ideal for heavy-duty industry, high performance embedded controller, and I/O communication applications. To enhance the computing power and TCO, this rugged embedded box computer also supports DDR2 533 MHz SODIMM up to 1GB capacity. Available with low power consumption, light mechanical design, rich I/O connections, and 2D/3D graphic function, the Axiomtek Embedded Computer eBOX746A-FL is fit for high performance embedded controller, rugged environments, and I/O communication applications.

Meer informatie
Art.nr.
eBOX746A-FL
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Standard Color
Silver
Construction
Aluminum extrusion and heary-duty cold-rolled steel
CPU
VIA Eden 1 GHz/VIA C7 1.5 GHz
System Memory
1 x 200-pin DDR2 SODIMM max. up to 1GB
Chipset
VIA CX700M
BIOS
Phoenix-Award 4Mbit with RPL/PXE LAN Boot ROM, SmartView and Customer CMOS backup
System I/O Outlet
3 x RS-232 (COM 2/3/4)
1 x RS-232/422/485 (COM 1)
1 x VGA
1 x LPT
1 x PS/2 keyboard/mouse
1 x 10/100Mbps Ethernet
3 x USB 2.0
1 x VDC power input terminal block (DC version)
1 x VAC power input connector (AC version)
Watchdog Timer
255 levels, 0~255 sec
Expansion Interface
N/A
Storage
Supports 1 x 2.5" SATA HDD drive bay
Supports 1 x CompactFlash™
System Indicator
1 x green LED for system power-on
1 x orange LED for HDD active
Power Supply
* AC AT 72
Input: 85-270VAC
Output: +5V@10A, [email protected], [email protected]

* DC AT 72W
Input: 18-36VDC
Output: +5V@10A, [email protected], [email protected]

* DC AT 72W
Input: 36-72VDC
Output: +5V@10A, [email protected], [email protected]
Operating Temperature
-10 °C ~ +55 °C (with W.T. CF, Eden 1 GHz) -10 °C ~ +50 °C (with W.T. HDD, Eden 1 GHz)
Storage Temperature
-20 °C ~ +80 °C
Humidity
10%-90%, non-condensing
Grootte
225 x 63 x 225mm (W x H x D)
Weight (net/gross)
2.65 kg /4.2 kg
Certification
CE
EOS Support
XPE, WinCE, Linux
Warranty
2 Years
