Axiomtek NANO840

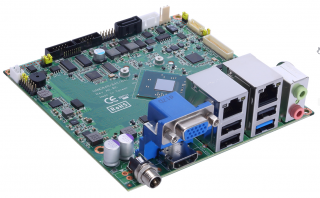

Intel® Atom™ Processor E3845/E3827 Nano-ITX SBC with LVDS/ VGA/HDMI, Dual LANs and Audio
● Intel® Atom™ processor E3845 (1.91GHz)/E3827 (1.75GHz)
● 1 DDR3L SO-DIMM supports up to 8 GB memory capacity
● 5 USB 2.0 ports and 1 USB3.0 port
● 2 COM ports
● 2 PCI Express Mini Cards
The NANO840 NANO-ITX board supports Intel® Atom™ processor E3845 or E3827 with one DDR3L 1066/1333 up to 8 GB memory. The NANO840 is capable of operating under wide temperatures from -40°C to +80°C in fanless operation which is designed for working in harsh environments.
It comes with multiple display outputs: HDMI, LVDS and VGA with visual experiences enhanced for dual-view supported.
Moreover, this small form factor embedded board requires +12V DC power input. The NANO840 is ideal for applications requiring a power-optimized and rich-I/O platform, such as high-end medical imaging, digital signage, kiosks/POI, thin clients, and gaming machines.
| CPU |
Intel® Atom™ processor E3845 1.91GHz quad core, E3827 1.75GHz dual core onboard |
| System Memory | 1 x 204-pin DDR3L-1066/1333 SO-DIMM max. up to 8GB |
| Chipset |
SoC integrated |
| BIOS | AMI BIOS |
| SSD | mSATA |
| Watchdog Timer | 255 levels, 1~255 sec |
| Expansion Interface | 1 x Full-Size Mini PCI Express Mini Card w/mSATA supported 1 x Half-Size Mini PCI Express Mini Card |
| Battery | Lithium 3V/220mAH |
| Power Input | DC power jack connector+12V DC-in only AT Auto Power ON function supported |
| Power Requirement | Intel® Atom™ E3845 @1.91 GHz 8GB DDR3L Max. RMS: +12V @ 0.9A Intel® Atom™ E3827 @1.75 GHz 8GB DDR3L Max. RMS: +12V @ 0.8A |
| Size | 120 x 120 mm |
| Board Thickness | 1.6 mm |
| Operation Temperature | -40°C ~ +80°C |
| Humidity | 10% ~ 95% relative humidity, non-condensing |
| MIO | 1 x RS-232/422/485; with +5V/+12V powered 1 x RS-232 |
| SATA | 1 x SATA-300 |
| Hardware Monitoring |
Detect CPU/system temperature and voltage |
| Ethernet | 2 ports 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM with Intel® i210IT |
| Audio |
HD Codec audio as MIC-in/Line-out with Realtek ALC662 |
| USB | 5 x USB 2.0 1 x USB 3.0 |
| SMBus | System Management Bus for advanced monitoring/control |
| Digital I/O | 8 channels IN/OUT programmable |
| TPM | ST ST33TPM12LPC with TPM 1.2 compliant |
| Chipset | Intel® HD Graphics |
| Memory Size | Share system memory |
| Display Interface | 1 x VGA 1 x LVDS; 18/24-bit single/dual channel 1 x HDMI |
