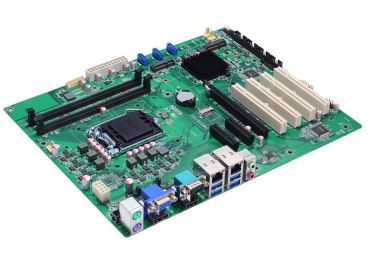

Axiomtek ATX Motherboard IMB502
ATX Industrial Motherboard with LGA1151 Socket 6th/7th Gen Intel® Core™ Processor, Intel® Q170, DDR4, USB 3.0, SATA 3.0, Dual LANs, VGA/DVI-D/HDMI
● LGA1151 socket 6th/7th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Skylake/Kaby Lake)
● 4 DDR4- 2133/1866 288-pin DIMM, up to 64GB
● VGA, DVI-D, and HDMI with triple-view supported
● 5 SATA-600 RAID 0/1/5/10
● 6 USB 3.0 and 7 USB 2.0 ports
The IMB502 is powered by the LGA1151 socket 7th/6th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processors with Intel® Q170 chipset. The IMB502 utilizes two high bandwidth 288-pin DDR4-2133/1866 with system memory up to 64GB to meet the needs for high memory capacity and high data transfer speed. The upcoming industrial-grade ATX motherboard offers long-term support and upgradeability that can ensure the best performance and lifespan for its extended industrial computer system. To allow flexible and rapid development of custom functions, the industrial-grade ATX motherboard comes with rich expansion options including one PCIe x16 slot, three PCIe x4 slots, three PCI slots. The ATX mainboard is suitable for industrial automation, factory automation, advanced communication, gaming, entertainment, POS/kiosk, surveillance, medical, just to name a few.
| CPU | LGA1151 socket 7th/6th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor |
| System Memory | 4 x 288-pin DIMM DDR4-2133/1866, up to 64GB |
| Chipset | Intel® Q170 |
| BIOS | AMI |
| SSD | N/A |
| Watchdog Timer | 255 levels, 1~255 sec. |
| Expansion Interface | 1 x PCIe x16 3 x PCIe x4 3 x PCI |
| Battery | Lithium 3 V/220 mAH |
| Power Requirements | TBD |
| Size | 305 x 244mm |
| Board Thickness | 1.6mm |
| Temperature | 0°C ~ +60°C, operation |
| Operation Humidity | 10% ~ 95% relative humidity, non-condensing |
| MIO | 1 x PS/2 keyboard 5x RS-232 (Internal box header) 1x RS-232/422/485 |
| SATA | 5 x SATA-600 with RAID 0/1/5/10 1 x mSATA (optional) |
| Hardware Monitoring | Detect CPU/system temperature, voltage and supports Smart fan control |
| Ethernet | 1 x 10/100/1000 Mbps (iAMT, Intel® i219LM) 1 x 10/100/1000 Mbps (Intel® i210) |
| Audio | MIC-in/Line-in/Line-out |
| USB | 6 x USB 3.0 (4 ports on rear I/O; 2 ports on internal box header) 7 x USB 2.0 (2 ports on rear I/O; 4 ports on internal pin header; 1 port USB Type A connector |
| TPM | N/A |
| SMBus | System Management Bus for advanced monitoring/control |
| Digital I/O | 8 channels programmable |
| Display Chipset | Intel® HD Graphics |
| Memory Size | Share system memory |
| Display Interface | 1 x DVI-D 1 x HDMI 1 x VGA  |
