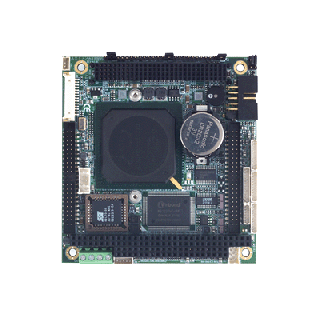

Axiomtek PC/104 Module AX12260

Levertijd:
2~4 Weken
SKU
AX12260VEA-500

AMD LX PC/104 CPU Module with VGA/LCD, USB DoM and PC/104-Plus Expansion



● Low power fanless AMD LX800 processor
● AMD LX+CS5536AD + ITE8888G chipset
● 4 USB 2.0 ports for high speed peripherals & DoM
● PC/104-Plus slot for 16-bit ISA, 1 x 32-bit PCI expansion
● +5V only power input supported



The ultra low power consumption PC/104+ embedded CPU board, the Axiomtek PC/104 Module AX12260, is an entry-level core engine with integrated graphics, standalone capability and flexible I/O options that developers require. With its PC/104+ interface, the Axiomtek PC/104 Module AX12260 provides the use of a high speed PCI bus (32-bit) in most embedded applications. By built-in AMX LX800 core logic controller with integrated graphics and inherent ruggedness, it also provides a high reliability environment for users.

Meer informatie
Art.nr.
AX12260VEA-500
Fabrikant
Axiomtek
Land van herkomst
Taiwan, Province of China
Specifications
System
CPU AMD LX800 processor onboard
System Memory 1 x 200-pin SO-DIMM supports DDR-333/400 max up to 1GB
Chipset AMD LX800 + CS5536AD
BIOS Phoenix-Award
SSD 1 x USB DoM
Watchdog Timer 255 levels, 1~255 sec.
Expansion Interface 1 x PCI-104 for 32-bit PCI supports 3 bus masters
1 x PC/104 for 16-bit ISA bus
Battery Lithium 3V/220 mAH

I/O
MIO 1 x IDE; PATA-100
1 x PS/2 keyboard & mouse
1 x PS/2 mouse
2 x RS-232
SATA N/A
Hardware Monitoring Detect CPU/system temperature and voltage
Ethernet 1 port as 10/100Mbps supports Wake-on-LAN, RPL/PXE Boot ROM with Realtek RTL8139DL
Audio AC'97 Codec audio as MIC-in/Line-in/Line-out/speaker-out with Realtek ALC203
USB 4 x USB 2.0 ports
SMBus System Management Bus for advanced monitoring/control
Digital I/O 8 channels IN/OUT programmable

Display
Chipset
AMD LX intergrated
Memory Size 8 channels IN/OUT programmable
Display Interface 1 x VGA
1 x TTL LCD; Max up to 24-bit
Physical / Environmental
Size 96 x 90 mm
Operation Temperature Standard: 0°C ~ 60°C
Optional: -40°C ~ +85°C
Operation Humidity 10% ~ 95% relative humidity, non-condensing
