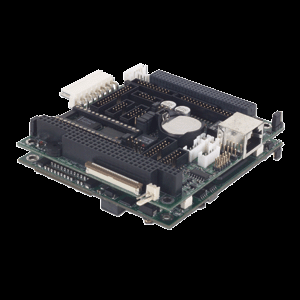

Axiomtek PC/104 Module AX12204
Levertijd:
Niet meer leverbaar
SKU
AX12204VEA

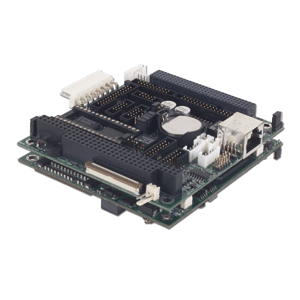

Intel® Pentium® M PC/104 CPU Module with Intel® 852GM+ICH4 Chipset, DualView, LAN and PC/104-Plus Expansion
● LV/ULV Intel® Pentium® M/Celeron® M processor with FSB 400 MHz
● Intel® 852GM+ICH4 chipset
● DualView with different content & resolution
● PC/104-Plus slot for 16-bit ISA, 32-bit PCI expansion
Intel® Pentium® M PC/104 CPU Module with Intel® 852GM+ICH4 Chipset, DualView, LAN and PC/104-Plus Expansion.
Meer informatie
Art.nr.
AX12204VEA
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Specifications
| System | |
| CPU | 400MHz FSB LV Intel® Pentium® M 738 1.4 GHz and ULV Celeron® M 600/512kB, 1GHz/ZC & 373 1GHz/512KB processor with FSB 400MHz |
| System Memory | 1 x 200-pin DDR-333/400 SODIMM max. up to 1GB |
| Chipset | Intel® 852GM+ICH4 |
| BIOS | Phoenix-Award 4Mbit with RPL/PXE LAN Boot ROM, SmartView and customer CMOS backup |
| SSD | 1 x DiskOnChip® |
| Watchdog Timer | 64 levels, 0.5~1600 sec. |
| Expansion Interface | 1 x PCI-104 for 32-bit PCI expansion 1 x PC/104 for 16-bit ISA |
| Battery | Lithium 3V/196 mAH |
| I/O | |
| MIO | 1 x IDE; PATA-100 1 x FDD 1 x PS/2 keyboard/mouse 1 x RS-232 (COM 2) 1 x RS-232/422/485 (COM 1) 1 x LPT; with SPP/EPP/ECP supported 1 x IrDA |
| SATA | N/A |
| Hardware Monitoring | Support CPU/system temperature, CPU/system voltage, and CPU/system Fan features |
| Ethernet | 1 port as 10/100Mbps supports Wake-on-LAN, RPL/PXE Boot ROMwith Realtek RTL8139DL |
| Audio | AC'97 Codec audio as MIC-in/Line-in/ Line-out/Speaker-out with VIA VT1612A |
| USB | 2 x USB 2.0; via wafer connector for wiring solution |
| SMBus | N/A |
| Digital I/O | 8 channel IN and 8 channel OUT |
| Display | |
| Chipset |
Integrated in Intel® 852GM GMCH |
| Memory Size | Max. up to 64MB frame buffer sharing system memory |
| Resolution | * VGA: up to 1920 x 1440 * LVDS LCD: 18-bit single/dual channel up to 1400 x 1050 |
| Output Interface | * VGA with 16-pin box header * TTL LCD via 44-pin 2.0 pitch box-header for maximum 24-bit output * LVDS LCD with 30-pin connector for maximum 18-bit output |
Physical / Environmental
| Size | 96 x 90 mm |
| Temperature | Standard: 0°C ~ 60°C, operation |
| Operation Humidity | 10% ~ 95% relative humidity, non-condensing |
