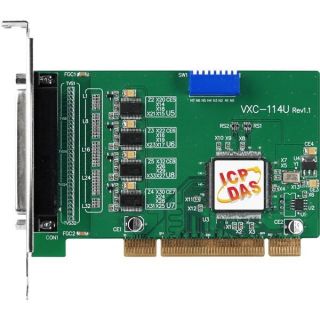

ICPDAS VXC-114U
Levertijd:
2~7 dagen
SKU
VXC-114U
Universal PCI, Serial Communication Board with 4 RS-232 ports
● Provides 4 RS-232 ports
● 128-byte Hardware FIFO for Each Port
● Built-in COM-Selector
● 128 KB Software Buffer (max.) for each COM Port under Windows
● Short Card Design
● Supports 3.3 V/5 V PCI bus, Plug and Play
The VXC-114 series card provides 4 RS-232 serial ports. It is equipped with a 128-byte hardware FIFO for each port, supports for speed up to 115200 bps and supports full-duplex communication.
Users may specify a COM port number manually by setting DIP switch, or let the driver choose an available number automatically. The driver provides a maximum of 128 KB software FIFO for each COM port under Windows. It's practical for large file transmission.
The serial communication card are designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port.
SOFTWARE:
● Windows NT4/2000 drivers for VXC series.
● Drivers for 32-bit Windows XP/2003/2008/Vista/7
● Drivers for 64-bit Windows XP/2003/2008/Vista/7
APPLICATIONS:
● Industrial Machinery
● Building Automation
● Restaurant Appliances
● Laboratory Equipment & Research
● Industrial Communication
Meer informatie
Art.nr.
VXC-114U
Fabrikant
ICPDAS
Communication Ports
| COM1 ~ COM4 | RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND) |
| UART | 16C950 compatible |
| Baud Rate | 50 ~ 115200 bps |
| Data bit | 5, 6, 7, 8 |
| Stop bit | 1, 1.5, 2 |
| Parity | None, Even, Odd, Mark, Space |
| FIFO | Internal 128 bytes |
| ESD Protection | ±4 kV |
Algemeen
| Bus Type | Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, Plug and Play mechanism |
| COM-Selector | Yes (8-bit DIP switch) |
| Connector | DB-37 (Female) |
| Power Consumption | 120 mA @ 5 V |
| Operating Temperature | 0 °C ~ +50 °C |
| Storage Temperature | -20 °C ~ +70 °C |
| Humidity | 0 ~ 90% RH, non-condensing |
| Dimensions (l x w x d) | 142 x 84 x 22mm |
