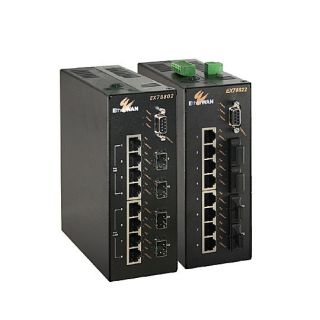

10-port 10/100Base Fast Ethernet Hardened Managed PoE Ethernet Switch with up to 2-port Gigabit
● Complies with IEC61000-6-2 EMC generic standard immunity for industrial environment ● IEEE 802.3af Power over Ethernet (PoE), 8 or 4 ports ● Supports PoE Power Sourcing Equipment (PSE) ● Proprietary "α-ring" support for network redundancy; recovery time <15 ms ● IEEE802.1w RSTP, IEEE802.1S MSTP and IEEE802.1D STP compatible ● P Multicast Filtering through IGMP Snooping V1, V2 & V3 ● Supports port-based VLAN and IEEE802.1Q VLAN ● Tagging and GVRP ● IEEE802.1p QoS with four priority queues ● MAC-based trunking with automatic link fail-over ● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, web browser, and TFTP Management ● Supports IEEE802.1x Security ● Per-port programmable MAC address locking ● Port mirroring ● 8192 MAC addresses and 2 M bits buffer memory ● Redundant power inputs with terminal block and DC jack ● -40 °C ~ +75 °C operating temperature range
EtherWAN’s EX78000 Series provides a Hardened Fully Managed 28-port switching platform combining high performance switching backbone with robust and secure management features required for mission critical and harsh environments where sustained connectivity is crucial.
The EX78000 Series is equipped with twenty-four 10/100BASE Fast Ethernet ports, in combination with up to four Gigabit, Fixed Fiber, or SFP Combo port options. Mountable on a 1U rack, the EX77000 Series is equipped with EtherWAN’s Alpha-Ring self-healing technology, providing less than 15ms fault recovery time making it ideal for applications intolerant to interruption.
Users are able to access management features such as port security, IGMP snooping, VLANs, GARP protocols, LACP, and via web browser, Telnet, SNMP, RMON, TFTP, and RS-232 console interfaces.
14,880pps for 10Mbps
148,810pps for 100Mbps
1,488,100pps for 1000Mbps
Packet Buffer Memory
2M bits
Processing Type
Store-and-Forward
Type Half-duplex back-pressure and IEEE802.3x full-duplex flow control
Address Table Size
8192 MAC addresses
Power
Input
Input voltage: 48VDC (terminal block; DC jack)
Power Consumption
15W Max.
Overload Current Protection
Present
Reverse Polarity Protection
Present
Fiber Interface
Ethernet Port
10/100Base-TX (PoE): 8 or 4 ports
100Base-FX: 0 or 2 ports
Gigabit: 0, 1 or 2 ports
Console Port
Port: One DB9 RS-232 port
LED Indicators
Per unit: power status (power 1, power 2, power 3)
Per port: poE (amber) for 10/100TX,
10/100TX, 100FX: link/activity (green),
Gigabit: link/activity (green)
Mechanical
Case
Metal case
IP 30
Dimensions (w x h x d)
65 x 145 x 165mm
Installation
Rack mounting
Environmental
Operating Temperature
-40 °C ~ +75 °C
Tested @ -40 °C ~ +85 °C
Storage Temperature
-45 °C ~ +85 °C
Humidity
5% to 95% (non-condensing)
Approvals
ISO
Manufactured in an ISO9001 facility
Safety
UL 508, EN60950-1, IEC60950-1
EMI
FCC Part 15, Class A
EN61000-6-3
EN55022
EN61000-3-2
EN61000-3-3
EMS
EN61000-6-2
- EN61000-4-2 (ESD standards)
Contact: ±6 KV; criteria B
Air: ±8 KV; criteria B
- EN61000-4-3 (radiated RFI standards)
10 V/m, 80 to 1000 MHz; 80% AM criteria A
- EN61000-4-4 (burst standards)
Signal ports: ±4 KV; criteria B
D.C. power ports: + / - 4 KV; criteria B
- EN61000-4-5 (surge standards)
Signal ports: ±1 KV; line-to-line; criteria B
D.C. power ports: ±0.5 KV; line-to-earth;
criteria B
- EN61000-4-6 (induced RFI standards)
Signal ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM
criteria A
D.C. power ports: 10 Vrms @ 0.15 ~ 80 MHz;
80% AM criteria A
- EN61000-4-8 (magnetic field standards)
30 A/m @ 50, 60 Hz; criteria A
Environmental Test Compliance
* IEC60068-2-6 Fc (vibration resistance)
Test 5 g @ 10~150 KHz, amplitude 0.35 mm
Compliance (operation/storage/transport)
* IEC60068-2-27 Ea (shock)
25 g @ 11 ms (half-sine shock pulse; operation)
50 g @ 11 ms (half-sine shock pulse;
storage/transport)
* IEC60068-2-32 Ed (free fall)
1 M (3.281 ft.)
