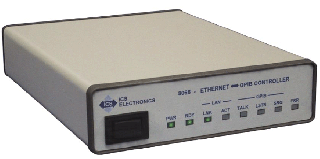

ICS LAN GPIB Controller 8065

Levertijd:
2~4 Weken
SKU
8065

Ethernet-to-GPIB Gateway

● Remote control of GPIB instruments via the Internet or in-house network. Control GPIB and HP-IB Devices anywhere there is a network connection.
● Runs from any VXI-11 compliant VISA library. Use VEE, LabVIEW, C, and Visual Basic programs with VISA or SICL calls.
● Easily controlled by RPC calls over TCP/IP. Adds GPIB Controller capability to Unix, Linux, SunOS and similar operating systems.
● Does not require special drivers for each operating system. Eliminates driver problems.
● Includes ICS's VXI-11. Keyboard Controller program for interactive control of GPIB devices. Lets you control instruments without writing a program.
● Handles multiple clients. Shares equipment among multiple users.
● Internal WebServer with network setup pages. Change network settings with any web browser.


ICS LAN GPIB Controller 8065 controls the GPIB bus from your PC's Ethernet port, over the company network or over the Internet. VXI-11 GPIB Gateway for operation with Agilent's and National Instruments' VISA and LabVIEW. Uses RPC protocol for easy control from Linux/Unix/Sun OS and all Unix like systems that need a LAN GPIB Gateway Controller. SourceForge Java project demonstrates the ICS LAN GPIB Controller 8065's use on any Java capable operating system. Internal WebServer for easy network setup. Includes ICS's VXI-11 Keyboard Controller program.

Meer informatie
Art.nr.
8065
Fabrikant
ICS Electronics
Land van herkomst
Verenigde Staten
GPIB Capabilities
IEEE 488.1 Capabilities
The 8065 meets IEEE-STD-488.1 with the following capabilities:
AH1, SH1, C1, C2, C3, C4, and C9 E2 Drivers incorporate power up/down protection and drive 14 devices.
IEEE 488.2 Compatible Runs all required 488.2 controller protocols and includes bus signal line monitoring.
488 Bus Performance
Long term GPIB transfer rates are limited by the LAN data transfer rate, the Client-computer performance and the GPIB device. Short term 8065 data rates are:
GPIB to 8065 > 125 kbytes/s
8065 to GPIB > 180 kbytes/s
GPIB Drivers 14 loads or devices
Device Address 64 addresses-any combination of primary or primary and secondary addresses.
8065 address 0 to 30 [0]
VXI-11 Capabilities
Fully VXI-11.2 and VXI-11.3 compliant
VXI-11.2 Interface Control
VXI-11.3 Device Control
Clients 1 to 15
Channel Types Data, Abort and Interrupt
Instrument Links 64 max.
RPC Protocol
Conforms to ONC RPC v2
Ethernet Interface
Type IEEE 802.3 compliant
Speeds
10BaseT (10 Mb/s)
100BaseT(100 Mb/s)
IP Address Static or DHCP
Factory Setting 192.168.0.254 static
Interface Name any [gpib0]
Internal Webserver
The internal WebServer provides HTML web pages for viewing and setting the 8065's network and GPIB bus settings.
System Requirements
Computer with an IEEE 802.3 LAN interface. Requires RPC support or a VXI-11 compliant VISA layer installed.
Supported Software
The 8065 supports the following application and program languages:

NI LabVIEW (5.1 thru 8.6)
Agilent VEE - IO Libraries 14.2 and later
MathWorks MathLab
Visual Basic 6.0*
Visual Basic .NET (2005)*
Visual C, C++ and C#*
Java*

Note: *with VISA or RPC calls

Safety
EN 61000-6-4:2001, EN 61000-6-2:2001, EN 55024:1998, and EN 55022:1998.
Controls and Indicators
Controls
Power Front-panel switch
LAN Reset Rear-panel push-button
Indicators
PWR Power on
LNK Unit connected to an active LAN
ACT Transferring messages to/from the network
RDY Unit has passed self test
TALK Unit is addressed to talk
LSTN Unit is addressed to listen
SRQ SRQ asserted on GPIB bus
ERR Unit has detected a soft error
Grootte
189.2 x 141.5 x 38.6mm (L x W x H)
Connectors and Headers
GPIB GPIB 24-pin ribbon with metric studs
Ethernet RJ-45
Omgeving
Operating Temperature -10 °C ~ +65 °C
Storage Temperature -40 °C to +70 °C
Humidity 0-90% RH non-condensing
Power
9 to 32 Vdc @ 4 VA
Mechanical
Construction RoHS Compliant
Shock/Vibration Normal handling
Included Accessories
Instruction Manual
CD-ROM with VXI-11 Keyboard Controller program and Configuration Utility
LAN Crossover Cable
UL/CSA/VDE approved AC power Adapters
