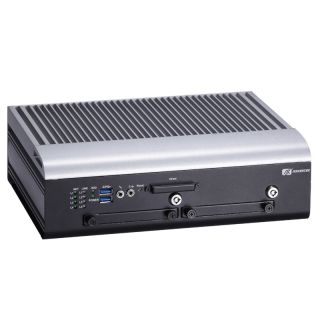

Axiomtek tBOX330-870-FL
Fanless Embedded System with 3rd Generation Intel® Core™ Processor and Intel® QM77 for Marine PC
● 3rd Generation Intel® Core™ i7 up to 2.8 GHz or Intel® Core™ i3 1.6 GHz processor onboard
● IEC60945 certificate
● Intel® QM77 PCH
● High performance DDR3-1600 4 GB memory onboard
● Fanless operation
● Operating temperature range of -40XC ~ +70XC
● Isolated RS-232/422/485, CAN bus and DIO
● Support USB 3.0 and SATA3
● 2 removable & lockable 2.5 SATA HDD and 1 CFast™
● 3 internal PCI Express Mini Card slot and 1 SIM slot
● Comply to fire protection of railway vehicles Europe standard PrCEN TS 45545-2
The tBOX330-870-FL IEC60945 certified marine box PC is equipped with an onboard high performance Intel® Core™ i7 processor and onboard 4 GB DDR3-1600 memory to eliminate risk of harm caused by vibration and shock, and is designed with components rated for high temperature and high humidity. Its aluminum extrusion and heavy-duty steel chassis can provide strong and solid construction, and the IP40-rated dust-proof enclosure enables it to operate reliable in harsh environments with a wide temperature ranging from -40°C to +70°C. The professional and rugged marine embedded PC, tBOX330-870-FL, is well suited for marine applications in recreational boats, large sea-going tankers, watercraft, and ferry boats. Additionally, the robust marine box PC comes with a full range of I/O connectivity, such as four Gigabit Ethernet ports, three isolated COM ports, one isolated DI/DO port, one isolated CAN bus, two USB 2.0, two USB 3.0, four audio, one VGA, one DVI-D, one VDC power input, one remote power switch, one reset switch, two 2.5” SATA drive trays, one CFast™ socket and four antenna opening.
4 x 10/100/1000Mbps
3 x isolated RS-232/422/485
1 x isolated CAN Bus
1 x isolated DI/DO (4-IN/4-OUT)
2 x USB 2.0 (rear side)
2 x USB 3.0 (front side)
1 x Audio (Mic-in/Line-out) (screw type)
1 x VGA
1 x DVI-D
1 x VDC power input connector
1 x reset switch
1 x power switch
4 x antenna opening
1 x green LED for system power on
1 x blue LED for HDD active
1 x green LED for LAN1 link
1 x green/yellow LED for LAN 1 speed
1 x green LED for LAN2 link
1 x green/yellow LED for LAN 2 speed
1 x green LED for LAN3 link
1 x green/yellow LED for LAN 3 speed
1 x green LED for LAN4 link
1 x green/yellow LED for LAN 4 speed
-40°C ~ +70°C (-40°C ~ +158°C) W/T SSD
-25°C ~ +55°C (-13°C ~ +131°C) W/T HDD
