Axiomtek Panel PC GOT3156T-834
Levertijd:
3~4 weken
SKU
GOT3156T-834

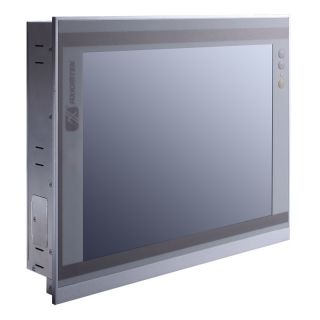

15" XGA TFT Fanless Touch Panel Computer with Intel® Atom™ Processor E3827 (-20°C ~ +55°C)
● 15" XGA (1024 x 768) color TFT LCD display
● Fanless cooling system with Intel® Atom™ E3827 1.75GHz
● Supports wide temperature range of -20°C ~ +55°C
● Supports 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 4 COM ports
● Supports WLAN/3G module and antenna (optional)
● 9~36VDC wide voltage and over current protection
● Easy for expansion: Mini Card
● Supports 2.5” SATA HDD & CFast™ or mSATA
● Supports panel mount and optional VESA arm, desktop stand, wall mount
● Adjust RS-232/422/485 setting via BIOS
The GOT3156T-834 adopts a 15-inch XGA TFT LCD with 400nits brightness and an Intel® Atom™ processor E3827 (1M Cache, 1.75 GHz) to provide excellent computing performance and thermal resistance. This fanless platform is especially designed for operating under heavy-duty environment including steel refinery, oil pipe, machine maker operating systems and many more. Having below abilities makes GOT3156T-834 surely a most robust and cost-effective solution.
Wide-temperature (-20°C ~ +55°C) supported
The 15-inch industrial panel PC adopts unique extended temperature technology, with a temperature range from -20°C ~ +55°C, with fanless cooling system and compact design for harsh environment.
High brightness: 400 nits
The industrial grade GOT3156T-832 adopts a high brightness 15-inch LCD, 400 nits, with sunlight readable technology. The screen is legible even under strong sunlight and is readable under skies outdoor in parking lots and more.
WLAN/3G module & antenna supported (optional)
The GOT3156T-834 provides dual Mini card slots and WLAN/3G antenna for wireless network connections. By simply plugging in the WLAN/3G module, customers can use the unit in a wireless environment.
Anti-vibration up to 1.3G
With a unique anti-vibration design patent, the rugged HMI can work well under 1.3G (10~500Hz) in operation mode and equipped with a 2.5 HDD.
Meer informatie
Art.nr.
GOT3156T-834
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Front Bezel
IP65, NEMA 4 rugged protection, aluminum front bezel
LCD Panel
| Display Type | 15" XGA TFT LCD |
| Brightness (cd/m2 ) | 400 nits |
| Resolution | 1024 x 768 |
Main System
| CPU | Intel® Atom™ processor E3827 1.75GHz (Bay Trail) |
| Chipset | Onboard |
| System Memory | 1 x 204-pin DDR3L 1333/1600 MHz SO-DIMM up to 8 GB |
BIOS
AMI UEFI BIOS
Storage
1 x 2.5" SATA /SSDHDD
1 x CompactFlash™ 1 x mSATA
1 x CompactFlash™ 1 x mSATA
Watchdog Timer
255 levels, 0~255 sec.
Onboard Graphics
Integrated in Intel® GFX
I/O Connector
4 x RS-232/422/485 (COM 1/2/3/4)
1 x VGA
1 x Audio (Line-out)
2 x USB3.0
2 x USB2.0
2 x 10/100/1000Mbps Ethernet
1 x VGA
1 x Audio (Line-out)
2 x USB3.0
2 x USB2.0
2 x 10/100/1000Mbps Ethernet
Expansion Interface
2 x PCIe Mini Card
Touchscreen
Resistive type
Power Supply
9~36V DC with power protection
Grootte
377.9 mm (W) x 60.7 mm (D) x 309.3 mm
Weight (net/gross)
4.2 kg / 6.8 kg
Environmental
Operating temperature:
-20°C ~ +55°C
(with W.T. DRAM/HDD/CF)
Storage Temperature:
-30°C ~ +80°C
Relative humidity:
20% ~ 90% @ 40°C non-condensing
Operation vibration:
1.3G, 10 ~ 500Hz, random for 2.5" HDD
2G , 10 ~ 500Hz, random for CompactFlash™
-20°C ~ +55°C
(with W.T. DRAM/HDD/CF)
Storage Temperature:
-30°C ~ +80°C
Relative humidity:
20% ~ 90% @ 40°C non-condensing
Operation vibration:
1.3G, 10 ~ 500Hz, random for 2.5" HDD
2G , 10 ~ 500Hz, random for CompactFlash™
Certification
CE
Operating System
Windows® 7
Windows 7 Embedded
Windows® 8
Windows 8 Embedded
Windows 7 Embedded
Windows® 8
Windows 8 Embedded
