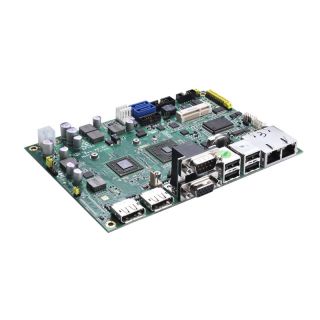

Axiomtek EPIC Board EP100

Levertijd:
3~4 weken
SKU
EP100

AMD G-Series APU EPIC SBC with AMD A50M FCH, Dual DisplayPort/VGA/LVDS, Dual LANs and Audio

● AMD G-Series APU T40R (1.0 GHz)/ T56N (1.65 GHz)
● AMD A50M FCH
● 1 DDR3 SO-DIMM supports up to 4 GB memory capacity
● 6 USB 2.0 ports
● 4 COM ports
● DirectX 11 supported



The EP100 EPIC board, supporting either the AMD G-Series APU dual core T56N with Radeon™ HD 6320 graphics or AMD G-Series APU single core T40R with Radeon™ HD 6250 graphics, combined with the AMD A50M FCH, is ideal for graphics-intensive applications such as high-end medical imaging, digital signage, kiosks/POI, thin clients, and gaming machines. The onboard SO-DIMM socket supports maximum up to 4 GB of DDR3 1333 memory. Integrated AMD HD graphics with DirectX 11 technology, the small foot print embedded board offers stunning 3D visual effects and dynamic interactivity. The EP100 comes with three display outputs with two combinations: two DisplayPort and one VGA or one DisplayPort plus a VGA and 18/24-bit single/dual channel LVDS. Additionally, it provides dual gigabit LAN ports for high-speed wired communication and two PCI Express Mini card expansion interfaces, one with SIM slot, for seamless wireless communication (WiFi + 3/4G).
Meer informatie
Art.nr.
EP100
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Systeem
CPU AMD G-Series APU T40R 1.0 GHz single core or T56N 1.65 GHz dual core onboard
System Memory 1 x 204-pin SO-DIMM supports DDR3-1066/1333 max. up to 4 GB
Chipset AMD A50M FCH
BIOS AMI
SSD 1 x CFast™
Watchdog Timer 255 levels, 1~255 sec.
Expansion Interface 1 x PCI Express Mini Card
1 x PCI Express Mini Card with SIM slot
Battery Lithium 3V/220mAH
Size 165 x 115 mm
Board Thickness 1.6 mm
Operation Temperature

0° ~ +60°C (32°F ~ 140°F), operation

Relative Humidity 10% ~ 95% relative humidity, non-condensing
IO
MIO 1 x RS-232/422/485 (COM 1); with +5V/+12V powered
3 x RS-232 (COM 2/3/4) ; with +5V/+12V powered
SATA 2 x SATA-600
Hardware Monitoring Detect CPU/system temperature, voltage and fan speed
Ethernet 2 ports as 10/100/1000Mbps supports Wake-on-LAN, RPL/PXE Boot ROM with Realtek RTL8111E
Audio HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out with Realtek ALC662
USB 6 x USB 2.0
SMBus System Management Bus for advanced monitoring/control
Digital I/O 8 channels IN/OUT programmable
Weergave
Chipset AMD G-Series APU integrated graphics engine
T56N - Radeon™ HD6320
T40R - Radeon™ HD6250
Memory Size Max. up to 2 GB in 4 GB DDR3 module
Display Interface
1 x VGA + 2 x DisplayPort or
1 x VGA + 1 x DisplayPort + 1 x LVDS; 18/24-bit single/dual channel
