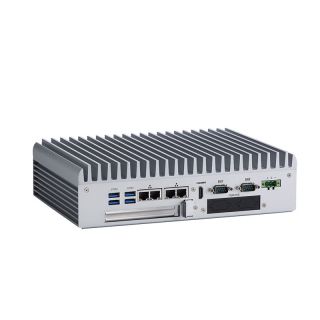

Axiomtek eBOX700-891-FL
Levertijd:
3~4 weken
SKU
eBOX700-891-FL

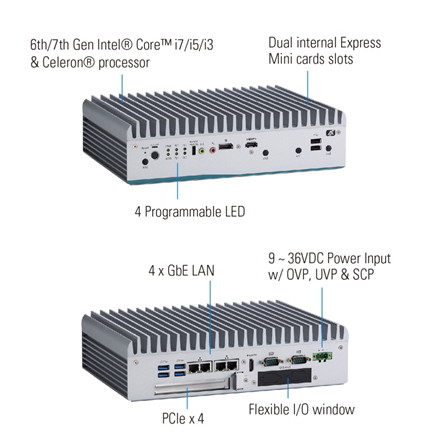

Fanless Embedded System with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, Intel® H110, 2 HDMI ,1 DisplayPort, 4 GbE LANs, 6 USB, 1 PCIe x4 Expansion and 9 ~ 36 VDC
● Fanless operating temperature range from -40°C to +50°C
● 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® processor
● 1 x PCIe x4 expansion slot
● 6 USB ports and 4 GbE LANs
● 2 full-size PCIe Mini Card for WLAN/WWAN/mSATA
The eBOX700-891-FL is an expansion-rich fanless embedded system powered by the 7th generation Intel® Core™ i7/i5/i3 and Celeron® processors (codename: Kaby Lake) with the Intel® H110 chipset. It supports dual DDR4-2133 SO-DIMM slots with up to 32GB system memory.
This embedded box PC comes with a user-friendly mechanism design and offers great flexibility, reliability, and scalability, well suited for vision inspection (USB/PoE), motion control, security surveillance and industrial automation. The eBOX700-891-FL is designed with user friendliness in mind. Its heatsink top cover can simply be opened by unfastening the four screws for the access to the processor and DRAM. Moreover, its bottom cover adopts a convenient flip lid design along with easy-to-access brackets for securing the USB dongle and hard drive.
Axiomtek has obtained patents, No. M511183 and No. M531115, for the special chassis design of the eBOX700-891-FL. Easy maintenance is one of the advantages we are offering to our customers and one of the main focuses of our product development.
Meer informatie
Art.nr.
eBOX700-891-FL
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Documenten
Construction
Aluminum extrusion and heavy-duty steel, IP40
CPU
LGA1151 socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® processor
System Memory
2 x 260-pin SO-DIMM DDR4-2133, up to 32GB
I/O Interface
COM 2 x RS-232/422/485
USB 4 x USB 3.0, 2 x USB 2.0
Ethernet 4 x 10/100/1000 Mbps (Intel® 3 x i210IT, 1 x i219LM)
Display 2 x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b), 1 x DisplayPort
USB 4 x USB 3.0, 2 x USB 2.0
Ethernet 4 x 10/100/1000 Mbps (Intel® 3 x i210IT, 1 x i219LM)
Display 2 x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b), 1 x DisplayPort
Chipset
Intel® H110
BIOS
AMI
Watchdog Timer
255 levels, 1 ~ 255 sec.
Expansion Interface
2 x full-size PCI Express Mini Card slot (USB + PCI Express signal)
1 x PCIe x4 slot
1 x SIM slot
1 x PCIe x4 slot
1 x SIM slot
Storage
1 x 2.5" SSD/HDD
1 x mSATA (optional)
1 x mSATA (optional)
Power Supply
9 - 36V DC
Operating Temperature
-40°C ~ +50°C
Humidity
10% ~ 90% , non-condensing
Vibration Endurance
3 Grms with SSD (5 ~ 500Hz, X, Y, Z directions)
Grootte
280 x 190 x 100 mm
Weight (net/gross)
3.8 kg
Certification
CE, FCC Part 15B Class A
EOS Support
Win10 IoT, Linux
Warranty
2 Years
